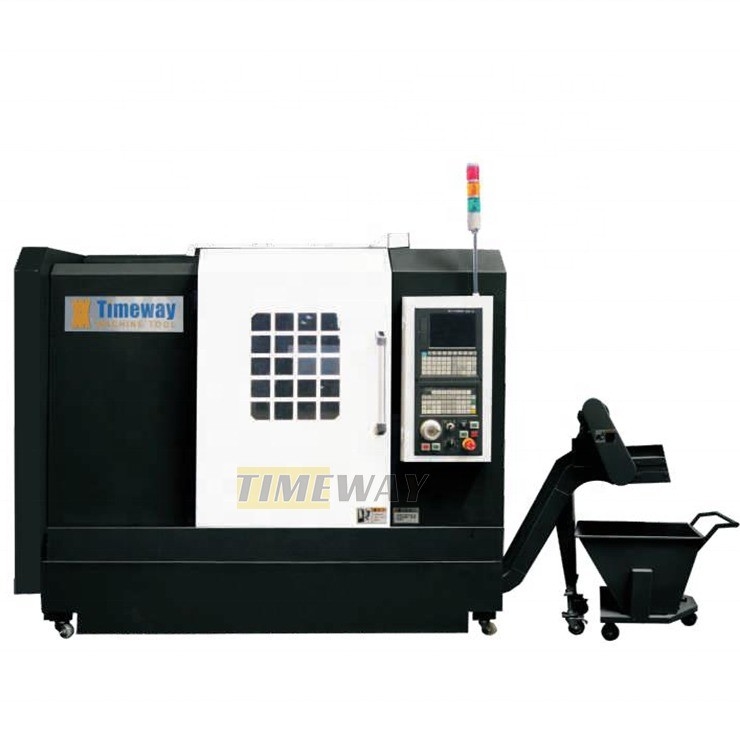

A2-8 Spindle Nose Slant Bed CNC Lathe for Metal Machining in Machinery Repair Shops
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Model Number: | AK-10P/AK-20P/AK-36P/AK-40P |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $25,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 120mm |
|---|---|---|---|
| Structure: | Slant Bed Lathe | Machining Capacity: | Light Duty |
| Width Of Bed (mm): | 500 Mm | Spindle Motor Power(kW): | 1.6 |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 210 Mm | Travel (Z Axis)(mm): | 140 Mm |
| Dimension(L*W*H): | 131x1090x1430 | Voltage: | 220v/380v |
| CNC Control System: | Siemens | Tool Post Stations: | 4 |
| Weight (KG): | 4900 | Warranty: | 1 Year |
| Key Selling Points: | Multifunctional | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Max, Swing Over Bed: | 570 | Max, Swing Over Cross Slide: | 320 |
| Standard Turning Diameter: | 250 | Max.turning Diameter: | 360 |
| Max.turning Length: | 450/750/1350/2000/3000 | Max. Diameter Of Bar: | 74 |
| Spindle Speed: | 2000 | Spindle Nose: | A2-8 |
| Spindle Bore: | 86 | Chuck Size: | 250 |
| Condition: | New | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Energy & Mining |
| Showroom Location: | United States, Viet Nam, Saudi Arabia, India, Thailand, Morocco, Colombia, South Africa, Uzbekistan, Tajikistan, Australia | Marketing Type: | Other |
| Core Components: | Pump, Engine, Gearbox | Max. Turned Length (mm): | 120 |
| Max. Spindle Speed (r.p.m): | 6000 R.p.m | Spindle Bore(mm): | 25 |
| Port: | China Port | ||
Product Description
Products Description
Features:

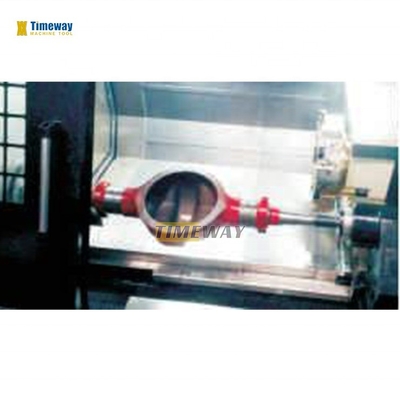

---The CNC lathe has a semi-closed-loop control system that increases productivity through high-speed cutting. It is suitable for machining all kinds of complex shapes of shaft, sleeve, disk parts, such as turning inside and outside cylindrical surface, conical surface,
circular surface, end face, slotted, chamfering, drilling, reaming, especially for multi-species, a small batch of turning processing.
---Easy clamping, process adaptability, high processing efficiency, low scrap rate, good consistency of the finished product, and reducing the technical proficiency requirements of workers, easy programming, simple operation, which makes it is widely selected as the ideal small and medium-sized mechanical processing equipment.
---The machine bed is box-shaped structure casting with the material of tough cast iron (HT300) by one-time molding casting technology, and processed by the imported high-precision pentahedr machining center using one-time clamping processing.
---The unique construction developed using FEA techniques to provide maximum stiffness under the heaviest cutting conditions.

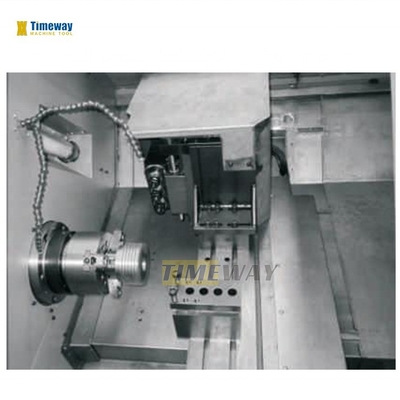

---This machine is electromechanical integrated structure, gang-type turret design, without tailstock, and suitable for processing of various parts.
---The CNC lathe has a semi-closed-loop control system that increases productivity through high-speed cutting. It is suitable for machining all kinds of complex shapes of shaft, sleeve, disk parts, such as turning inside and outside cylindrical surface, conical surface,
circular surface, end face, slotted, chamfering, drilling, reaming, especially for multi-species, a small batch of turning processing.
---Easy clamping, process adaptability, high processing efficiency, low scrap rate, good consistency of the finished product, and reducing the technical proficiency requirements of workers, easy programming, simple operation, which makes it is widely selected as the ideal small and medium-sized mechanical processing equipment.
---The machine bed is box-shaped structure casting with the material of tough cast iron (HT300) by one-time molding casting technology, and processed by the imported high-precision pentahedr machining center using one-time clamping processing.
---The unique construction developed using FEA techniques to provide maximum stiffness under the heaviest cutting conditions.
---This machine is electromechanical integrated structure, gang-type turret design, without tailstock, and suitable for processing of various parts.
---Spindle structure is front fixed and rear floating support, and by using large diameter P4 grade high precision cylindrical roller bearings and high-speed bevel contact ball bearings achieves radial and axial withstand and synthetic load. Spindle motor uses variable frequency motor.
---Ball screw and spindle bearings both are used NSK bearing. Main motor uses high-performance AC frequency motor, stepless speed, spindle box without gear structure, high speed and low noise.

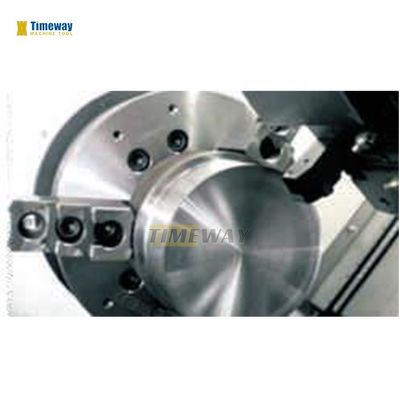

---High quality hydraulic solid chuck and high-speed fuel cylinder, and equipped with foot switch made, it is easier to quickly clamping the workpieces.
---X/Z-axis transmission system uses high-precision ball screw driven by AC motor directly, there are no belt and gear drive, avoided the backlash and vibration generated.
---CNC system uses the internationally renowned FANUC, SIEMENS or China GSK AC servo control system, wide functions and stableperformances.
---This CNC lathe machine has fully enclosed protection, and equipped with emergency stop safety button, when it suddenly encounters a sudden power failure or other failures, as a result of the special design of the control circuit, the machine can be self-protected to ensure the safety of itself and personnel.

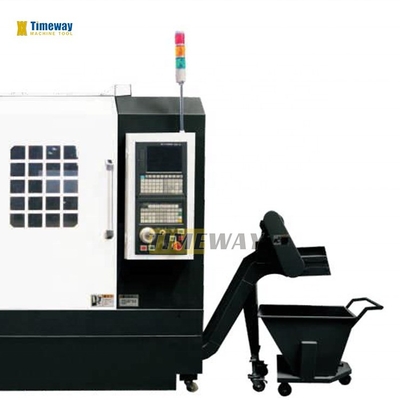

---Automatic central lubrication, coolant system and chain type conveyor extend intervals between maintenance and reduce down-times.
---This CNC lathe machine can be added online detection function; hydraulic clamping force grading automatic adjustment function; In accordance with the special needs of users added automatic bar feeder, automatic doors and other automation peripherals device. series
---Ball screw and spindle bearings both are used NSK bearing. Main motor uses high-performance AC frequency motor, stepless speed, spindle box without gear structure, high speed and low noise.
---High quality hydraulic solid chuck and high-speed fuel cylinder, and equipped with foot switch made, it is easier to quickly clamping the workpieces.
---X/Z-axis transmission system uses high-precision ball screw driven by AC motor directly, there are no belt and gear drive, avoided the backlash and vibration generated.
---CNC system uses the internationally renowned FANUC, SIEMENS or China GSK AC servo control system, wide functions and stableperformances.
---This CNC lathe machine has fully enclosed protection, and equipped with emergency stop safety button, when it suddenly encounters a sudden power failure or other failures, as a result of the special design of the control circuit, the machine can be self-protected to ensure the safety of itself and personnel.
---Automatic central lubrication, coolant system and chain type conveyor extend intervals between maintenance and reduce down-times.
---This CNC lathe machine can be added online detection function; hydraulic clamping force grading automatic adjustment function; In accordance with the special needs of users added automatic bar feeder, automatic doors and other automation peripherals device. series
SPECIFICATION | UNIT | AK-10P | AK-20P | AK-36P | AK-40P | |||
Max.swing over bed | mm | 220 | 500 | 420 | 450 | |||
Max.turning diameter | mm | 100 | 200 | 130 | 180 | |||
Max.diameter of bar | mm | 17 | 42 | 47 | 70 | |||
Max. turning length | mm | 120 | 280 | 370/270 | 350/250 | |||
Cross travel (X) | mm | 210 | 400 | 470 | 470 | |||
Longitudinal travel (Z) | mm | 140 | 285 | 400 | 400 | |||
X-axis rapid feed speed | m/min | 15 | 24 | 12 | 12 | |||
Z-axis rapid feed speed | m/min | 15 | 24 | 12 | 12 | |||
Spindle speed range | rpm | 6000 | 5000 | 4500 | 4500 | |||
Spindle nose | A2-3 | A2-5 | A2-5 | A2-6 | ||||
Spindle bore | mm | 25 | 56 | 62 | 87 | |||
Chuck size | inch | Spring collets | 6° | 6* | 8° | |||
Tool post type | Gang-type | Gang-type | Gang-type | Gang-type | ||||
No. of station | pcs. | 3-6 | 4-8 | 4-8 | 4-8 | |||
Tool section size (turning) | mm | 12x12 | 20x20 | 25x25 | 25x25 | |||
Tool section size (boring) | mm | 12 | 25 | 25 | 25 | |||
Power-driven tool (optional) | Single | Single/Double/Three | Single/Double/Three | Single/Double/Three | ||||
Main motor power | kw | 2.2 | 7.5 | 5.5 | 7.5 | |||
X-axis servo motor power | kw | 1.6 | 1.88 | 2.3 | 2.3 | |||
X-axis motor torque | NM | 6 | 7.5 | 7.5 | 7.5 | |||
Z-axis servo motor power | kw | 1.6 | 1.88 | 2.3 | 2.3 | |||
Z-axis motor torque | NM | 6 | 7.5 | 10 | 10 | |||
Working accuracy | mm | IT6 | IT6 | IT6 | IT6 | |||
Roughness | μm | Ra0.8 | Ra0.8 | Ra0.8 | Ra0.8 | |||
X/Z-axis positioning accuracy | mm | 0.016/0.02 | 0.016/0.02 | 0.016/0.02 | 0.016/0.02 | |||
X/Z-axis reppositioning accuracy | mm | 0.007/0.01 | 0.007/0.01 | 0.007/0.01 | 0.007/0.01 | |||
CNC system | GSK988T | GSK988T | GSK988T | GSK988T | ||||
Machine dimensions (LxWxH) | mm | 1310x1090x1430 | 1870x1500x1600 | 2270x1520x1650 | 3000x1545x1720 | |||
Machine weight | kg | 800 | 2200 | 3100 | 4900 | |||
