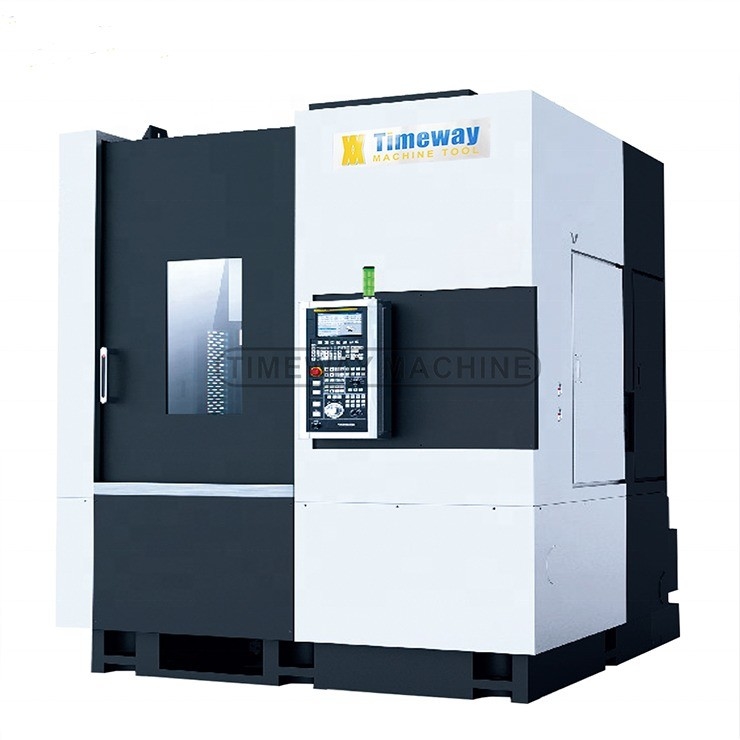

630mm X-axis Tool Post Cross Travel Lathe CNC Controller for Vertical Turning Center
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Model Number: | VTC800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $25,000.00/sets 1-4 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | VERTICAL | Max. Length Of Workpiece (mm): | 800 |
|---|---|---|---|
| Machining Capacity: | Light Duty | Width Of Bed (mm): | 200 Mm |
| Spindle Motor Power(kW): | 22 | No. Of Spindles: | Single |
| Number Of Axes: | 2 | Travel (X Axis)(mm): | 630 Mm |
| Travel (Z Axis)(mm): | 700 Mm | Voltage: | 220V/380V |
| CNC Control System: | FANUC | Tool Post Stations: | 4 |
| Weight (KG): | 6000 | Warranty: | 1 Year |
| Key Selling Points: | Automatic | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Max. Turning Diameter: | 800 | Max.swing Diameter: | 900 |
| Chuck Size: | 15/18/21 | Spindle Speed: | 100-1000 |
| Tool Post Cross Travel (X): | 630 | X/Z-axis Rapid Feed Speed: | 4/6 |
| Tool Post Type: | Gang-type/V4 | Tool Section Size: | 32x32 |
| X/Z-axis Positioning Accuracy: | 0.02 | X/Z-axis Repositioning Accuracy: | 0.012 |
| Condition: | New | Spindle Bore(mm): | 100 |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Retail, Construction Works , Energy & Mining | Showroom Location: | Egypt, Turkey, Romania |
| Marketing Type: | Other | Core Components: | PLC |
| Max. Turned Length (mm): | 800 | Max. Spindle Speed (r.p.m): | 1000 R.p.m |
| Port: | China Port | ||
Product Description
Products Description
GSK , Electric tools turret, Electronic handwheel, Lubrication system, Cooling system, Work lamp, Pilot lamp, Protection guard, Heat exchanger, Leveling blocks & bolts, Tools & tool-box, Operation manuals. | FANUC CNC system, SIEMENS CNC system, Air conditioner, Chain type chip conveyor. |
SPECIFICATION | UNIT | VTC800 |
Max. turning diameter | mm | 800 |
Max.swing diameter | mm | 900 |
Chuck size | 15/18/21 | |
Spindle speed | rpm | 100-1000 |
Tool post cross travel (X) | mm | 630 |
Tool post vertical travel (Z) | mm | 700 |
X/Z-axis feed speed | mm/min | 0.1-1000 |
X/Z-axis rapid feed speed | m/min | 4/6 |
Tool post type | Gang-type/V4 | |
Tool section size | mm | 32x32 |
X/Z-axis positioning accuracy | mm | 0.02 |
X/Z-axis repositioning accuracy | mm | 0.012 |
Main motor power | kw | 18.5/22 |
X-axis feed motor power | kw | 2.3 |
Z-axis feed motor power | kw | 2.3 (brake) |
X/Z-axis feed motor torque | NM | 15 |
Machine weight | kg | 6000 |
Machine Details
1. The series CNC single column vertical lathe is designed by absorbing modern advanced design and manufacturing techniques and using CAD optimization design method, using the latest design concept and equipping with domestic and foreign advanced features. 2. Realize strong cutting on the structure performance, the worktable overweight load, machine high dynamic and static stiffness, all movement safety and stability, long service life and high processing efficiency. 3. The machine is suitable for high speed steel and carbide cutting tools, processing workpieces of all ferrous and non-ferrous metals and some nonmetal materials. 4. The machine can complete the process of rough and finish turning inside and outside cylinder, inside and outside cone surface, plane surface, the circular arc surface and grooving. 5. The machine is mainly composed of column, worktable, beam, vertical tool post, main drive gearbox, beam lifting mechanism, vertical tool post feeding mechanism, beam guide protection device, complete machine full enclosure, electrical system, hydraulic system, cooling system, etc.
===================================

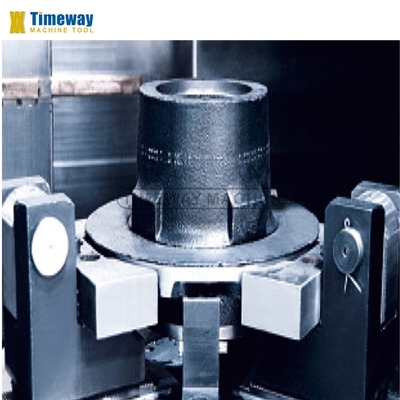

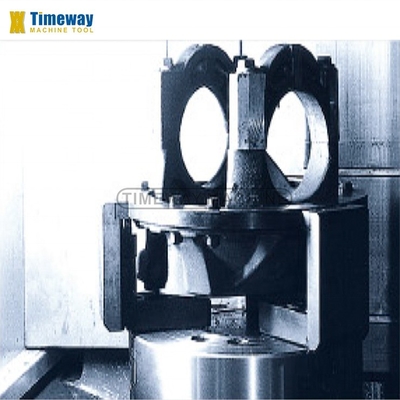

>> Worktable uses integrated, highrigidity, high precision and short fixed-type spindle structure, the spindle is equipped with a set high precision thrust ball bearing and a set double row short cylindrical roller bearing. Compact structure, at the same time bear radial load, the axial load and tilting moment, and under the overloading elastic deformation is small, improved the precision of the rotation of the worktable and carrying capacity.
===================================
>> Four station electrical tool-post: high positioning accuracy, large clamping force, large loading capacity, stable and reliable. The unique dovetail cutter holder, more accurate positioning, greater clamping force.
===================================
>> Customers can choose FANUC, SIEMENS, or KND, other CNC systems.
===================================
>> According to special requirements, the whole machine cover, chip conveyor。
Test - roundness & cylindricity:
Precision turning the external surface of the bar, test accuracy:
Roundness: less than 0.01mm;
Cylindricity: less than 0.025/300mm
Test - verticality:
Precision turning the end surface of the disc, test accuracy:
Verticality: less than 0.02/300mm
Test - roughness:
Precision turning the external surface of the bar, test accuracy: Roughness: Ra1.6um
Threads turning test:
Fine turning taper threads (Taper: 1:16, Thread pitch: 3.175mm), after testing by special measuring device, it can meet accumulative error of pitch to 0.015/25.4mm.
Comprehensive testing parts (only for CNC lathe):
All CNC lathes must make a final cutting process after all standard inspections of the machine, through cutting external surface, steps, arc surface, tapered surface, etc., in order to inspect stability of CNC system and overall performance of the machine.
Why Choose Us
Renishaw laser interferometer (only for CNC lathe)：
Before the delivery, it adopts UK RENISHAW laser to do dynamic precision testing and offset, so the machine has the high positioning accuracy and re-positioning accuracy.
