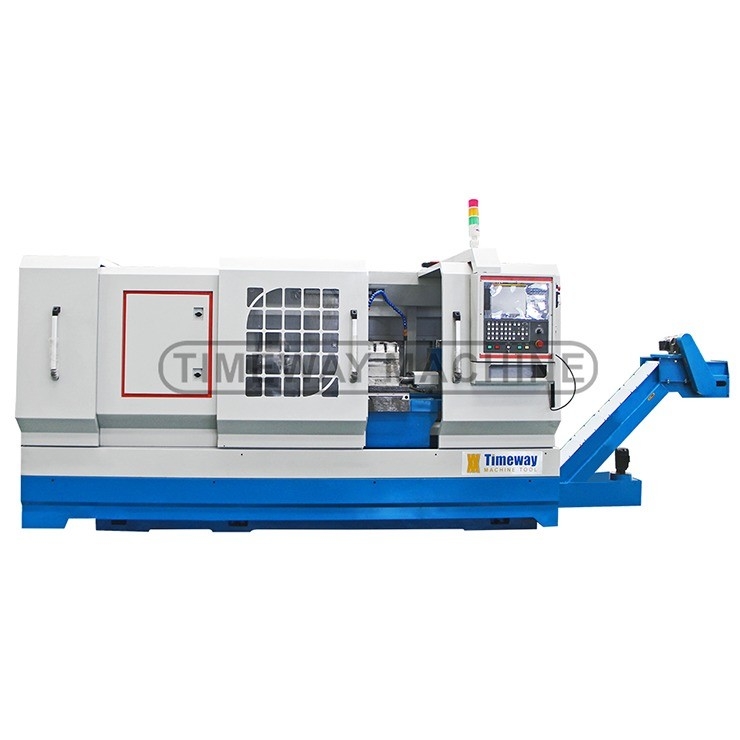

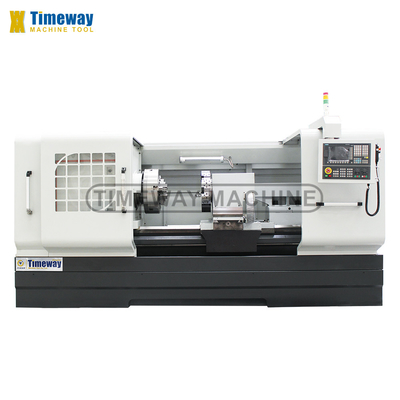

800mm Max. Swing Over Bed CNC Metal Turning Oil Country Lathe Machine for High Precision

Product Details:

Place of Origin:	China
Brand Name:	TIMAC
Model Number:	QK-130/QK-200/QK-225

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$65,000.00/sets 1-2 sets
Packaging Details:	Wooden cases(can be fumigated)
Supply Ability:	150 Set/Sets per Month

Get Best Price Contact Now

Detail Information
Product Description

Detail Information
Type:	TURNING CENTER	Max. Length Of Workpiece (mm):	3000
Machining Capacity:	Heavy Duty	Width Of Bed (mm):	500 Mm
Spindle Motor Power(kW):	15	No. Of Spindles:	Single
Number Of Axes:	2	Travel (X Axis)(mm):	420 Mm
Travel (Z Axis)(mm):	380 Mm	Dimension(LWH):	5177x1800x1850
Voltage:	220V/380V	CNC Control System:	FANUC
Tool Post Stations:	4	Weight (KG):	6000
Warranty:	1 Year	Key Selling Points:	Multifunctional
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Pipe Threading Range:	30-120
Max. Swing Over Bed:	800	Max.swing Over Cross Slide:	450
Max. Length Of Workpiece:	1000/1500/2000/3000	Max.turning Length:	800/1350/1800/2800
Bed Width:	550	Spindle Nose:	C15
Spindle Taper:	Metric 140	Spindle Bore:	130
Spindle Center Taper:	MT6	Condition:	New
Applicable Industries:	Hotels, Machinery Repair Shops, Manufacturing Plant, Restaurant	Showroom Location:	United States, Germany, Viet Nam, Philippines, Indonesia, India, Russia, Spain, Thailand, Algeria, Sri Lanka, Bangladesh, South Africa
Marketing Type:	Other	Core Components:	Other
Max. Turned Length (mm):	3000	Max. Spindle Speed (r.p.m):	1000 R.p.m
Spindle Bore(mm):	240	Port:	China Port

Product Description

Products Description

Applications of the CNC oil country lathe:

The CNC oil country lathe meets the special requirements of users in the petroleum, geological, mining and chemical industries, and in agricultural irrigation and drainage, it is able to cut various straight and taper pipe threads of union joints, drill rods, casting pipes, drain pipes, well castings and water pump pipes more economically and efficiently as compared with the engine lathe, however, it may serve as an engine lathe to cut various metric, withworth and module threads, shafts and disks.

››››› The lathe is equipped with a taper turning attachment which can work out long taper.

››››› The lathe is equipped with double chucks which can powerful clamp long parts.

››››› The lathe is equipped with rear support which can auxiliary support longer parts.

√ FANUC/SIEMENS/GSK CNC system

√ Big bore chuck (Front & Rear)

√ Dead centers

√ 4-station electric tool-post

√ Cooling system

√ Work lamp

√ Pilot lamp

√ Semi-closed guard

√ Manual pulse generator (MPG)

√ Automatic lubrication system

√ Oil gun

√ Manual moving tailstock

√ Tools & tool-box

√ Leveling wedge & bolts

√ Operation manual (English)

_ Pneumatic chuck

_ Other tool post

_ Steady rest

_ Follow rest

_ Air conditioner

_ Chip conveyor

_ Rear support for long pipe
_ Live centers

Specification			Unit	QK-130	QK-200	QK-225
Capacity	Swing over bed	mm	630/800	630/800	630/800
		Swing over cross slide	mm	340/540	340/540	340/540
		Distance between centers	mm	1000/1500/3000	1000/1500/3000	1000/1500/3000
		Pipe threading range	mm	30-126	50-193	50-220
		Bed width	mm	550	550	550
		Max. load capacity	kg	3000	3000	3000
Spindle	Spindle bore	mm	130	200	225
		Spindle speed steps	steps	stepless (3shifts)	stepless (manual 4shifts) or (hydraulic 4shifts)	stepless (manual 4shifts) or (hydraulic 4shifts)
		Spindle speed	rpm	30-650	20-500	20-500
		Chuck size	mm	400	500	500
		Chuck type	-	Manual 3-jaw	Manual 3-jaw	Manual 3-jaw
Turret	Turret type	-	Electrical 4-stations	Electrical 4-stations	Electrical 4-stations
Turret		Tool shank size	mm	32x32	32x32	32x32
Feed	X-axis travel	mm	320/420	320/420	320/420
		Z-axis travel	mm	850/1350/2850	850/1350/2850	850/1350/2850
		X-axis rapid feed speed	mm/min	4000	4000	4000
		Z-axis rapid feed	mm/min	6000	6000	6000
Tailstock	Tailstock quill diameter	mm	100	100	100
		Tailstock quill taper	-	MT5	MT5	MT5
		Tailstock quill travel	mm	250	250	250
Power	Main motor power	kw	11	11	11
Power		Coolant motor power	kw	0.125	0.125	0.125
Others	Machine dimensions	mm	3300/3800/5300x1800x1750	3300/3800/5300x1800x1750	3300/3800/5300x1800x1750
Others		Machine weight	kg	4500/5000/6000	4600/5100/6100	4700/5200/6200

Machine Details

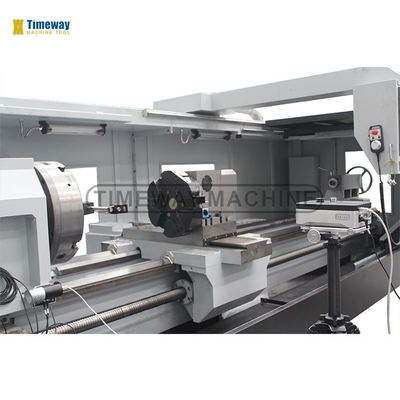

Double chucks (Front & Rear):

The lathe standard is equipped with dual chucks (3-jaw or 4-jaw), the spindle can meet different diameter long-bars, the spindle bore includes 130mm, 200mm, 225mm, 255mm, 280mm, 300mm, 330mm, 360mm, 390mm, 440mm, 520mm, 630mm, and customized spindle bore ( 5.1" ~ 24.8” ).

4-stations electric turret:

- Adopt famous brand electric turret, high positioning accuracy. Other tool post comes optional.

Tailstock:

- Manual moving tailstock comes standard, the electric moving taisltock comes optional.

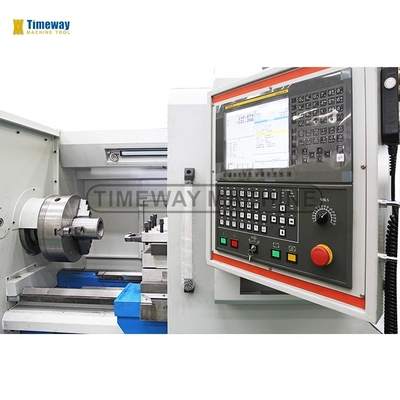

CNC system:

SIEMENS, FANUC, MITSUBISHI, FAGOR, KND, HNC, GSK, etc. for you choice.

Automatic Production Line for Steel Pipe Threads (optional):

Test - roundness & cylindricity:

Precision turning the external surface of the bar, test accuracy:

Roundness: less than 0.01mm;

Cylindricity: less than 0.025/300mm

Test - verticality:

Precision turning the end surface of the disc, test accuracy:

Verticality: less than 0.02/300mm

Test - roughness:

Precision turning the external surface of the bar, test accuracy: Roughness: Ra1.6um

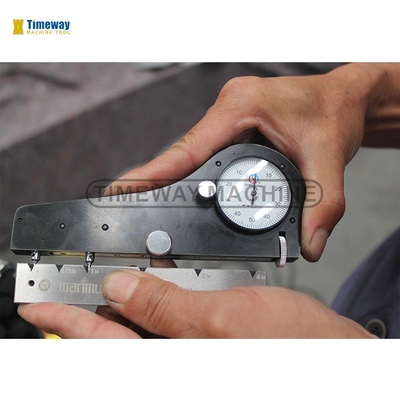

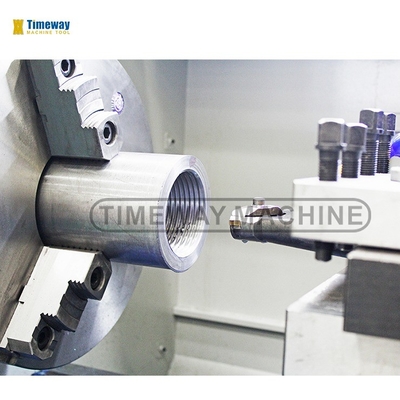

Threads turning test:

Fine turning taper threads (Taper: 1:16, Thread pitch: 3.175mm), after testing by special measuring device, it can meet accumulative error of pitch to 0.015/25.4mm.

Comprehensive testing parts (only for CNC oil country lathe):

All CNC lathes must make a final cutting process after all standard inspections of the machine, through cutting external surface, steps, arc surface, tapered surface, etc., in order to inspect stability of CNC system and overall performance of the machine.

Why Choose Us

Renishaw laser interferometer (only for CNC oil country lathe)：

Before the delivery, it adopts UK RENISHAW laser to do dynamic precision testing and offset, so the machine has the high positioning accuracy and re-positioning accuracy.
