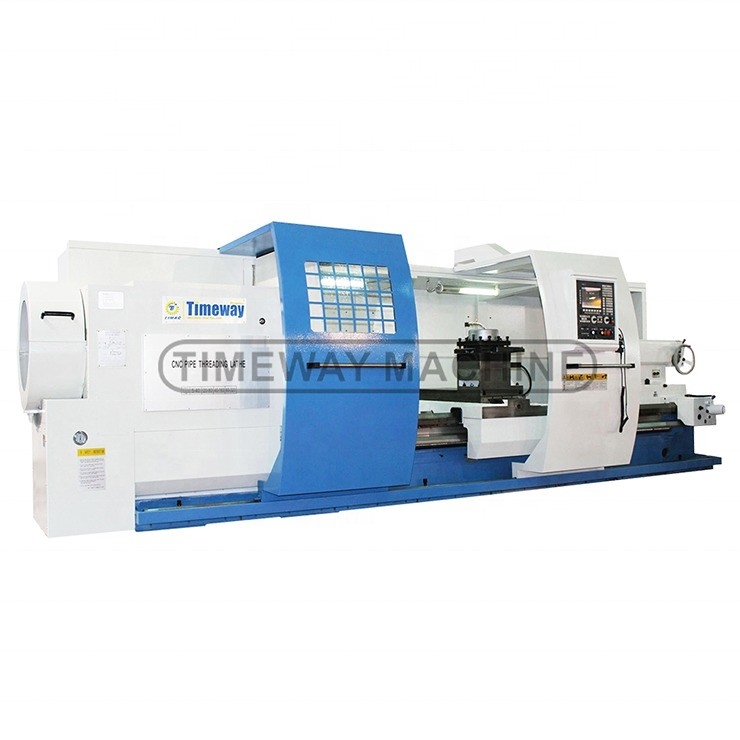

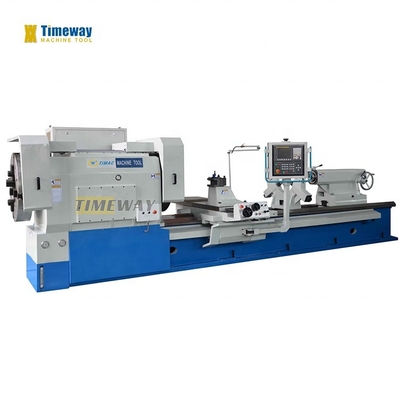

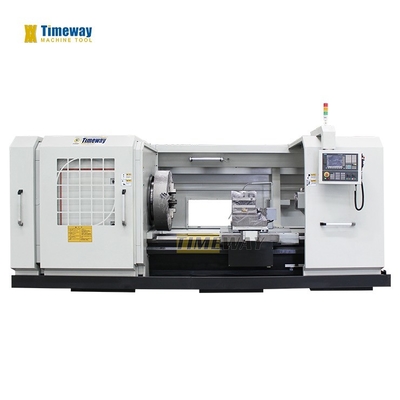

755mm Bed Width Thread-Type Spindle Nose CNC Oil Country Lathe for Pipe Threading

755mm Bed Width Thread-Type Spindle Nose CNC Oil Country Lathe for Pipe Threading

Product Details:

Place of Origin: China
Brand Name: TIMAC
Model Number: QK-360

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $80,000.00/sets 1-2 sets
Packaging Details: Wooden cases(can be fumigated)
Supply Ability: 150 Set/Sets per Month
Get Best Price Contact Now

Detail Information
Type: TURNING CENTER Max. Length Of Workpiece (mm): 3000
Machining Capacity: Heavy Duty Width Of Bed (mm): 755 Mm
Spindle Motor Power(kW): 22 No. Of Spindles: Single
Number Of Axes: 2 Travel (X Axis)(mm): 520 Mm
Travel (Z Axis)(mm): 280 Mm Dimension(L*W*H): 6500X2220X2120
Voltage: 220V/380V CNC Control System: FANUC
Tool Post Stations: 4 Weight (KG): 13000
Warranty: 1 Year Key Selling Points: Automatic
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Pipe Threading Range: 190-380
Max.swing Over Bed: 1000 Max. Swing Over Cross Slide: 610
Max. Length Of Workpiece: 1500/3000 Max, Turning Lenath: 1250/2750
Span Of Guideway: 755 Spindle Nose: Thread-type
Spindle Speed: 8-205 (manual 3) Spindle Bore: 390
Chuck Size: 850 Condition: New
Applicable Industries: Machinery Repair Shops, Manufacturing Plant Showroom Location: Canada, Saudi Arabia, South Korea, Colombia
Marketing Type: Other Core Components: Bearing, Motor, Pump
Max. Turned Length (mm): 3000 Max. Spindle Speed (r.p.m): 205 R.p.m
Spindle Bore(mm): 360 Port: China Port

Product Description

755mm Bed Width Thread-Type Spindle Nose CNC Oil Country Lathe for Pipe Threading 0
Products Description
755mm Bed Width Thread-Type Spindle Nose CNC Oil Country Lathe for Pipe Threading 1
Applications of the CNC oil country lathe:
The CNC oil country lathe meets the special requirements of users in the petroleum, geological, mining and chemical industries, and in agricultural irrigation and drainage, it is able to cut various straight and taper pipe threads of union joints, drill rods, casting pipes, drain pipes, well castings and water pump pipes more economically and efficiently as compared with the engine lathe, however, it may serve as an engine lathe to cut various metric, withworth and module threads, shafts and disks.
››››› The lathe is equipped with a taper turning attachment which can work out long taper.
››››› The lathe is equipped with double chucks which can powerful clamp long parts.
››››› The lathe is equipped with rear support which can auxiliary support longer parts.
755mm Bed Width Thread-Type Spindle Nose CNC Oil Country Lathe for Pipe Threading 2
√ FANUC/SIEMENS/GSK CNC system
√ Big bore chuck (Front & Rear)
√ Dead centers
√ 4-station electric tool-post
√ Cooling system
√ Work lamp
√ Pilot lamp
√ Semi-closed guard
√ Manual pulse generator (MPG)
√ Automatic lubrication system
√ Oil gun
√ Manual moving tailstock
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)

_ Pneumatic chuck
_ Other tool post
_ Steady rest
_ Follow rest
_ Air conditioner
_ Chip conveyor
_ Rear support for long pipe
_ Live centers



755mm Bed Width Thread-Type Spindle Nose CNC Oil Country Lathe for Pipe Threading 3
SPECIFICATION
UNIT
QK-360
Pipe threading range
mm
190-350
Max.swing over bed
mm
1100
Max. swing over cross slide
mm
730
Max. length of workpiece
mm
1500/2000/3000
Max, turning lenath
mm
1300/1800/2800
Span of guideway
mm
755
Spindle nose
A2-20
Spindle taper
1:20
Spindle bore
mm
360
Spindle center taper
MT6
Spindle speed
rpm
5-320 (auto.4steps)
Chuck size
mm
800
X/Z-axis min.feed unit
mm
0.001/0.001
X/Z-axis rapid feed speed
m/min
4/5
X-axis travel
mm
540
Turret type
mm
V4
Section of tool shank
mm
40x40
Indexing repeatility
mm
0.008
Max.cutting force
N
29400
Tailstock quill diameter
mm
160
Tailstock quill travel
mm
300
Tailstock quill taper
MT6
Main motor power
kw
18.5
Working accuracy
um
IT6-IT7
Surface roughness
um
Ra1.6
Machine length
mm
4800/6300/8300
Machine width
mm
2520
Machine height
mm
2120
Machine weight
tons
9/11/13
Machine Details
755mm Bed Width Thread-Type Spindle Nose CNC Oil Country Lathe for Pipe Threading 4

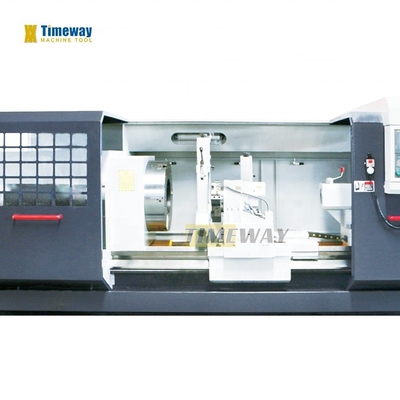

Double chucks (Front & Rear):

The lathe standard is equipped with dual chucks (3-jaw or 4-jaw), the spindle can meet different diameter long-bars, the spindle bore includes 130mm, 200mm, 225mm, 255mm, 280mm, 300mm, 330mm, 360mm, 390mm, 440mm, 520mm, 630mm, and customized spindle bore ( 5.1" ~ 24.8” ).
755mm Bed Width Thread-Type Spindle Nose CNC Oil Country Lathe for Pipe Threading 5
755mm Bed Width Thread-Type Spindle Nose CNC Oil Country Lathe for Pipe Threading 6
755mm Bed Width Thread-Type Spindle Nose CNC Oil Country Lathe for Pipe Threading 7

4-stations electric turret:

- Adopt famous brand electric turret, high positioning accuracy. Other tool post comes optional.

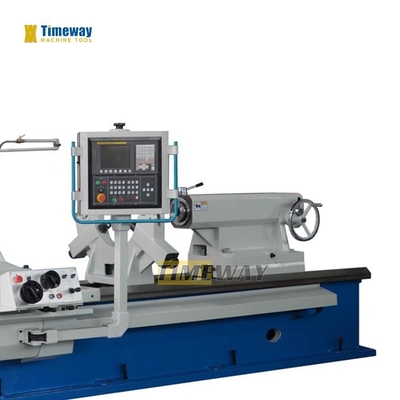

Tailstock:

- Manual moving tailstock comes standard, the electric moving taisltock comes optional.

CNC system:

SIEMENS, FANUC, MITSUBISHI, FAGOR, KND, HNC, GSK, etc. for you choice.
755mm Bed Width Thread-Type Spindle Nose CNC Oil Country Lathe for Pipe Threading 8
755mm Bed Width Thread-Type Spindle Nose CNC Oil Country Lathe for Pipe Threading 9
755mm Bed Width Thread-Type Spindle Nose CNC Oil Country Lathe for Pipe Threading 10
Automatic Production Line for Steel Pipe Threads (optional):
755mm Bed Width Thread-Type Spindle Nose CNC Oil Country Lathe for Pipe Threading 11
755mm Bed Width Thread-Type Spindle Nose CNC Oil Country Lathe for Pipe Threading 12
755mm Bed Width Thread-Type Spindle Nose CNC Oil Country Lathe for Pipe Threading 13
755mm Bed Width Thread-Type Spindle Nose CNC Oil Country Lathe for Pipe Threading 14
755mm Bed Width Thread-Type Spindle Nose CNC Oil Country Lathe for Pipe Threading 15

Test - roundness & cylindricity:

Precision turning the external surface of the bar, test accuracy:
Roundness: less than 0.01mm;
Cylindricity: less than 0.025/300mm

Test - verticality:

Precision turning the end surface of the disc, test accuracy:
Verticality: less than 0.02/300mm

Test - roughness:

Precision turning the external surface of the bar, test accuracy: Roughness: Ra1.6um
755mm Bed Width Thread-Type Spindle Nose CNC Oil Country Lathe for Pipe Threading 16
755mm Bed Width Thread-Type Spindle Nose CNC Oil Country Lathe for Pipe Threading 17
755mm Bed Width Thread-Type Spindle Nose CNC Oil Country Lathe for Pipe Threading 18

Threads turning test:

Fine turning taper threads (Taper: 1:16, Thread pitch: 3.175mm), after testing by special measuring device, it can meet accumulative error of pitch to 0.015/25.4mm.
755mm Bed Width Thread-Type Spindle Nose CNC Oil Country Lathe for Pipe Threading 19
755mm Bed Width Thread-Type Spindle Nose CNC Oil Country Lathe for Pipe Threading 20
755mm Bed Width Thread-Type Spindle Nose CNC Oil Country Lathe for Pipe Threading 21

Comprehensive testing parts (only for CNC oil country lathe):

All CNC lathes must make a final cutting process after all standard inspections of the machine, through cutting external surface, steps, arc surface, tapered surface, etc., in order to inspect stability of CNC system and overall performance of the machine.
755mm Bed Width Thread-Type Spindle Nose CNC Oil Country Lathe for Pipe Threading 22
755mm Bed Width Thread-Type Spindle Nose CNC Oil Country Lathe for Pipe Threading 23
Why Choose Us
755mm Bed Width Thread-Type Spindle Nose CNC Oil Country Lathe for Pipe Threading 24
755mm Bed Width Thread-Type Spindle Nose CNC Oil Country Lathe for Pipe Threading 25
755mm Bed Width Thread-Type Spindle Nose CNC Oil Country Lathe for Pipe Threading 26
755mm Bed Width Thread-Type Spindle Nose CNC Oil Country Lathe for Pipe Threading 27
Renishaw laser interferometer (only for CNC oil country lathe)：
Before the delivery, it adopts UK RENISHAW laser  to do dynamic precision testing and offset, so the machine has the high positioning accuracy and re-positioning accuracy.
