Product Details:

Place of Origin: China
Brand Name: TIMAC TIMEWAY
Model Number: QK-520/QK-550/QK-640

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $130,000.00/sets 1-2 sets
Packaging Details: Wooden cases(can be fumigated)
Supply Ability: 150 Set/Sets per Month
Get Best Price Contact Now

Detail Information
Type: TURNING CENTER, Cnc Pipe Thread Lathe Max. Length Of Workpiece (mm): 5000
Machining Capacity: Heavy Duty Width Of Bed (mm): 1100 Mm
Spindle Motor Power(kW): 37 No. Of Spindles: Single
Number Of Axes: 2 Travel (X Axis)(mm): 850 Mm
Travel (Z Axis)(mm): 450 Mm Dimension(L*W*H): 9000X3200X2800
Voltage: 220V/380V CNC Control System: FANUC
Tool Post Stations: 8, 4 Weight (KG): 24000
Warranty: 1 Year Key Selling Points: Competitive Price
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Pipe Threading Range: 330-460
Max.swing Over Bed: 1200 Max. Swing Over Cross Slide: 710
Max. Length Of Workpiece: 1500/3000/5000 Max. Turning Length: 2800/4800
Span Of Guideway: 1100 Spindle Nose: A2-28
Spindle Taper: Metric 140 Spindle Bore: 465
Condition: New Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant
Showroom Location: Egypt, Turkey, Italy, Brazil, Peru, Indonesia, Mexico, Russia, Argentina Marketing Type: Other
Core Components: Bearing, PLC Max. Spindle Speed (r.p.m): 258 R.p.m
Spindle Bore(mm): 550 Max. Turned Length (mm): 5000
Port: China Port

Product Description

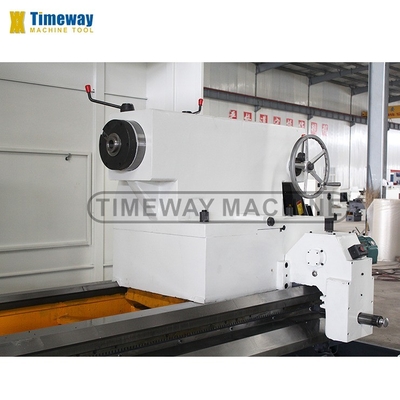

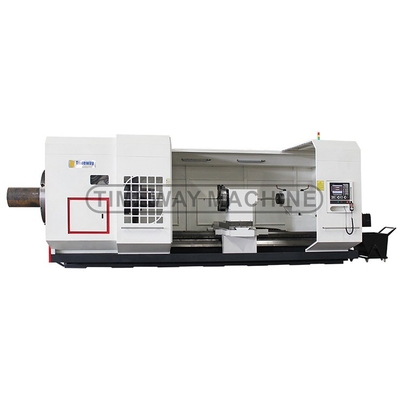

cnc pipe thread lathe
Metric 140 Spindle Taper Pipe Threading CNC Lathe for Oil Country Manufacturing 0
Products Description

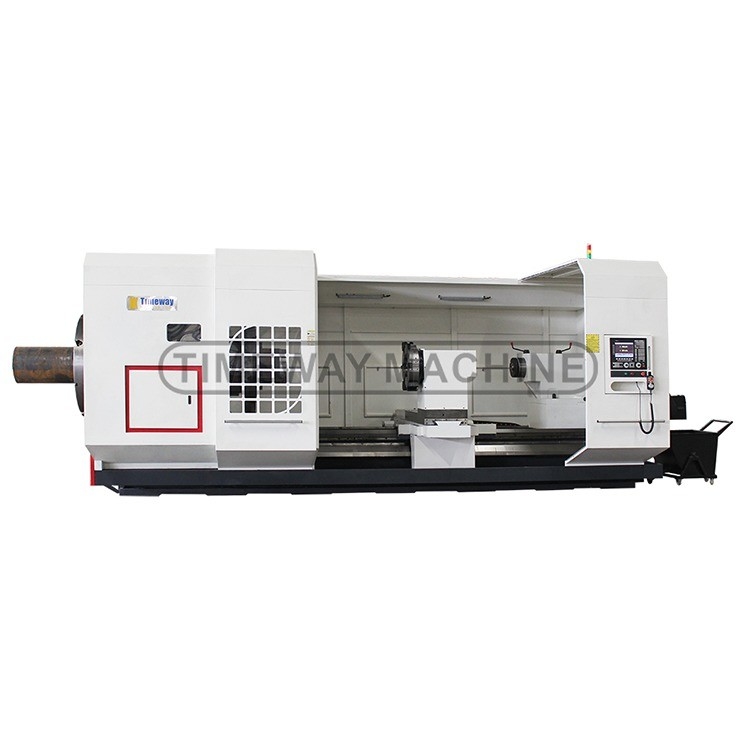

Metric 140 Spindle Taper Pipe Threading CNC Lathe for Oil Country Manufacturing 1
Applications of the CNC oil country lathe:
The CNC oil country lathe meets the special requirements of users in the petroleum, geological, mining and chemical industries, and in agricultural irrigation and drainage, it is able to cut various straight and taper pipe threads of union joints, drill rods, casting pipes, drain pipes, well castings and water pump pipes more economically and efficiently as compared with the engine lathe, however, it may serve as an engine lathe to cut various metric, withworth and module threads, shafts and disks.
››››› The lathe is equipped with a taper turning attachment which can work out long taper.
››››› The lathe is equipped with double chucks which can powerful clamp long parts.
››››› The lathe is equipped with rear support which can auxiliary support longer parts.
Metric 140 Spindle Taper Pipe Threading CNC Lathe for Oil Country Manufacturing 2
√ FANUC/SIEMENS/GSK CNC system
√ Big bore chuck (Front & Rear)
√ Dead centers
√ 4-station electric tool-post
√ Cooling system
√ Work lamp
√ Pilot lamp
√ Semi-closed guard
√ Manual pulse generator (MPG)
√ Automatic lubrication system
√ Oil gun
√ Manual moving tailstock
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)

_ Pneumatic chuck
_ Other tool post
_ Steady rest
_ Follow rest
_ Air conditioner
_ Chip conveyor
_ Rear support for long pipe
_ Live centers



Metric 140 Spindle Taper Pipe Threading CNC Lathe for Oil Country Manufacturing 3
Specification
Unit
QK-520
QK-550
QK-640
Pipe threading range
mm
330-510
330-550
330-630
Max. swing over bed
mm
1200
1250
1400
Max. swing over cross slide
mm
710
900
800
Max. length of workpiece
mm
1500/3000/5000
1500/3000/5000
1500/3000/5000
Max. turning length
mm
1250/2750
1250/2750/4750
1250/2750/4750
Span of guideway
mm
765
1100
1100
Spindle nose
-
Thread-type
A2-28
Thread-type
Spindle bore
mm
520
550
640
Spindle speed
rpm
8-190 (manual 3steps)
23-258 (Manual 2steps)
2-120 (manual 3steps)
Chuck size
mm
1000 (electric)
1250 (manual)
1250 (manual)
X-axis travel
mm
520
750
750
Machine length
mm
5000/6500/9000
5500/7000/9000
5600/7100/9100
Machine width
mm
2300
2500
2500
Machine height
mm
2200
2500
2500
Machine weight
tons
15/16/20
17.8/19/23
18/19.3/24
CNC system
-
FANUC/SIEMENS
FANUC/SIEMENS
FANUC/SIEMENS
Machine Details

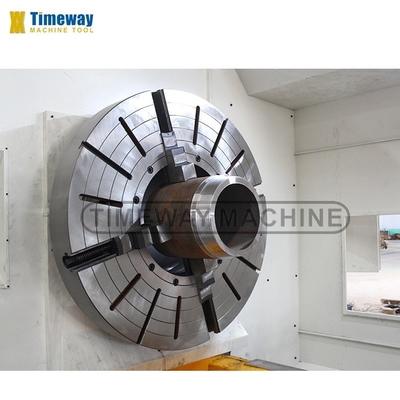

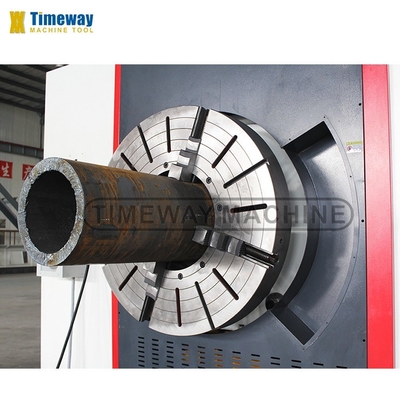

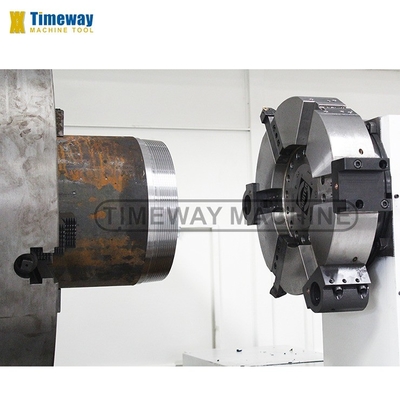

Double chucks (Front & Rear):

The lathe standard is equipped with dual chucks (3-jaw or 4-jaw), the spindle can meet different diameter long-bars, the spindle bore includes 130mm, 200mm, 225mm, 255mm, 280mm, 300mm, 330mm, 360mm, 390mm, 440mm, 520mm, 630mm, and customized spindle bore ( 5.1" ~ 24.8” ).
Metric 140 Spindle Taper Pipe Threading CNC Lathe for Oil Country Manufacturing 4
Metric 140 Spindle Taper Pipe Threading CNC Lathe for Oil Country Manufacturing 5
Metric 140 Spindle Taper Pipe Threading CNC Lathe for Oil Country Manufacturing 6

4-stations electric turret:

- Adopt famous brand electric turret, high positioning accuracy. Other tool post comes optional.

Tailstock:

- Manual moving tailstock comes standard, the electric moving taisltock comes optional.

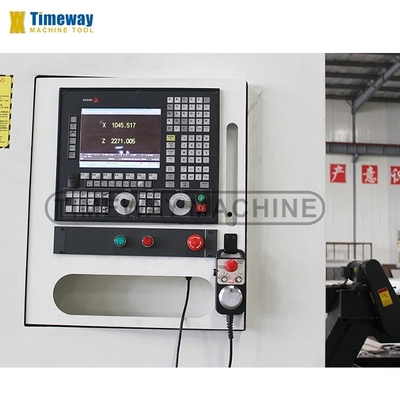

CNC system:

SIEMENS, FANUC, MITSUBISHI, FAGOR, KND, HNC, GSK, etc. for you choice.
Metric 140 Spindle Taper Pipe Threading CNC Lathe for Oil Country Manufacturing 7
Metric 140 Spindle Taper Pipe Threading CNC Lathe for Oil Country Manufacturing 8
Metric 140 Spindle Taper Pipe Threading CNC Lathe for Oil Country Manufacturing 9
Automatic Production Line for Steel Pipe Threads (optional):
Metric 140 Spindle Taper Pipe Threading CNC Lathe for Oil Country Manufacturing 10
Metric 140 Spindle Taper Pipe Threading CNC Lathe for Oil Country Manufacturing 11
Metric 140 Spindle Taper Pipe Threading CNC Lathe for Oil Country Manufacturing 12
Metric 140 Spindle Taper Pipe Threading CNC Lathe for Oil Country Manufacturing 13
Metric 140 Spindle Taper Pipe Threading CNC Lathe for Oil Country Manufacturing 14

Test - roundness & cylindricity:

Precision turning the external surface of the bar, test accuracy:
Roundness: less than 0.01mm;
Cylindricity: less than 0.025/300mm

Test - verticality:

Precision turning the end surface of the disc, test accuracy:
Verticality: less than 0.02/300mm

Test - roughness:

Precision turning the external surface of the bar, test accuracy: Roughness: Ra1.6um
Metric 140 Spindle Taper Pipe Threading CNC Lathe for Oil Country Manufacturing 15
Metric 140 Spindle Taper Pipe Threading CNC Lathe for Oil Country Manufacturing 16
Metric 140 Spindle Taper Pipe Threading CNC Lathe for Oil Country Manufacturing 17

Threads turning test:

Fine turning taper threads (Taper: 1:16, Thread pitch: 3.175mm), after testing by special measuring device, it can meet accumulative error of pitch to 0.015/25.4mm.
Metric 140 Spindle Taper Pipe Threading CNC Lathe for Oil Country Manufacturing 18
Metric 140 Spindle Taper Pipe Threading CNC Lathe for Oil Country Manufacturing 19
Metric 140 Spindle Taper Pipe Threading CNC Lathe for Oil Country Manufacturing 20

Comprehensive testing parts (only for CNC oil country lathe):

All CNC lathes must make a final cutting process after all standard inspections of the machine, through cutting external surface, steps, arc surface, tapered surface, etc., in order to inspect stability of CNC system and overall performance of the machine.
Metric 140 Spindle Taper Pipe Threading CNC Lathe for Oil Country Manufacturing 21
Metric 140 Spindle Taper Pipe Threading CNC Lathe for Oil Country Manufacturing 22
Positive Comments From Customers
Metric 140 Spindle Taper Pipe Threading CNC Lathe for Oil Country Manufacturing 23
Company Introduction
Metric 140 Spindle Taper Pipe Threading CNC Lathe for Oil Country Manufacturing 24
Factory Display：
Metric 140 Spindle Taper Pipe Threading CNC Lathe for Oil Country Manufacturing 25
Text Introduction：
Metric 140 Spindle Taper Pipe Threading CNC Lathe for Oil Country Manufacturing 26
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.

Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
