Vertical Machine Center CNC Vertical Lathe Turning Center Type Width of bed mm 200 mm
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC TIMEWAY |
| Model Number: | VLK800E / VLK1250E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $30,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | VERTICAL | Max. Length Of Workpiece (mm): | 500 |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Width Of Bed (mm): | 200 Mm |
| Spindle Motor Power(kW): | 22 | No. Of Spindles: | Single |
| Number Of Axes: | 2 | Travel (X Axis)(mm): | 550 Mm |
| Travel (Z Axis)(mm): | 650 Mm | Voltage: | 220V/380V |
| CNC Control System: | FANUC | Tool Post Stations: | 4 |
| Weight (KG): | 6000 | Warranty: | 1 Year |
| Key Selling Points: | Automatic | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Max, Length Of Workpiece: | 500mm | Machine Type: | Lathe Machine CNC |
| Name: | Cnc Vertical Lathe | Product Name: | Torno Cnc Vertical |
| Main Motor Power: | 22 | Keyword: | Torno Cnc Vertical Turning Lathe Machine |
| Max, Torque Of Worktable: | 10 | Worktable Speed Range: | 2-320 |
| Number Of Tool Station: | 4 | CNC System: | SIEMENS 808D |
| Condition: | New | Spindle Bore(mm): | 100 |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Retail, Construction Works , Energy & Mining | Showroom Location: | Egypt, Turkey, Romania |
| Core Components: | PLC | Max. Spindle Speed (r.p.m): | 2000 R.p.m |
| Max. Turned Length (mm): | 800 | Marketing Type: | Other |
| Port: | China Port | ||
Product Description

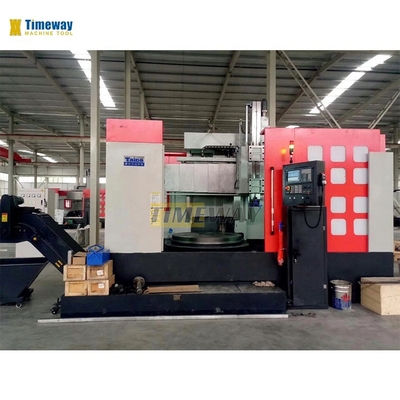

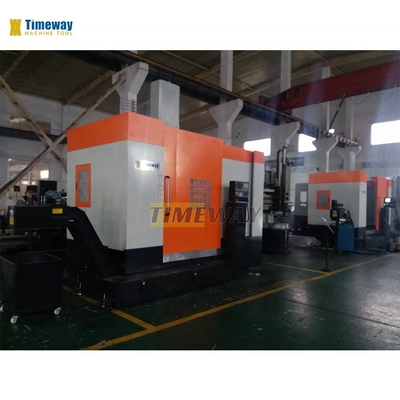

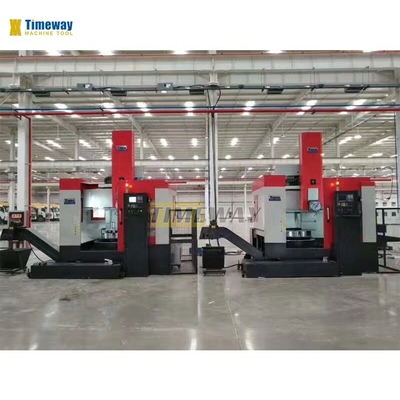

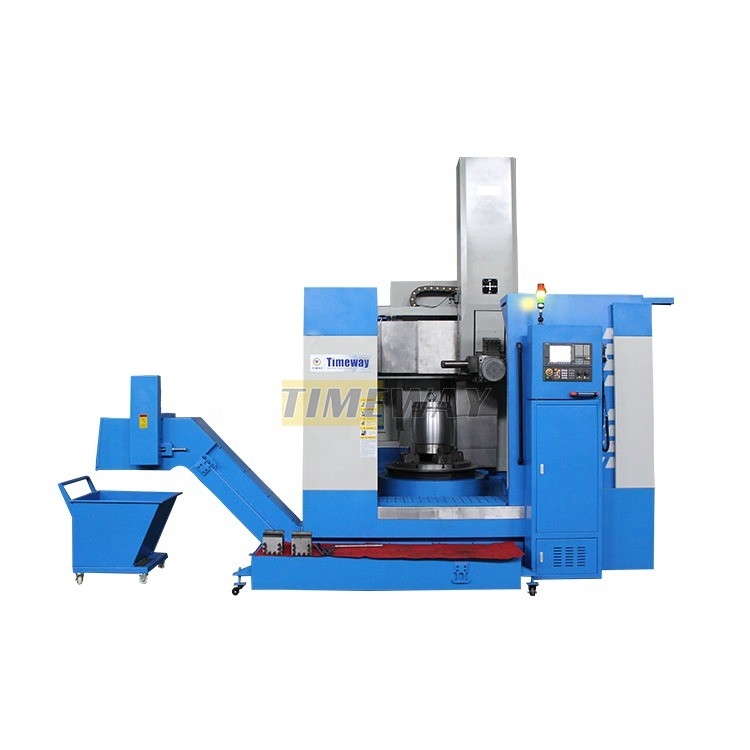

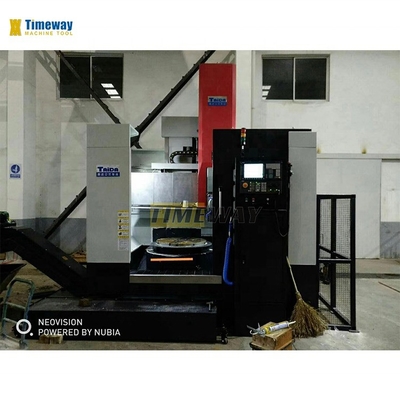

Vertical CNC Lathe
Summary
1. The series CNC single column vertical lathe is designed by absorbing modern advanced design and manufacturing techniques and using CAD optimization design method, using the latest design concept and equipping with domestic and foreign advanced features.
2. The machine is suitable for high speed steel and carbide cutting tools, processing workpieces of all ferrous and non-ferrous metals and some nonmetal materials.
Products Description
SPECIFICATION | UNIT | VLK800E | VLK1250E | |
Max. swing diameter | mm | 950 | 1250 | |
Max. tuming diameter | mm | 800 | 1250 | |
Max, height of workpiece | mm | 800 | 1000 | |
Max, weight of workpiece | kg | 2000 | 5000 | |
Main motor power | kw | 22 | 30 | |
Worktable diameter | mm | 800 | 1010 | |
X-axis travel | mm | -20-550 | -20~800 | |
Z-axis travel | mm | 650 | 650 | |
CNC system | SIEMENS 808D | SIEMENS 808D | ||
Machine weight | kg | 8500 | 11000 | |
Machine dimensions (LxWxH) | cm | 430x238x429 | 478x257x440 | |
Chip conveyor | Chain type | Chain type | ||
Feature：
Realize strong cutting on the structure performance, the worktable overweight load, machine high dynamic and static stiffness, all movement safety and stability, long service life and high processing efficiency.
GSK , Electric tools turret, Electronic handwheel, Lubrication system, Cooling system, Work lamp, Pilot lamp, Protection guard, Heat exchanger, Leveling blocks & bolts, Tools & tool-box, Operation manuals. | FANUC CNC system, SIEMENS CNC system, Air conditioner, Chain type chip conveyor. |
Machine Details
===================================
>> Worktable uses integrated, highrigidity, high precision and short fixed-type spindle structure, the spindle is equipped with a set high precision thrust ball bearing and a set double row short cylindrical roller bearing. Compact structure, at the same time bear radial load, the axial load and tilting moment, and under the overloading elastic deformation is small, improved the precision of the rotation of the worktable and carrying capacity.
===================================

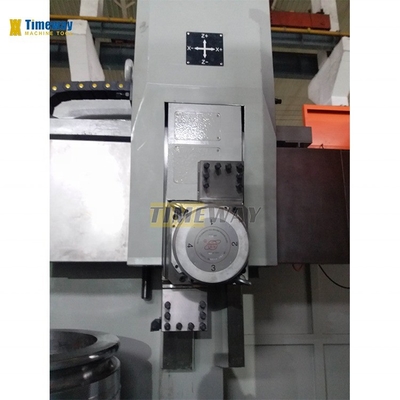

>> Four station electrical tool-post: high positioning accuracy, large clamping force, large loading capacity, stable and reliable. The unique dovetail cutter holder, more accurate positioning, greater clamping force.
===================================
>> Customers can choose FANUC, SIEMENS, or KND, other CNC systems.
===================================
>> According to special requirements, the whole machine cover, chip conveyor。
Test - roundness & cylindricity:
Precision turning the external surface of the bar, test accuracy:
Roundness: less than 0.01mm;
Cylindricity: less than 0.025/300mm
Test - verticality:
Precision turning the end surface of the disc, test accuracy:
Verticality: less than 0.02/300mm
Test - roughness:
Precision turning the external surface of the bar, test accuracy: Roughness: Ra1.6um
Threads turning test:
Fine turning taper threads (Taper: 1:16, Thread pitch: 3.175mm), after testing by special measuring device, it can meet accumulative error of pitch to 0.015/25.4mm.
Comprehensive testing parts (only for CNC lathe):
All CNC lathes must make a final cutting process after all standard inspections of the machine, through cutting external surface, steps, arc surface, tapered surface, etc., in order to inspect stability of CNC system and overall performance of the machine.
Positive Comments From Customers
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
