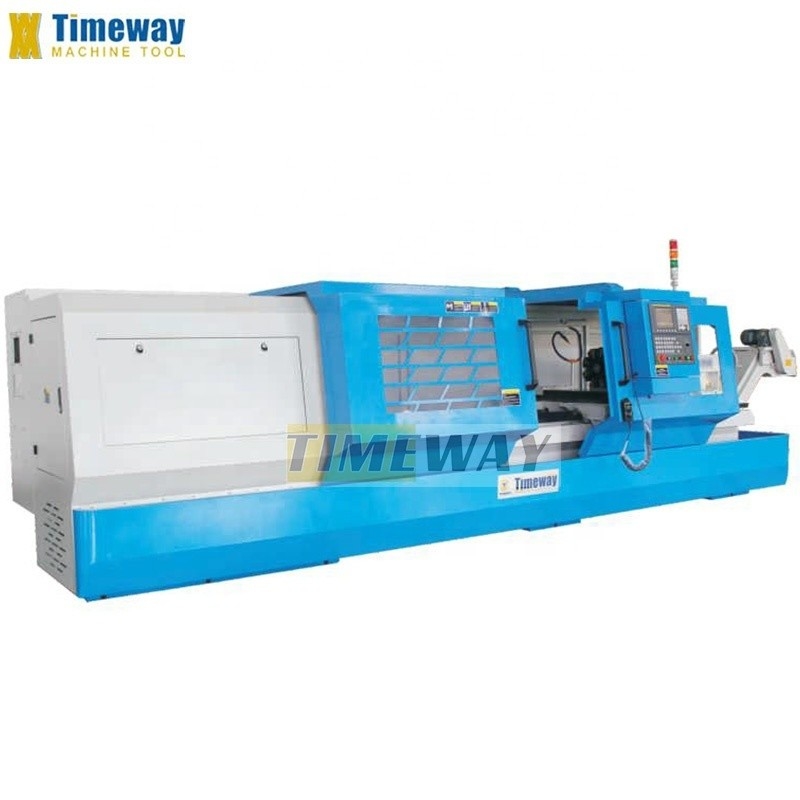

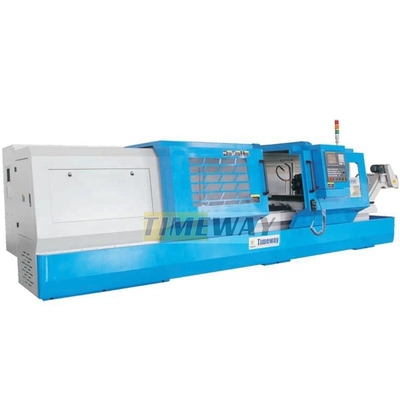

High Precision Flat Bed CNC Lathe with GSK CNC Control System and 11kW Spindle Motor Power
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Model Number: | CK-630U |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $68,000.00/sets 1-1 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 630 Mm |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Medium Duty |
| Width Of Bed (mm): | 50 Mm | Spindle Motor Power(kW): | 11 Kw |
| No. Of Spindles: | Single | Number Of Axes: | 3 |
| Travel (X Axis)(mm): | 420 Mm | Travel (Z Axis)(mm): | 1500 Mm |
| Dimension(L*W*H): | 4307x2040x1855 Mm | Voltage: | 220/380V |
| CNC Control System: | GSK | Tool Post Stations: | 4 |
| Weight (KG): | 5800 | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Machine Type: | Flat Bed CNC Lathe | Keyword: | CNC Lathe |
| CNC Or Not: | CNC | Max. Swing Over Bed: | 630 Mm |
| Distance Between Centers: | 1500 Mm | Spindle Bore: | 104 Mm |
| Cross Travel (X): | 420 Mm | Longitudinal Travel (Z): | 1500 Mm |
| Machine Dimensions (L*W*H): | 4307*2040*1855 Mm | Machine Weight: | 5800 Kg |
| Condition: | New | Showroom Location: | Egypt, Canada, Turkey, Saudi Arabia, Indonesia, Russia, Colombia, Romania, Bangladesh, South Africa, Uzbekistan |
| Marketing Type: | New Product 2020 | Max. Spindle Speed (r.p.m): | 1250 R.p.m |
| Spindle Bore(mm): | 104 Mm | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Other |
| Core Components: | Bearing, Other | Port: | China Port |
Product Description
Products Description
Specification | Unit | CK-630U | CK-800U |
Max. swing over bed | mm | 630 | 800 |
Max.. swing over cross slide | mm | 350 | 520 |
Distance between centers | mm | 1500/3000 | 1500/3000 |
Max. turning length | mm | 1500/3000 | 1500/3000 |
Bed width | mm | 600 | 600 |
Spindle nose | mm | A2-11 | A2-11 |
Spindle bore | mm | 104 | 104 |
Spindle taper | - | Metric | Metric |
Spindle speed (steps) | rpm | 11-1250 (3), automtatic | 11-1250 (3), automtatic |
Center height | mm | 315 | 400 |
Chuck size | mm | 325 | 325 |
Cross travel (X) | mm | 420 | 420 |
Longitudinal travel (Z) | mm | 1500/3000 | 1500/3000 |
X/Z-axis rapid feed speed | m/min | 4/8 | 4/8 |
X/Z-axis min. feed unit | mm | 0.001 | 0.001 |
X-axis feed motor torque | NM | 10 | 10 |
Z-axis feed motor torque | NM | 15/30 | 15/30 |
Tool post type | - | V4/H6 | V4/H6 |
Tool section size | mm | 32x32 | 32x32 |
Tailstock quill diameter | mm | 100 | 100 |
Tailstock quill travel | mm | 250 | 250 |
Tailstock quill taper | - | MT5 | MT5 |
Main motor power | kw | 11 | 15 |
Coolant pump power | kw | 0.12 | 0.12 |
Working accuracy | mm | IT6 | IT6 |
X/Z-axis positioning accuracy | mm | 0.03/0.04 | 0.03/0.04 |
X/Z-axis repositioning accuracy | mm | 0.012/0.016 | 0.012/0.016 |
Roughness | um | Ra1.6 | Ra1.6 |
Machine dimensions (LxWxH) | mm | 4307/5785×2040×1855 | 4307/5785×2040×1855 |
Machine weight | kg | 5800/7200 | 5800/7200 |
· FANUC CNC system, · Manual 3-jaw chuck, · 4-station electronic tool post, · Electronic handwheel (MPG), · Lubrication system, · Cooling system, · Work lamp, · Pilot lamp, · Protection guard, · Heat exchanger, · Leveling blocks & bolts, · Tools & tool-box, · Operation manuals. | · GSK, SIEMENS CNC system, · Hydraulic chuck, · 6-station tool post, · Air conditioner, · Tool setter, · Chain type chip conveyor |
