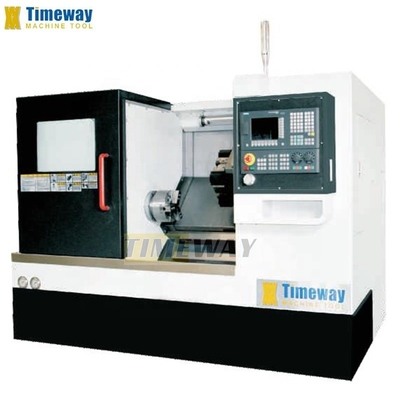

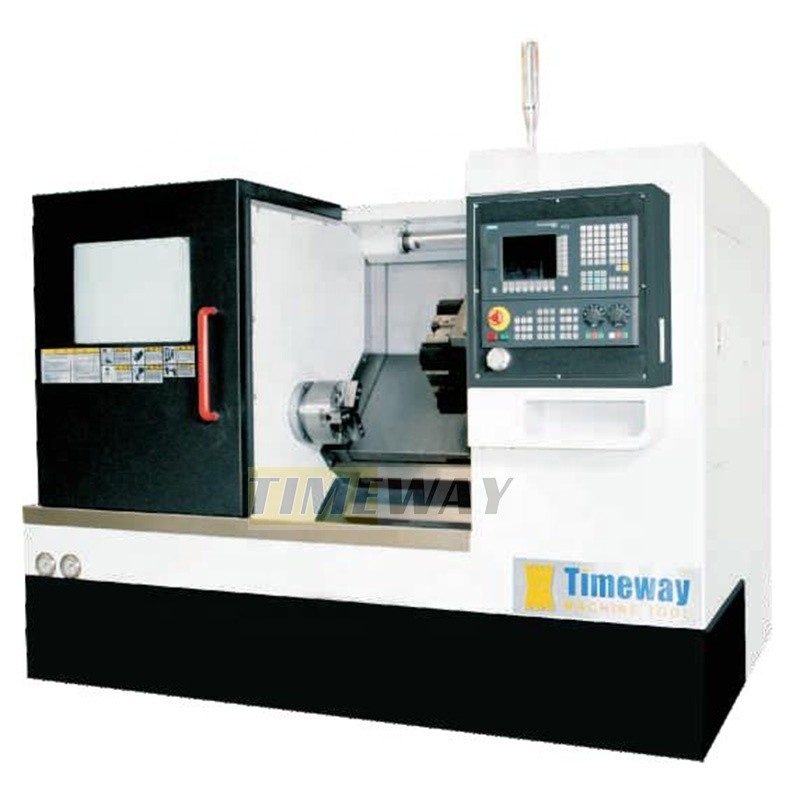

56mm Spindle Bore High Precision CNC Lathe Machine for Industry Production Efficiency
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Model Number: | CK-32 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $60,000.00/sets 1-1 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Slant Bed Lathe | Max. Length Of Workpiece (mm): | 420 Mm |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Width Of Bed (mm): | 50 Mm |
| Spindle Motor Power(kW): | 7.5 Kw | No. Of Spindles: | Single |
| Number Of Axes: | 3 | Travel (X Axis)(mm): | 210 Mm |
| Travel (Z Axis)(mm): | 450 Mm | Dimension(L*W*H): | 2600x1800x1600 Mm |
| Voltage: | 220V/380V | CNC Control System: | Fanuc/Siemens/GSK |
| Tool Post Stations: | 4 | Weight (KG): | 2700 |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Machine Type: | Slant Bed CNC Lathe |
| Keyword: | CNC Lathe | CNC Or Not: | CNC |
| Model: | CK-32 | Max. Swing Over Bed: | 420 Mm |
| Max. Turning Diameter: | 320 Mm | Max. Turning Length: | 350 Mm |
| Spindle Bore: | 56 Mm | Machine Dimensions (L*W*H): | 2600*1800*1600 Mm |
| Machine Weight: | 2700 Kg | Condition: | New |
| Showroom Location: | Egypt, Canada, Turkey, Germany, Viet Nam, Peru, Indonesia, Russia, Colombia, South Africa, Kazakhstan, Uzbekistan | Marketing Type: | New Product 2020 |
| Max. Spindle Speed (r.p.m): | 3500 R.p.m | Spindle Bore(mm): | 56 Mm |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Other | Core Components: | Bearing, Other |
| Port: | China Port | ||
Product Description
Products Description
Specification | Unit | CK-32 | CK-36 | CK-45 |
Max. swing over bed | mm | 420 | 550 | 500 |
Max. swing over cross slide | mm | 220 | 220 | 220 |
Standard turning diameter | mm | 210 | 210 | 210 |
Max. turning diameter | mm | 320 | 360 | 360 |
Max. turning length | mm | 350 | 500 | 750 |
Spindle speed | rpm | 3500 | 3000 | 2500 |
Spindle nose | - | A2-5 | A2-6 | A2-6 |
Spindle bore | mm | 56 | 62 | 66 |
Hydraulic chuck size | mm | 160 | 200 | 200 |
Cross travel (X) | mm | 210 | 230 | 220 |
Longitudinal travel (Z) | mm | 450 | 600 | 850 |
X/Z-axis rapid feed speed | m/min | 12/20 | 24/24 | 20/20 |
Hydraulic cool post type | - | 80-8T | 80-8T | 80-8T |
Tool section size | mm | 25x25/Φ32 | 25x25/Φ32 | 25x25/Φ32 |
Tailstock quill diameter | mm | 52 | 110 | 110 |
Tailstock quill travel | mm | 60 | 100 | 100 |
Tailstock quill taper | - | MT4 | MT5 | MT4 |
Bed structure | - | 45° Integral bed | 45° Integral bed | 45° Integral bed |
Guideway type | - | Linear/Sliding | Linear/Sliding | Linear/Sliding |
Main motor power | kw | 7.5 | 11 | 7.5 |
Power supply | kva | 30 | 25 | 30 |
Machine dimensions (LxWxH) | mm | 2600x1800x1600 | 2900x1800x1750 | 2900x1800x1600 |
Machine weight | kg | 2700 | 3200 | 3200 |
· FANUC CNC system, · 8-station hydraulic tool post, · Hydraulic chuck, · Electronic handwheel, · Lubrication system, · Cooling system, · Work lamp, · Pilot lamp, · Full protection guard, · Heat exchanger, · Leveling blocks & bolts, · Tools & tool-box, · Operation manuals. | · GSK, SIEMENS CNC system, · Air conditioner, · Hydraulic hollow chuck, · Tool setter, · Bar feeder, · Hydraulic tailstock, · Chain type chip conveyor. |
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
