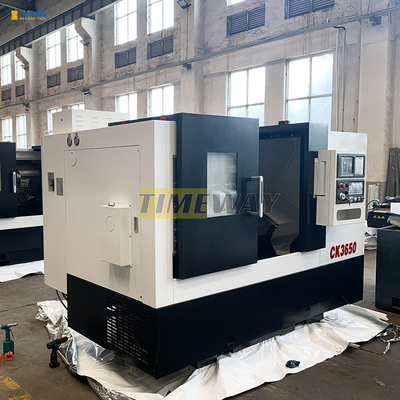

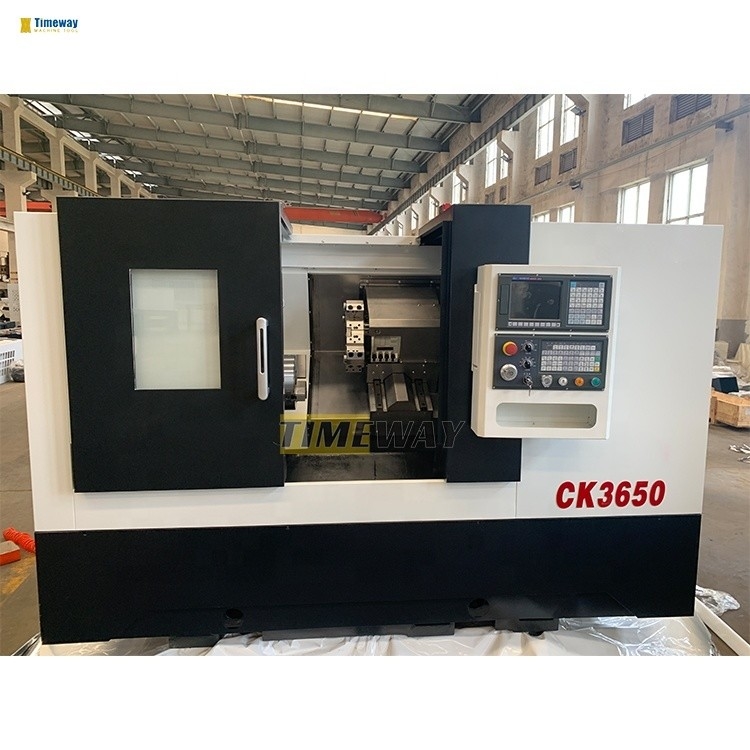

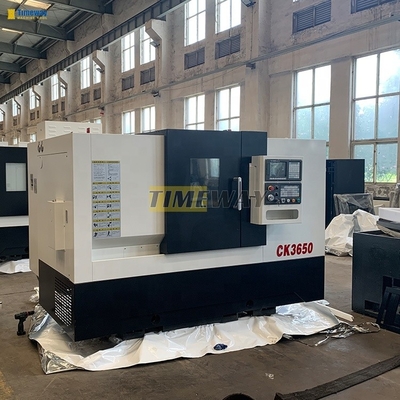

460mm Swing Single Spindle CNC Lathe CK-3650 High Precision and for Production
Product Details:
| Place of Origin: | China |
| Model Number: | CK3650 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $29,999.00/sets 1-2 sets |
| Packaging Details: | in pallet/plywood case |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 500 Mm |
|---|---|---|---|
| Structure: | Slant Bed Lathe | Machining Capacity: | Heavy Duty |
| Width Of Bed (mm): | 400 Mm | Spindle Motor Power(kW): | 11 |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 200 Mm | Travel (Z Axis)(mm): | 550 Mm |
| Dimension(L*W*H): | 2300x1700x1900mm | Voltage: | Customer's Requirement |
| CNC Control System: | GSK | Tool Post Stations: | 8 |
| Weight (KG): | 3200 | Warranty: | 1 Year |
| Key Selling Points: | High Productivity | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Machine Type: | Slant Bed Cnc Lathe Machine | Model: | CK3650 |
| Max. Swing Over Bed: | 460mm | Max. Swing Over Cross Slide: | 300mm |
| Max. Turning Length: | 500mm | Warranty Period: | 1 Year |
| Spindle Bore: | 65mm | Cross Travel (X): | 200mm |
| Longitudinal Travel (Z): | 550mm | Condition: | New |
| Spindle Bore(mm): | 65 | Toolpost Brand: | Hongda |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant | Showroom Location: | Egypt, Canada, Turkey, United Kingdom, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, |
| Max. Spindle Speed (r.p.m): | 4000 R.p.m | Max. Turned Length (mm): | 500 |
| Marketing Type: | New Product 2021 | Core Components: | Bearing, Motor, Pump, Gear, PLC, Gearbox, Other |
Product Description
Products Description
Features:

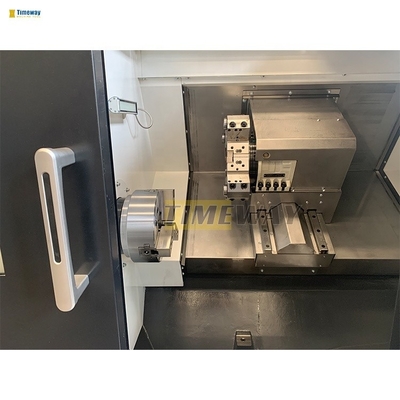

- The machine adopts a 45° inclined layout, and the bed is a tubular hollow structure, which greatly improves the bending and torsional rigidity of the machine tool during operation. The advanced bed provides a strong guarantee for the high precision of the whole machine.
- It is more suitable for the processing of various shaft and disc parts with high precision requirements, difficult processing, many processes, and mass production.
- It is more suitable for the processing of various shaft and disc parts with high precision requirements, difficult processing, many processes, and mass production.
Specification | Unit | CK3650 |
Max. swing over bed | mm | 460 |
Max. swing over cross slide | mm | 300 |
Standard turning diameter | mm | 240 |
Max. turning diameter | mm | 360 |
Max. turning length | mm | 500 |
Max. diameter of bar | mm | 52 |
Spindle speed | r.p.m | 50-4000 |
Spindle nose | mm | A2-6 |
Spindle bore | mm | 65 |
Chuck size | mm | 200 |
Cross travel(X) | mm | 200 |
Longitudinal travel(Z) | mm | 550 |
X/Z-axis rapid feed speed | mm/min | 24/24 |
Hydraulic tool post type | - | 80-8T |
Tool section size | mm | 25x25/Φ32 |
Tailstock quill diameter | mm | 110 |
Tailstock quill travel | mm | 100 |
Tailstock quill taper | - | MT5 |
Bed structure | - | 30/45° Integral bed |
Guideway type | - | line rail |
Working accurancy | mm | IT6 |
X-axis repositioning accuracy | mm | 0.006 |
Z-axis repositioning accuracy | mm | 0.008/0.01 |
Roughness | µm | Ra1.6 |
Main motor power | kw | 11 |
Power supply | kva | 25 |
Machine dimensions (LxWxH) | mm | 2300x1700x1900 |
Machine weight | kg | 3200 |
