Versatile Farms Multifunctional Flat Machine Tool 660mm Swing Flat Bed CNC Turning Lathe
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Model Number: | CK-660 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $28,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(fumigated) |
| Supply Ability: | 500 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 2000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Medium Duty |
| Width Of Bed (mm): | 660 Mm | Spindle Motor Power(kW): | 11 |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 365 Mm | Travel (Z Axis)(mm): | 1000 Mm |
| Tool Post Stations: | 4 | Weight (KG): | 1100 |
| Warranty: | 1 Year | Key Selling Points: | Sustainable |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | CNC |
| Automatic Grade: | Automatic | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Flat Bed Cnc Lathe: | Economical Flat Bed CNC Lathe | Power(W): | 3.7kw |
| Max. Swing Diameter: | 400mm | Weight: | 1.6/1.8/2 Tons |
| Tailstock Quill Taper: | M5 | Coolant Pump Power: | 0.12kw |
| X/Z-axis Feed Motor Torque: | 7.5/10NM | Condition: | New |
| Spindle Bore(mm): | 105 | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Home Use, Retail, Construction Works , Energy & Mining |
| Showroom Location: | Egypt, Italy, Peru, Russia, South Korea, Algeria, South Africa, Nigeria, Malaysia | Marketing Type: | New Product 2020 |
| Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox | Year: | 2020 |
| Max. Spindle Speed (r.p.m): | 1600 R.p.m | Max. Turned Length (mm): | 2000 |
| Port: | China Port | ||
Product Description

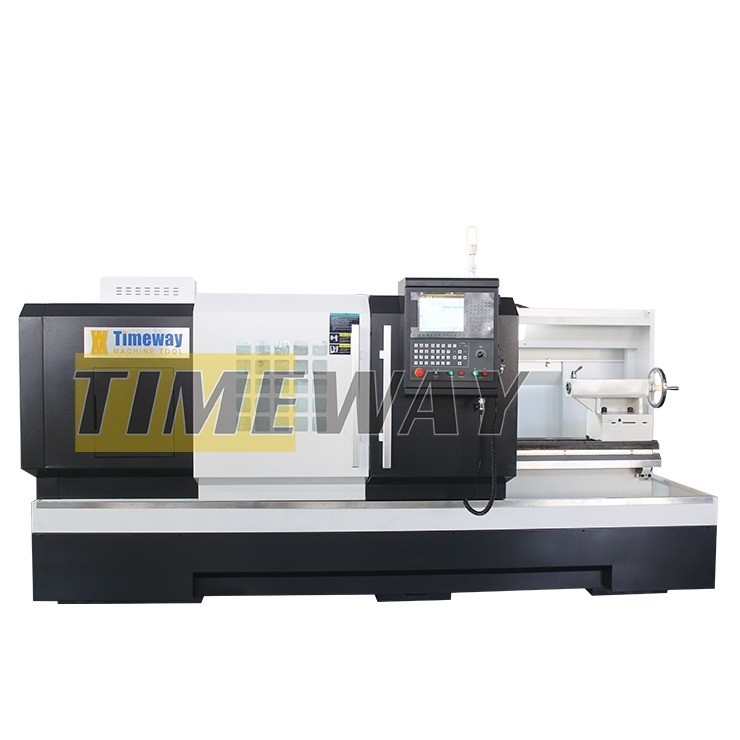

660mm Swing Flat Bed CNC Turning Lathe / Multifunctional Flat Machine Tool

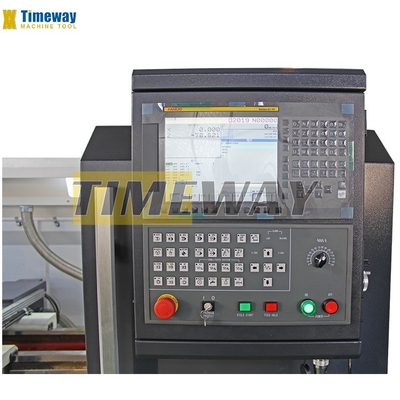

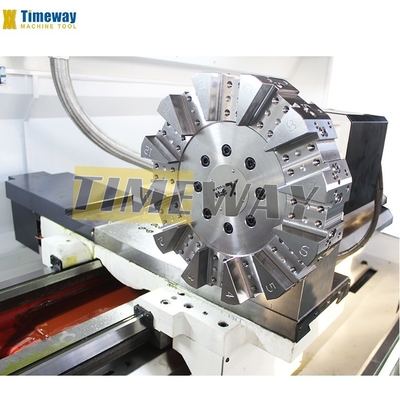

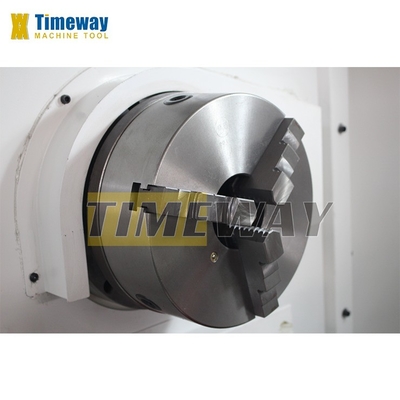

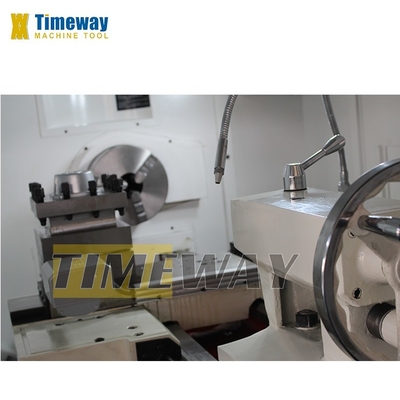

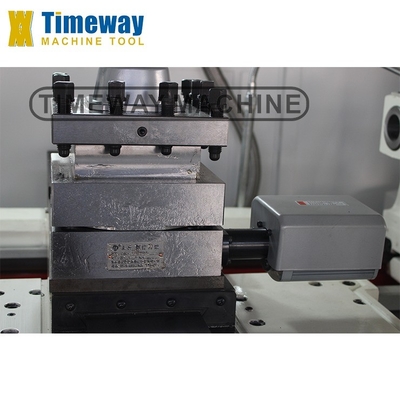

Standard accessories: GSK 980TDI， 3-jaw chuck, 4-station electronic tool post， Electronic handwheel， Lubrication system， Cooling system， Work lamp， Protection guard， Axial fan， Leveling blocks & bolts， Tools & tool-box， Operation manuals. Optional accessories: FANUC CNC system, SIEMENS CNC system, 4-jaw chuck, Horizontal 6-station tool post, Horizontal 8-station tool post, Pilot lamp, Air conditioner, Heat exchanger, Hydraulic chuck, Special fixture, Tool setter, Chain type chip conveyor.
PRODUCT SPECIFICATIONS
Specification | Unit | CK400 | CK500 | CK660 |
Max. swing over bed | mm | 420 | 500 | 660 |
Max.. swing over cross slide | mm | 210 | 290 | 430 |
Distance between centers | mm | 750 | 1000/1500/2000 | 1000/1500/2000 |
Max. turning length | mm | 750 | 1000/1500/2000 | 1000/1500/2000 |
Bed width | mm | 335 | 390 | 390 |
Spindle nose | mm | A2-6 | A2-8 | D10 |
Spindle bore | mm | 58 | 82 | 105 |
Spindle taper | - | MT6 | Metric 90 | Metric 90 |
Spindle speed (Manual steps) | rpm | 60-2000 (3) | 45-1600 (3) | 45-1600 (3) |
Center height | mm | 210 | 250 | 330 |
Chuck size | mm | 200 | 250 | 320 |
Cross travel (X) | mm | 295 | 295 | 365 |
Longitudinal travel (Z) | mm | 750 | 1000/1500/2000 | 1000/1500/2000 |
X/Z-axis rapid feed speed | mm/min | 8/10 | 8/12 | 8/12 |
X/Z-axis min. feed unit | mm | 0.001 | 0.001 | 0.001 |
X/Z-axis feed motor torque | NM | 5/7 | 5/7 | 7.5/10 |
Tool post type | - | V4 | V4 | V4 |
Tool section size | mm | 25x25 | 25x25 | 25x25 |
Tailstock quill diameter | mm | 65 | 75 | 75 |
Tailstock quill travel | mm | 150 | 150 | 150 |
Tailstock quill taper | - | M4 | M5 | M5 |
Main motor power | kw | 5.5 | 7.5 | 11/15 |
Coolant pump power | kw | 0.12 | 0.12 | 0.12 |
Machine weight | kg | 1800 | 2100/2300/2600 | 2100/2500/2800 |
Company Introduction
Exhibition & Training
Package & Transportation
Customers Visited
Why Choose Us
Why choose TIMEWAY MACHINE?
1 . High quality with competitive price;
2 . Professional R&D team and 25 years exportexperience;
3 . Exported more than 70 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
FAQ
Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; 2) Irrevocable LC at sight; 3) Western Union, MoneyGram, etc.
Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
