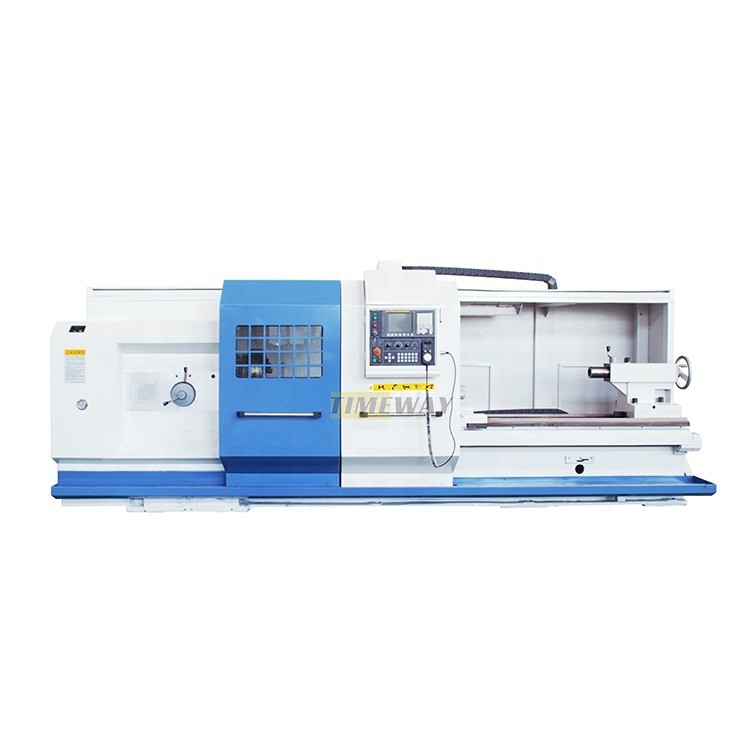

800mm Swing High Precision CNC Flat Bed Machine Tool with Positioning Accuracy ±0.03
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Model Number: | CK-800U |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $38,000.00/sets 1-1 sets |
| Packaging Details: | wooden case or plywood case |
| Supply Ability: | 300 Set/Sets per Year |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 3000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Medium Duty |
| Width Of Bed (mm): | 800 Mm | Spindle Motor Power(kW): | 15 |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 470 Mm | Travel (Z Axis)(mm): | 1620 Mm |
| Positioning Accuracy (mm): | ±0.03 | Repeatability (X/Y/Z) (mm): | ±0.012 |
| Dimension(L*W*H): | 4500/5100/6200x2040x1855mm | Voltage: | As Customers, Request |
| Tool Post Stations: | 4 | Weight (KG): | 5800 |
| Warranty: | 1 Year | Key Selling Points: | Automatic |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Automatic Grade: | Automatic | CNC Or Not: | CNC |
| High Precision CNC Lathe: | Flat Bed Type CNC Lathe | Tailstock Quill Travel: | 250mm |
| X/Z-axis Positioning Accuracy: | 0.03/0.04mm | X/Z-axis Repositioning Accuracy: | 0.012/0.016mm |
| Roughness: | Ra1.6um | Max. Swing Over Bed: | 800mm |
| Machine Weight: | 5800kg | Condition: | New |
| Applicable Industries: | Garment Shops, Farms, Retail, Energy & Mining | Showroom Location: | Canada, United States, Italy, Germany, South Africa |
| Marketing Type: | Ordinary Product | Core Components: | Bearing, Motor, Gear, PLC, Pressure Vessel, Engine |
| Max. Spindle Speed (r.p.m): | 1250 R.p.m | Spindle Bore(mm): | 104 |
| Max. Turned Length (mm): | 3000 | Port: | China Port |
Product Description

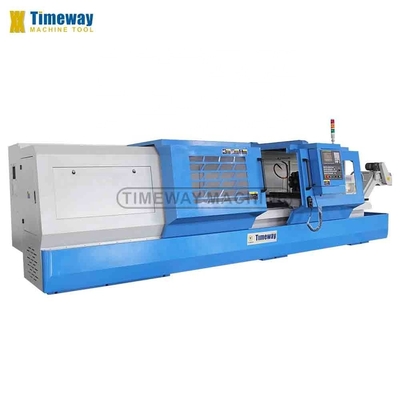

High Precision CNC Lather for Sale / CNC Flat Bed Machine Tool with 800mm Swing

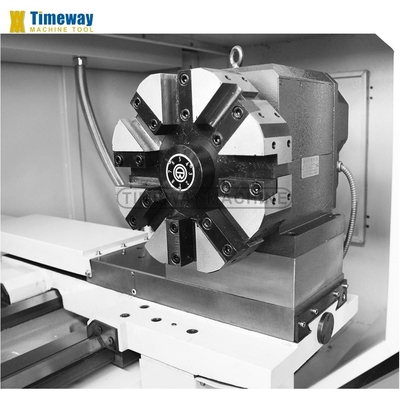

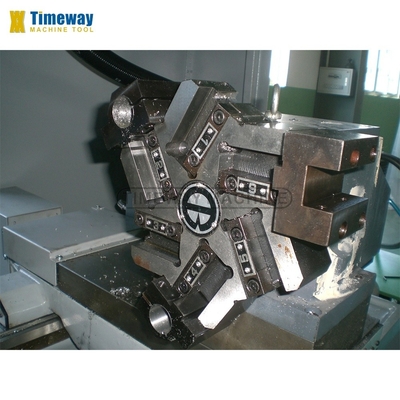

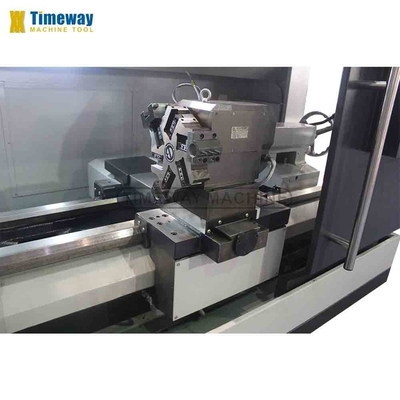

Standard accessories: GSK 980TDI, 3-jaw chuck, 4-station electronic tool post, Electronic handwheel, Lubrication system, Cooling system, Work lamp, Protection guard, Axial fan, Leveling blocks & bolts, Tools & tool-box, Operation manuals. Optional accessories: FANUC CNC system, SIEMENS CNC system, 4-jaw chuck, Horizontal 6-station tool post, Horizontal 8-station tool post, Pilot lamp, Air conditioner, Heat exchanger, Hydraulic chuck, Special fixture, Tool setter, Chain type chip conveyor.
PRODUCT SPECIFICATIONS
Specification | Unit | CK-600U | CK-800U | CK6180E |
Max. swing over bed | mm | 630 | 800 | 800 |
Max.. swing over cross slide | mm | 350 | 520 | 480 |
Distance between centers | mm | 1500/3000 | 1500/3000 | 1620/2210/3120 |
Max. turning length | mm | 1500/3000 | 1500/3000 | 1620/2210/3120 |
Bed width | mm | 600 | 600 | 600 |
Spindle nose | mm | A2-11 | A2-11 | C11 |
Spindle bore | mm | 104 | 104 | 105 |
Spindle taper | - | Metric | Metric | Metric |
Spindle speed (steps) | rpm | 11-1250 (3), automatic | 11-1250 (3), automatic | 45-950 (3), Manual |
Center height | mm | 315 | 400 | 400 |
Chuck size | mm | 325 | 325 | 325 |
Cross travel (X) | mm | 420 | 420 | 470 |
Longitudinal travel (Z) | mm | 1500/3000 | 1500/3000 | 1620/2210/3120 |
X/Z-axis rapid feed speed | mm/min | 4/8 | 4/8 | 6/8 |
X/Z-axis min. feed unit | mm | 0.001 | 0.001 | 0.001 |
X-axis feed motor torque | NM | 10 | 10 | 15 |
Z-axis feed motor torque | NM | 15/30 | 15/30 | 18/23/30 |
Tool post type | - | V4/H6 | V4/H6 | V4 |
Tool section size | mm | 32x32 | 32x32 | 32x32 |
Tailstock quill diameter | mm | 100 | 100 | 100 |
Tailstock quill travel | mm | 250 | 250 | 250 |
Tailstock quill taper | - | MT5 | MT5 | MT5 |
Main motor power | kw | 11 | 15 | 11 |
Coolant pump power | kw | 0.12 | 0.12 | 0.12 |
Working accuracy | mm | IT6 | IT6 | IT6 |
X/Z-axis positioning accuracy | mm | 0.03/0.04 | 0.03/0.04 | 0.03/0.04 |
X/Z-axis repositioning accuracy | mm | 0.012/0.016 | 0.012/0.016 | 0.012/0.016 |
Roughness | um | Ra1.6 | Ra1.6 | Ra1.6 |
Machine dimensions (LxWxH) | mm | 4307/5785ⅹ2040ⅹ1855 | 4307/5785ⅹ2040ⅹ1855 | 4500/5100/6200ⅹ2040ⅹ1855 |
Machine weight | kg | 5800/7200 | 5800/7200 | 5400/5750/7080 |
