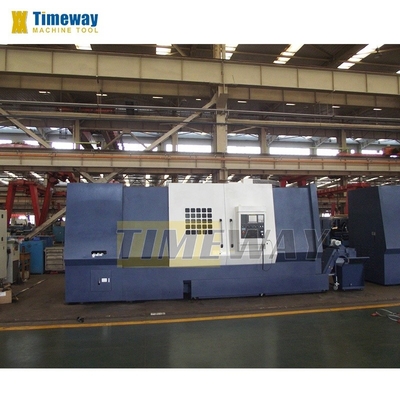

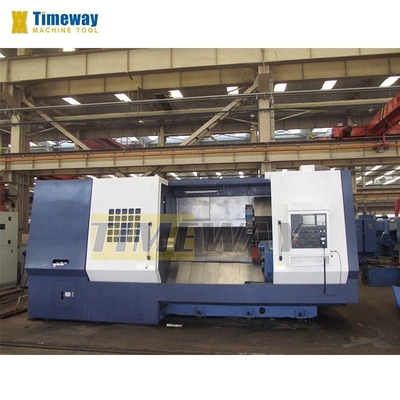

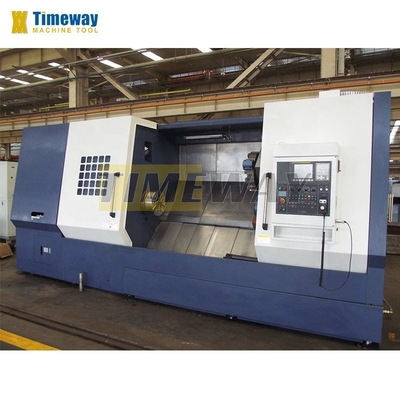

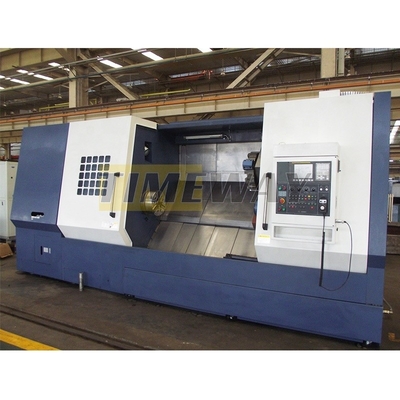

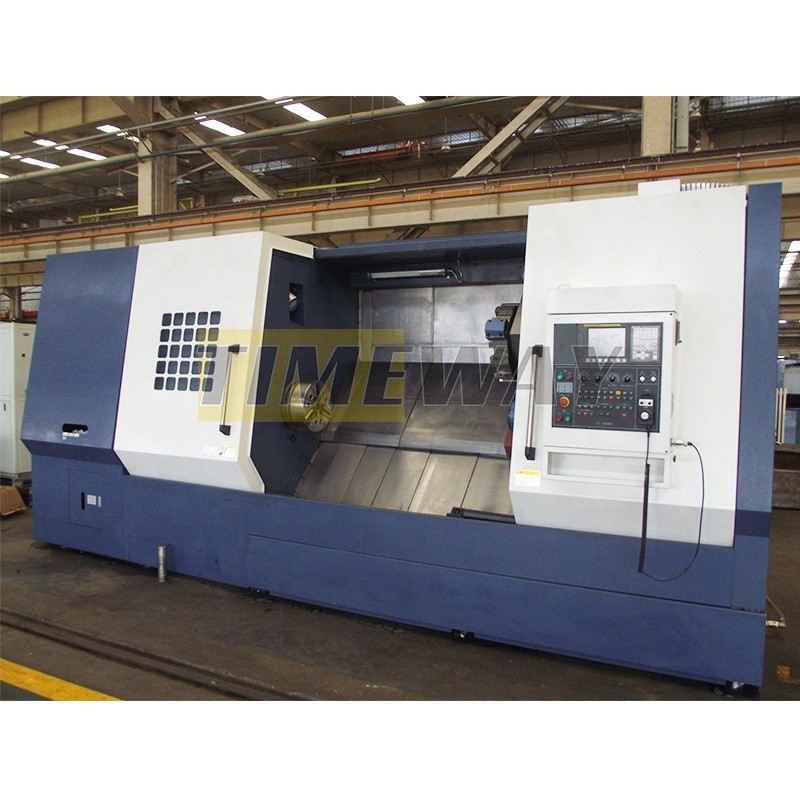

Max. Spindle Speed 2000 r.p.m 4-axis Horizontal CNC Lathe Ideal for Volume Production
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Model Number: | AK-45 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $56,800.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 850 Mm |
|---|---|---|---|
| Structure: | Slant Bed Lathe | Machining Capacity: | Heavy Duty |
| Width Of Bed (mm): | 45 Mm | Spindle Motor Power(kW): | 100 Kw |
| No. Of Spindles: | Single | Number Of Axes: | 3 |
| Travel (X Axis)(mm): | 450 Mm | Travel (Z Axis)(mm): | 1450 Mm |
| Positioning Accuracy (mm): | ±0.002 Mm | Repeatability (X/Y/Z) (mm): | ±0.002 Mm |
| Dimension(L*W*H): | 6360x2350x2600 Mm | Voltage: | 220/380V |
| CNC Control System: | FANUC | Tool Post Stations: | 4 |
| Weight (KG): | 15000 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Machine Type: | Slant Bed CNC Lathe | CNC Or Not: | CNC |
| Keyword: | Slant Bed Lathe | Max.swing Over Bed: | 850 Mm |
| Max. Turning Length: | 1420 Mm | Cross Travel (X): | 450 Mm |
| Longitudinal Travel (Z): | 1450 Mm | Spindle Bore: | 131 Mm |
| Main Motor Power: | 100 Kw | CNC System: | FANUC Or SIEMENS |
| Condition: | New | Toolpost Brand: | Hydex |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant | Showroom Location: | Egypt, Canada, Turkey, Italy, Philippines, Indonesia, India, Russia, Thailand, Colombia, South Africa, Uzbekistan |
| Max. Spindle Speed (r.p.m): | 2000 R.p.m | Spindle Bore(mm): | 131 Mm |
| Marketing Type: | New Product 2021 | Core Components: | Bearing, Pump, Gear, Other |
| Port: | China Port | ||
Product Description
Products Description
Specification | Unit | AK-45 |
Max.swing over bed | mm | 850 |
Max. turning diameter | mm | 800 |
Max. length of workpiece | mm | 1500/2000/3000 |
Max. turning length | mm | 1420/1920/2920 |
Cross travel (X) | mm | 450 |
Longitudinal travel (Z) | mm | 1450/1950/2950 |
X-axis rapid feed speed | m/min | 12 |
Z-axis rapid feed speed | m/min | 15 |
X/Z-axis feed speed | mm/min | 1260 |
Spindle speed range | rpm | 10-2000 |
Spindle nose | - | A2-11 |
Spindle bore | mm | 131 |
Hydraulic chuck size | inch | 15"/18" |
Front bearing inner diameter | mm | 200/240 |
Tool post type | - | H12 |
Tool section size (turning) | mm | 25x25 |
Tool section size (boring) | mm | 60 |
Tool change time | sec | 11 |
Tailstock travel | mm | 400/1900/2900 |
Tailstock quill diameter | mm | 140 |
Tailstock quill taper | - | MT6 |
Tailstock quill travel | mm | 130 |
Main motor power | kw | 100 |
Total power | kw | 130 |
Working accuracy | mm | IT6 |
Roughness | µm | Ra0.8 |
Bed structure | - | 45° |
CNC system | - | FANUC or SIEMENS |
Machine length | mm | 6360/6860/7860 |
Machine width & height | mm | 2350x2600 |
Machine weight | tons | 15/16/18 |
* FANUC CNC system * Hydraulic chuck * Hydraulic turret * Hydraulic tailstock * Electronic handwheel * Lubrication system * Cooling system * Work lamp* Pilot lamp * Full protection guard * Heat exchanger * Chip conveyor * Leveling blocks & bolts * Tools & tool-box * Operation manuals | * SIEMENS CNC system * Hydraulic hollow chuck * Air conditioner * Tool setter * Chip conveyor |
