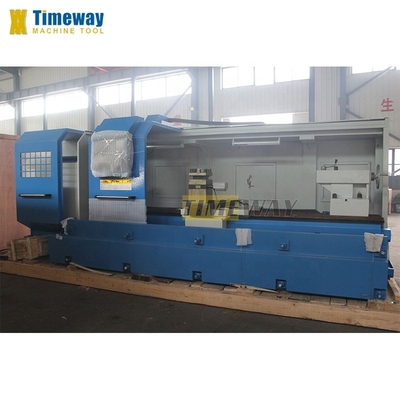

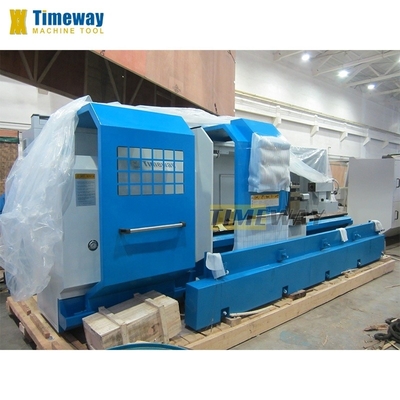

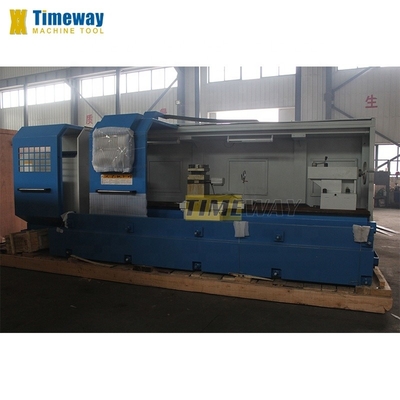

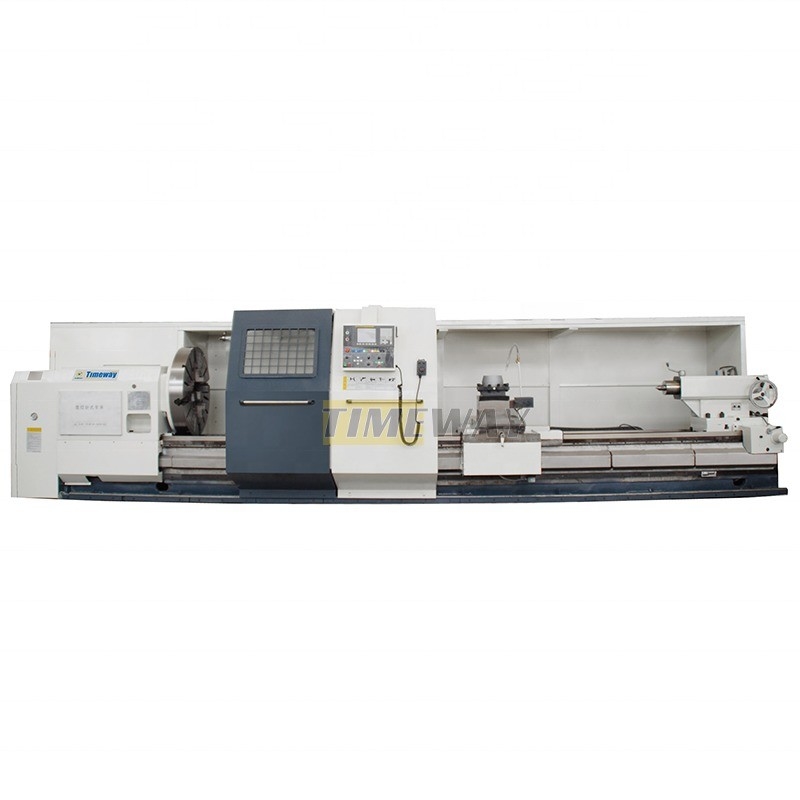

AK 1000 CNC Heavy Duty Horizontal Lathe For Industrial Manufacturing 4800KG Weight
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | AK-800 AK-1000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $78,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 3000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Heavy Duty |
| Max. Weight Of Workpiece(kg): | 3000 | Width Of Bed (mm): | 600 Mm |
| Spindle Motor Power(kW): | 15 | No. Of Spindles: | Single |
| Number Of Axes: | 2 | Travel (X Axis)(mm): | 420 Mm |
| Travel (Z Axis)(mm): | 420 Mm | Positioning Accuracy (mm): | ±0.008 |
| Repeatability (X/Y/Z) (mm): | ±0.002 | Dimension(L*W*H): | 3605x2219x1830mm |
| Voltage: | 220/380V | CNC Control System: | FANUC |
| Tool Post Stations: | 6, 4 | Weight (KG): | 4800 |
| Warranty: | 1 Year | Key Selling Points: | High Productivity |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | CNC |
| Machine Type: | Flat Bed CNC Lathe | Name: | Metal Cnc Lathe |
| Keyword: | Automatic CNC Lathe Machine | Function: | Machining Metal |
| Precision: | High Precision Machine | Color: | Customers' Requirement |
| Spindle Speed: | 8-800rpm | Spindle Nose: | C11 |
| Process Usage: | Metal-Cutting CNC Machine Tools | Condition: | New |
| Spindle Bore(mm): | 100 | Toolpost Brand: | Hongda |
| Showroom Location: | Turkey, United Kingdom, United States, France, Germany, Pakistan, India, Russia, Spain, South Korea, South Africa, Japan | Marketing Type: | Ordinary Product |
| Year: | 2023 | Max. Spindle Speed (r.p.m): | 800 R.p.m |
| Max. Turned Length (mm): | 8000 | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Other |
| Core Components: | Bearing, Motor, Gear, Engine, Other | ||
Product Description
Products Description
Specification | Unit | AK-800 | AK-1000 | |
Max. swing over bed | mm | 800 | 1000 | |
Max.. swing over cross slide | mm | 480 | 680 | |
Distance between centers | mm | 1000/1500/2000/3000/4000/5000/6000/8000 | ||
Max. turning length | mm | 850/1350/1850/2850/3850/4850/5850/7850 | ||
Bed width | mm | 600 | 600 | |
Loading capacity | kg | 3000 | 3000 | |
Spindle nose | mm | C11 (C15 optional) | C11 (C15 optional) | |
Spindle bore | mm | 100 (140 optional) | 100 (140 optional) | |
Spindle taper | - | Metric 120 (Metric 150 optional) | Metric 120 (Metric 150 optional) | |
Spindle speed (Manual steps) | rpm | 6-750 (18) | 6-750 (18) | |
Spindle speed (Manual 4steps stepless) | rpm | 8-800 | 8-800 | |
Spindle speed (Hydraulic 4steps, stepless) | rpm | 8-800 | 8-800 | |
Center height | mm | 400 | 500 | |
Chuck size | mm | 400 | 400 | |
X/Z-axis min. feed unit | mm | 0.001/0.001 | 0.001/0.001 | |
X/Z-axis rapid feed speed | mm/min | 4000/5000 | 4000/5000 | |
Cross travel (X) | mm | 420 | 420 | |

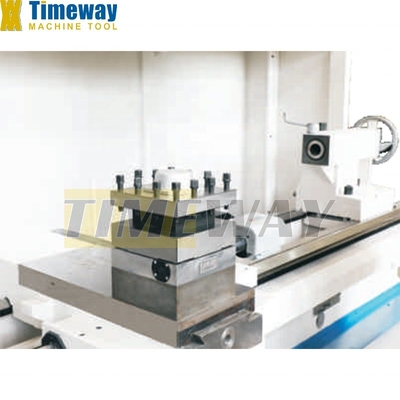

Tool post type | - | V4 (V6/H6/H8 optional) | V4 (V6/H6/H8 optional) | |
Tool change time | s | 2.4 | 2.4 | |
Turret repeat positioning accuracy | mm | 0.008 | 0.008 | |
Tool section size | mm | 40x40 | 40x40 | |
Tailstock quill diameter | mm | 100 | 100 | |
Tailstock quill travel | mm | 250 | 250 | |
Tailstock quill taper | - | MT6 (MT5 optional) | MT6 (MT5 optional) | |
CNC system | - | FANUC/GSK/SIEMENS | FANUC/GSK/SIEMENS | |
Working accuracy | - | IT6 | IT6 | |
Surface roughness | µm | Ra1.6 | Ra1.6 | |
Main motor power | kw | 15 | 15 | |
Machine weight | kg | 4800/5300/5600/6000/6800/7600/8250/9750 | ||
Machine length | mm | 3605/4105/4645/5600/6430/7600/8485/10485 | ||
Machine width | mm | 2219 | 2219 | |
Machine height | mm | 1830 | 2010 | |

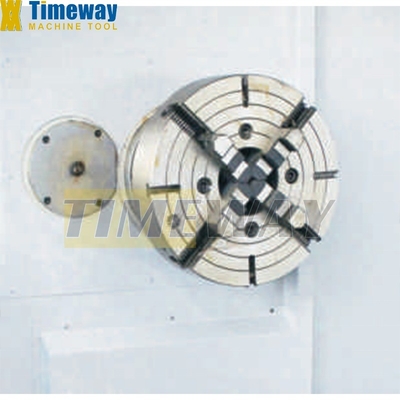

·FANUC/GSK SIEMENS CNC system ·3-jaw chuck ·4-station electric tool-post ·Work lamp ·Cooling system ·Semi-closed guard ·Manual pulse generator (MPG) ·Dead centers ·Oil gun ·Pilot lamp ·Automatic lubrication pump ·Manual moving tailstock ·Tools & tool-box ·Leveling wedge & bolts ·Operation manual (English). | ·4-jaw chuck ·Steady rest ·Follow rest ·Hydraulic chuck ·Penumatic chuck ·Hydraulic tailstock ·6-station tool-post ·Live centers ·Air conditioner ·Chip conveyor ·Full guard |
