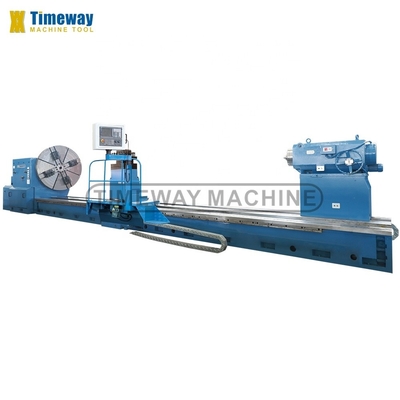

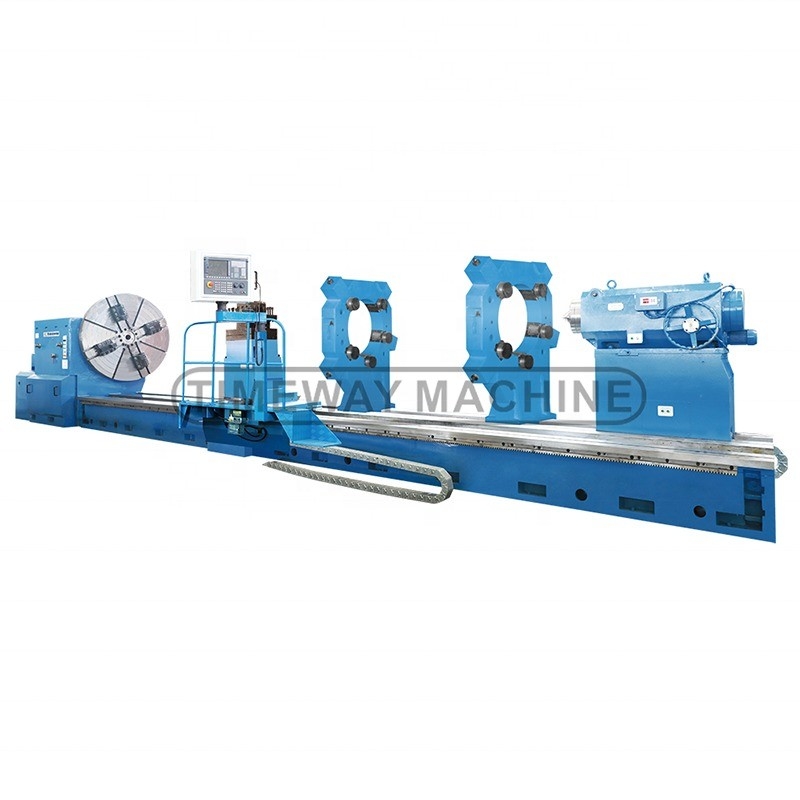

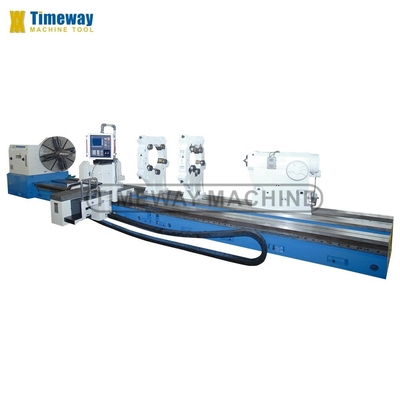

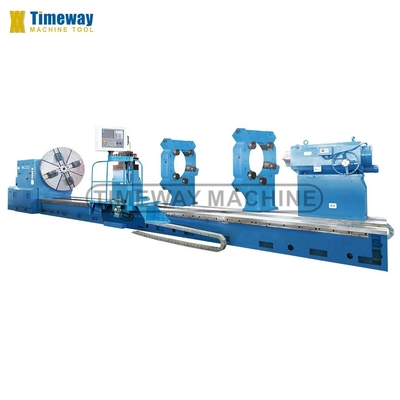

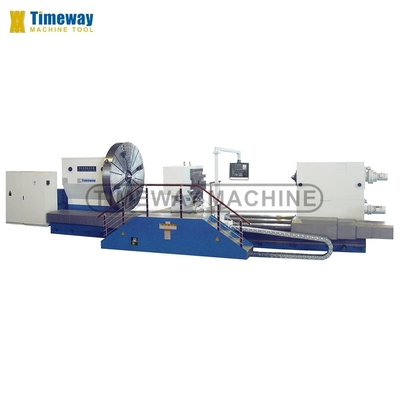

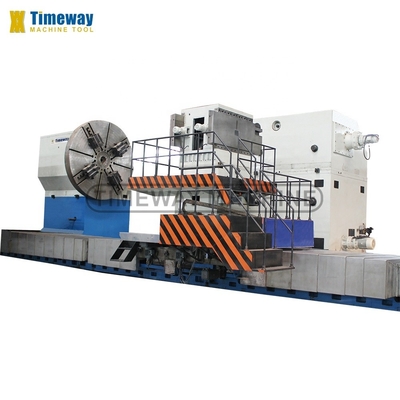

AK 2000H CNC Heavy Duty Horizontal Lathe High Productivity for Industrial Manufacturing
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
| Model Number: | AL-2000H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $50,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 20000 | Range Of Spindle Speed(r.p.m): | 0.8 - 160 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Width Of Bed (mm): | 1600 |
| Type: | Horizontal | Spindle Motor Power(kW): | 75 |
| Voltage: | 380/440V | Dimension(L*W*H): | 21577x2579x2580mm |
| Weight (KG): | 50000 KG | Warranty: | 1 Year |
| Key Selling Points: | Multifunctional | Marketing Type: | Hot Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | Nomal |
| Function: | Machining Metal | Max Turning Length: | 4000-20000mm |
| Precision: | High Precision Machine | Color: | Customers' Requirement |
| Usage: | Metal Parts Machining | Machine Type: | Horizontal Metal Turning Lathe Machine |
| Product Name: | Manual Metal Lathe Machine | Keyword: | Universal Metal Lathe |
| Product Type: | Horizontal Universal Lathe | Condition: | New |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant | Showroom Location: | Egypt, Canada, United Kingdom, United States, Italy, France, Germany, Viet Nam, Peru, Indonesia, Russia, Spain, South Korea, UAE, Romania, Kazakhstan, Nigeria, Japan |
| Core Components: | Bearing, Pump, Gear, Motor, Gearbox, Other, PLC, Pressure Vessel, Engine | Spindle Bore(mm): | 140 |
| Max. Turned Length (mm): | 20000 Mm | Year: | 2024 |
Product Description
CNC Heavy Duty Horizontal Lathe
Products Description
√ FANUC/GSK/SIEMENS CNC system √ 4-jaw chuck √ 4-station electric tool-post √ Work lamp √ Cooling system √ Manual pulse generator (MPG) √ Dead centers √ Oil gun √ Pilot lamp √ Automatic lubrication pump √ Electric moving tailstock √ Tools & tool-box √ Leveling wedge & bolts √ Operation manual (English) | _ Steady rest _ Roller support _ Other tool-post _ Live centers _ Air conditioner _ Chip conveyor |
Specification | Unit | AK-1600H | AK-2000H |
Max. swing over bed | mm | 1600 | 2000 |
Max.. swing over cross slide | mm | 1250 | 1600 |
Distance between centers | mm | 4000-20000 | 4000-20000 |
Bed width | mm | 1600 (3 slideways ) | 1600 (3 slideways ) |
Loading capaciity | tons | 25/32/40 | 25/32/40 |
Spindle speed range | rpm | 0.8~160 (stepless) | 0.8~160 (stepless) |
Longitudinal travel | mm | 4000-20000 | 4000-20000 |
Main motor power | kw | 75 | 75 |
Rapid feed motor power | kw | 1.5 | 1.5 |
Machine Details
Chuck：
- Standard 4-jaw independent chuck to clamping special-shape parts.
4-stations electric turret:
- Adopt famous brand electric turret, high positioning accuracy.
CNC system:
SIEMENS, FANUC, MITSUBISHI, FAGOR, KND, HNC, GSK, etc. for you choice.
Electric moving tailstock:
Flexible and simple operation, to reduce labor intensity and increase operating pleasure.
CE-norm electric cabinet:
Clear and neat electric layout;
Adopt CE standard electric components.
Automatic lubrication pump:
Automatically and intermittently lubricate each guide rails to extend the service life of the machine.
4-stations vertical turret:
Standard
6-stations vertical turret:
Optional
6-stations horizontal turret:
Optional
Test - roundness & cylindricity:
Precision turning the external surface of the bar, test accuracy:
Roundness: less than 0.01mm;
Cylindricity: less than 0.025/300mm
Test - verticality:
Precision turning the end surface of the disc, test accuracy:
Verticality: less than 0.02/300mm
Test - roughness:
Precision turning the external surface of the bar, test accuracy: Roughness: Ra1.6um
Threads turning test:
Fine turning taper threads (Taper: 1:16, Thread pitch: 3.175mm), after testing by special measuring device, it can meet accumulative error of pitch to 0.015/25.4mm.
Comprehensive testing parts:
All CNC lathes must make a final cutting process after all standard inspections of the machine, through cutting external surface, steps, arc surface, tapered surface, etc., in order to inspect stability of CNC system and overall performance of the machine.
Positive Comments From Customers
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
