V4 Tool Post CNC Heavy Duty Horizontal Lathe 13500KG for High Precision Machining
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
| Model Number: | AK-1250C; AK-1400C; |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $34,599.00/sets 1-1 sets |
| Packaging Details: | wooden case or plywood case, pallet |
| Supply Ability: | 800 Set/Sets per Year |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 3000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Heavy Duty |
| Max. Weight Of Workpiece(kg): | 10000 | Width Of Bed (mm): | 330 Mm |
| Spindle Motor Power(kW): | 30 | No. Of Spindles: | Single |
| Number Of Axes: | 2 | Travel (X Axis)(mm): | 700 Mm |
| Travel (Z Axis)(mm): | 3000 Mm | Positioning Accuracy (mm): | ±0.001 |
| Repeatability (X/Y/Z) (mm): | ±0.008 | Dimension(L*W*H): | 6520x2665x2680mm |
| Voltage: | 200V - 460V | CNC Control System: | SIEMENS 808D |
| Tool Post Stations: | 4 | Weight (KG): | 13500 |
| Warranty: | 1 Year | Key Selling Points: | Long Service Life |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Color: | Customized Option |
| Workpiece Length: | 3000mm | Machine Type: | CNC Heavy Duty Horizontal Lathe |
| Spindle Speed (manual): | 5-320rpm | Spindle Steps: | STEPLESS |
| Tool Post Type: | V4 | X-axis Rapid Feed Speed: | 3000mm/min |
| Z-axis Rapid Feed Speed: | 6000mm/min | Quill Dia.: | 300mm |
| Roughness: | Ra1.6um | Condition: | New |
| Spindle Bore(mm): | 130 | Applicable Industries: | Building Material Shops, Manufacturing Plant |
| Showroom Location: | United States, France, Germany, Philippines, Brazil, Pakistan, Mexico, Russia, South Korea, Chile, UAE, Algeria, Uzbekistan, Australia | Year: | 2023 |
| Max. Spindle Speed (r.p.m): | 320 R.p.m | Max. Turned Length (mm): | 2800 |
| Marketing Type: | Hot Product 2021 | Core Components: | Bearing, Motor, Gear, Gearbox, CNC System |
| Port: | China Seaport | ||
Product Description

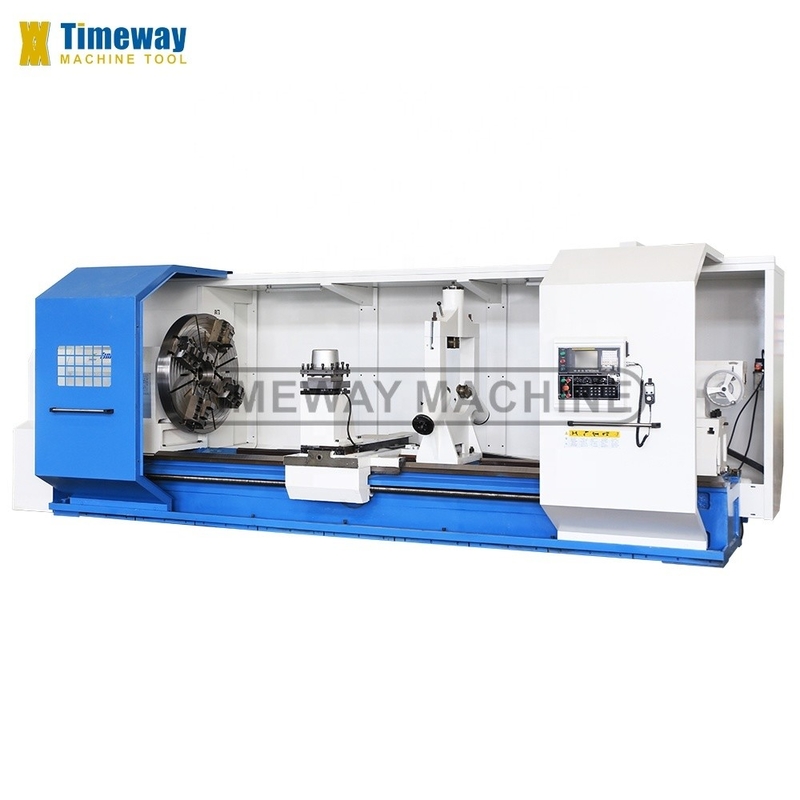

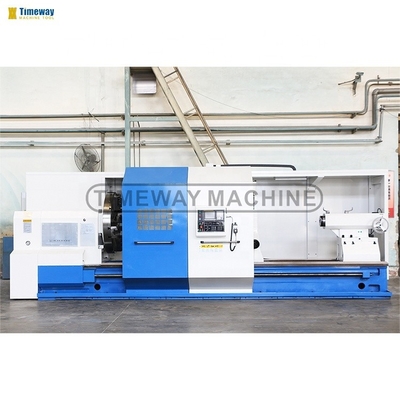

CNC Heavy Duty Horizontal Lathe
√ FANUC/GSK/SIEMENS CNC system √ 4-jaw chuck √ 4-station electric tool-post √ Work lamp √ Cooling system √ Semi-closed guard √ Manual pulse generator (MPG) √ Pilot lamp √ Automatic lubrication pump √ Tools & tool-box √ Leveling wedge & bolts √ Operation manual (English) | _Steady rest _Follow rest _ Roller support _6/8-station tool-post _ Air conditioner _ Chip conveyor _ Full guard |
Specification | Unit | AK-1250C | AK-1400C | |
Max. swing over bed | mm | 1250 | 1400 | |
Max.. swing over cross slide | mm | 880 | 1010 | |
Distance between centers | mm | 3000/4000/5000/6000/8000/10000/12000/- | ||
Max. turning length | mm | 2800/3800/4800/5800/7800/9800/11800/- | ||
Bed width | mm | 970 | 970 | |
Loading capacity | kg | 10000 (opt: 12000) | 6000 (opt: 8000) | |
Spindle bore | mm | 130 | 130 | |
Cross travel (X) | mm | 700 | 700 | |
CNC system | - | FANUC/GSK/SIEMENS | FANUC/GSK/SIEMENS | |
Main motor power | kw | 30 | 30 | |
Machine weight | kg | 13500/16500/18000/20000/22500/25000/28000/- | ||
Machine Details

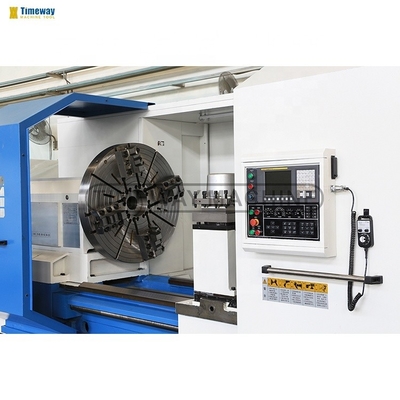

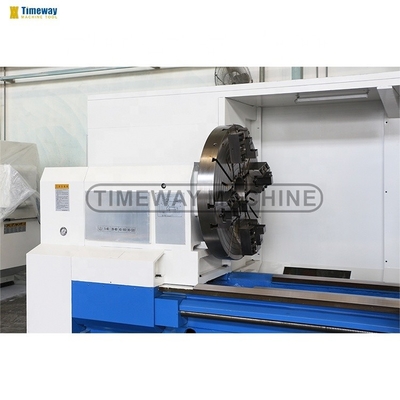

Chuck：
- 3-jaw chuck comes standard to quickly self-centering clamping parts
- Optional 4-jaw independent chuck and hydraulic chuck
4-stations electric turret:
- Adopt famous brand electric turret, high positioning accuracy.
- Optional quick changing tool post

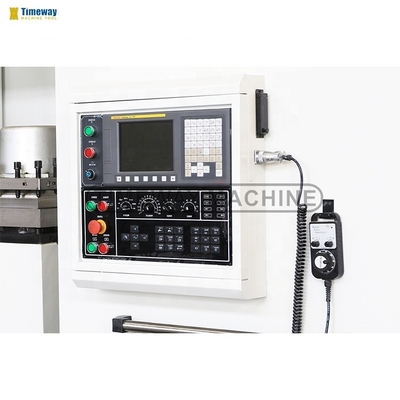

CNC system:
SIEMENS, FANUC, MITSUBISHI, FAGOR, KND, HNC, GSK, etc. for you choice.

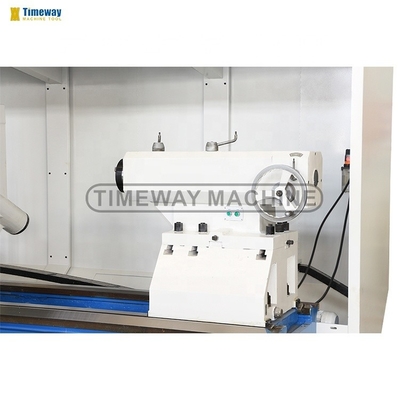

Manual moving tailstock:
Flexible and simple operation, to reduce labor intensity and increase operating pleasure.
CE-norm electric cabinet:
Clear and neat electric layout;
Adopt CE standard electric components.
Automatic lubrication pump:
Automatically and intermittently lubricate each guide rails to extend the service life of the machine.
4-stations vertical turret:
Standard
6-stations vertical turret:
Optional
6-stations horizontal turret:
Optional
Test - roundness & cylindricity:
Precision turning the external surface of the bar, test accuracy:
Roundness: less than 0.01mm;
Cylindricity: less than 0.025/300mm
Test - verticality:
Precision turning the end surface of the disc, test accuracy:
Verticality: less than 0.02/300mm
Test - roughness:
Precision turning the external surface of the bar, test accuracy: Roughness: Ra1.6um
Threads turning test:
Fine turning taper threads (Taper: 1:16, Thread pitch: 3.175mm), after testing by special measuring device, it can meet accumulative error of pitch to 0.015/25.4mm.
Comprehensive testing parts:
All CNC lathes must make a final cutting process after all standard inspections of the machine, through cutting external surface, steps, arc surface, tapered surface, etc., in order to inspect stability of CNC system and overall performance of the machine.
