High Precision Horizontal Slant Bed CNC Lathe with Perfect Design from Professional
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC TIMEWAY |
| Model Number: | AK-10/AK-15/AK-25/AK-35/AK-45 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $18,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Type: | Horizontal, Horizontal Slant Bed CNC Lathe | Max. Length Of Workpiece (mm): | 950 |
|---|---|---|---|
| Structure: | Slant Bed Lathe | Machining Capacity: | Medium Duty |
| Max. Weight Of Workpiece(kg): | 300 | Width Of Bed (mm): | 200 Mm |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 210 Mm | Travel (Z Axis)(mm): | 1050 Mm |
| Positioning Accuracy (mm): | ±0.001 | Repeatability (X/Y/Z) (mm): | ±0.001 |
| Dimension(L*W*H): | 3440x1500x1500 | Voltage: | 220V/380V |
| CNC Control System: | FANUC | Tool Post Stations: | 4 |
| Weight (KG): | 4500 | Warranty: | 1 Year |
| Key Selling Points: | Automatic | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Range Of Spindle Speed(r.p.m): | 15 - 1260 R.p.m | Travel (Y Axis)(mm): | 2000 Mm |
| Spindle Taper: | ISO40, BT40, BT30 | Cutting Torque: | 1250 N.m |
| Rapid Feed Speed(mm/min): | 12 - 1260 Mm/min | Feed Speed(mm/min): | 12 - 1260 Mm/min |
| Min. Time Of Tool Change(s): | 6 | Max.swing Over Bed: | 400 |
| Max, Turning Diameter: | 300 | Max. Length Of Workpiece: | 600/850/100 |
| Cross Travel (X): | 210 | Longitudinal Travel (Z): | 530/710/1050 |
| X-axis Rapid Feed Speed: | 12 | Z-axis Rapid Feed Speed: | 15 |
| X/Z-axis Feed Speec: | 1260 | Spindle Speed Range: | 45-4500 |
Product Description
Summary
1.The full-function CNC lathe has a semi-closed-loop control system that increases productivity through high-speed cutting. It is suitable for machining all kinds of complex shapes of shaft, sleeve, disk parts, especially for multi-species, a small batch of turning processing. 2.Easy clamping, process adaptability, high processing efficiency, low scrap rate, good consistency of the finished product, and reducing the technical proficiency requirements of workers, easy programming, simple operation, which makes it is widely selected as the ideal small and medium-sized mechanical processing equipment. 3.The bed adopts the box-shaped structure, one-piece moulding casting technology, and 45-degree slant.
Products Description

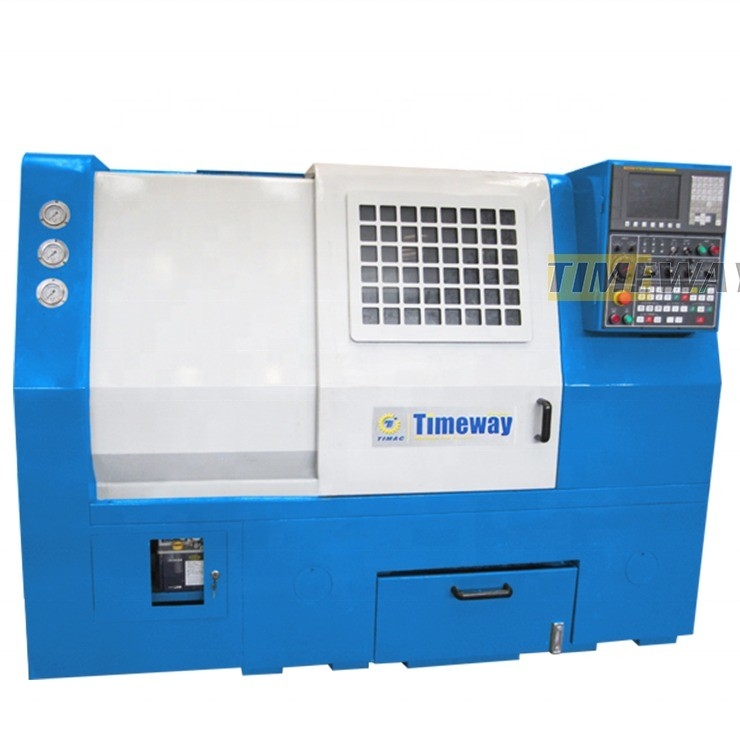

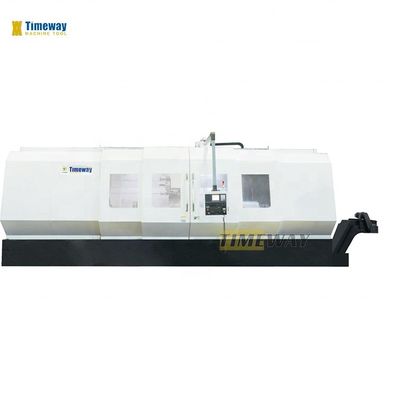

Slant Bed CNC Lathe
1.The unique construction developed using FEA techniques to provide maximum stiffness under the heaviest cutting conditions. 2.Main motor uses FANUC wide-area high-performance AC servo motor, stepless speed, spindle box without gear structure, high speed and low noise. 3.High quality hydraulic solid chuck and high-speed fuel cylinder, and equipped with foot switch, it is easier to quickly clamping the workpieces. 4.The Hydraulic tailstock is standard equipment, tailstock sleeve is controlled by programmable. CNC system uses the internationally renowned FANUC, SIEMENS or China GSK AC servo control system, strong functions and stable performances. 5.This CNC lathe has fully enclosed protection, and equipped with emergency stop safety button 6.The operation panel is about 1500mm from the ground, it is highly moderate, ergonomic, pleasant and easy to operate and understand the operation of the machine. 7.Automatic central lubrication, coolant system and chain conveyors extend intervals between maintenance and reduce down-times.
SPECIFICATION | UNIT | AK-10 | AK-15 | AK-25 | AK-35 | AK-45 |
Max.swing over bed | mm | 400 | 440 | 520 | 660 | B50 |
Max, turning diameter | mm | 300 | 300 | 420 | 550 | B00 |
Max. length of workpiece | mm | 600/850/100 | 600 | 625/1000/1500/2000/3000 | 890/1640/2000/3000 | 1500/2000/3000 |
Max.turning length | mm | 500/700/950 | 450 | 530/905/1405/1905/2905 | 780/1530/1890/2890 | 1420/1920/2920 |
Cross travel (X) | mm | 210 | 180 | 230 | 305 | 450 |
Longitudinal travel (Z) | mm | 530/710/1050 | 480 | 590/965/1465/1965/2965 | 855/1605/1965/2965 | 1450/1950/2950 |
Spindle speed range | rpm | 45-4500 | 50-4500 | 35-3500 | 25-2500 | 10-2000 |
Spindle bore | mm | 50 | 62 | 87 | 92 | 131 |
Main motor power | kw | 7.5 | 11 | 15/18.5 | 22/30 | 100 |
CNC svstem | FANUC or SIEMENS | |||||
Machine weight | tons | 3.5/4/4.5 | 4.5 | 5/5.5/6.5/7.5/8.5 | 8/10/11.5/15.5 | 15/16/18 |
FANUC , Hydraulic chuck, Hydraulic turret, Hydraulic tailstock, Electronic handwheel , Lubrication system, Cooling system, Work lamp, Pilot lamp, Full protection guard, Heat exchanger, Chip conveyor, Leveling blocks & bolts, Tools & tool-box, Operation manuals | SIEMENS CNC system, Hydraulic hollow chuck, Air conditioner, Tool setter, Chip conveyor. |
Positive Comments From Customers
Company Introduction

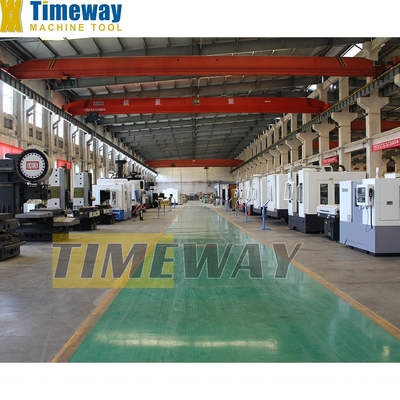

Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
