CK-80 Metal Slant Bed CNC Lathe Machine Manufacture for Standard Turning Diameter 460mm
Product Details:
| Place of Origin: | China |
| Brand Name: | Timeway |
| Model Number: | CK-80 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $60,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 750 |
|---|---|---|---|
| Structure: | Slant Bed Lathe | Machining Capacity: | Medium Duty |
| Width Of Bed (mm): | 350 Mm | Spindle Motor Power(kW): | 22 |
| No. Of Spindles: | Twin | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 400 Mm | Travel (Z Axis)(mm): | 860 Mm |
| Repeatability (X/Y/Z) (mm): | ±0.008 | Dimension(L*W*H): | 3800*2200*2200 |
| Voltage: | 220v/380v | CNC Control System: | FANUC |
| Tool Post Stations: | 12, 8, 10, 6, 4 | Weight (KG): | 5800 |
| Warranty: | 1 Year | Key Selling Points: | Automatic |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Max. Swing Over Bed: | 800 |
| Max. Swing Over Cross Slide: | 640 | Standerd Turning Diameter: | 460 |
| Spindle Speed: | 1500 | Spindle Nose: | A2-11 |
| Spindle Bore: | 112 | Cross Travel (X): | 400 |
| Longitudinal Travel(Z): | 860 | Machine Type: | Flat Bed CNC Lathe |
| Max. Turning Length: | 750 | Condition: | New |
| Toolpost Brand: | Hongda | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Restaurant |
| Showroom Location: | United States, Italy, Viet Nam, Brazil, India | Marketing Type: | New Product 2020 |
| Core Components: | Motor | Year: | 2023 |
| Max. Spindle Speed (r.p.m): | 1500 R.p.m | Spindle Bore(mm): | 112 |
| Max. Turned Length (mm): | 750 | ||
Product Description
Summary
This type slant bed CNC lathe is semi-closed loop CNC machine ,whicn is suitable to turn various complicated shaft,sleeve and disk-like workpieces.
Product Description
slant bed CNC lathe
Specification
SPECIFICATION | UNIT | CK-80 |
Max. swing over bed: Max. swing over cross slide: Standard turning diameter: Max. turning diameter: Max. turning length: Max. diameter of bar: Spindle speed: Spindle nose: Spindle bore: Chuck size: Cross travel (X): Longitudinal travel (Z): X/Z-axis rapid feed speed: Hydraulic tool post type: Tool section size: Tailstock quill diameter: Tailstock quill travel: Tailstock quill taper: Bed structure: Guideway type: Working accuracy: X-axis repositioning accuracy: Z-axis repositioning accuracy: Roughness: Main motor power: Power supply: Machine dimensions (L×W×H): Machine weight: | mm mm mm mm mm mm rpm - mm mm mm mm m/min - mm mm mm - - - mm mm mm - kw kva mm kg | 800 640 460 660 2500 90 1500 A2-11 112 380 400 2640 12/16 125-12T 25×25/Φ40 150 150 MT5, rotary 30° Integral bed Linear IT6 0.008 0.01/0.013 Ra1.6um 22 50 5100×2200×2200 7000 |

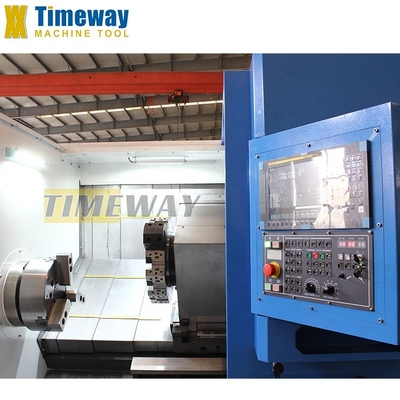

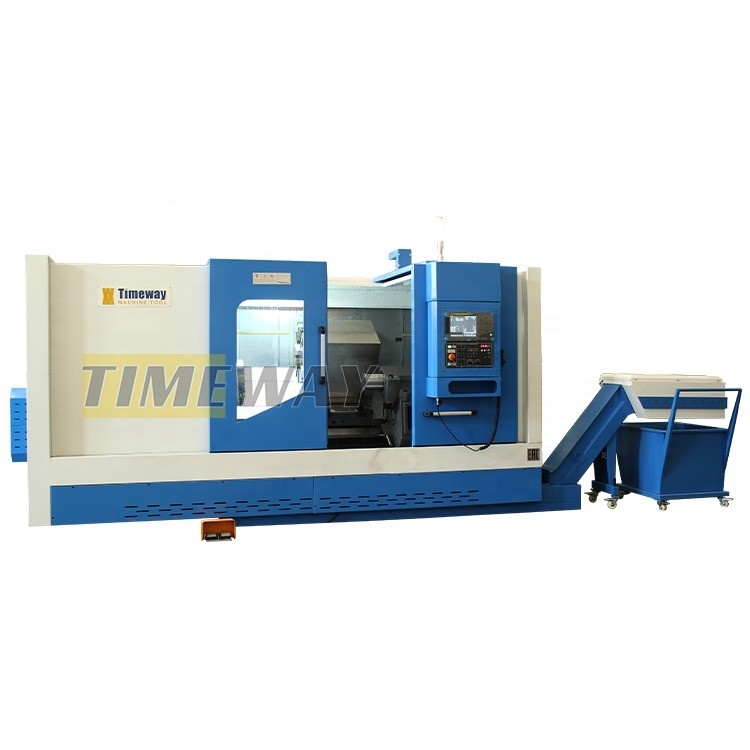

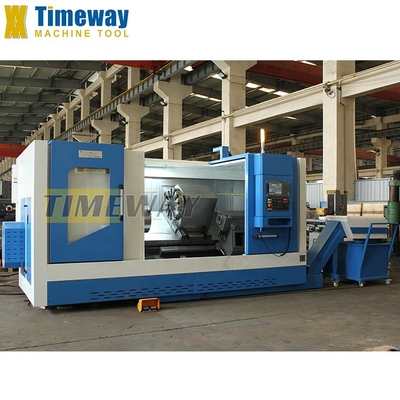

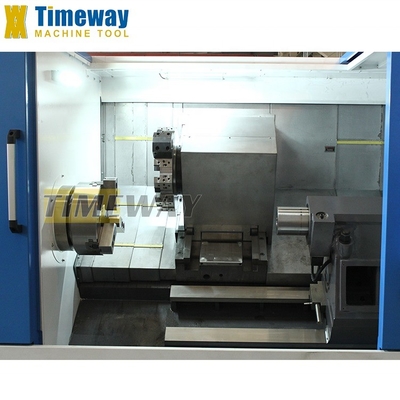

Detailed Images
Accessories
STANDARD ACCESSORIES:
* FANUC 0i-TF CNC system

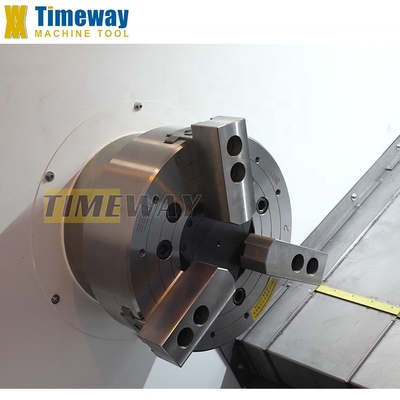

* Hydraulic chuck

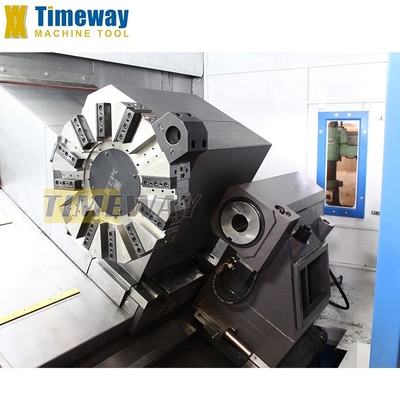

* 8/12-station tool turret
* Hydraulic tool post
* Electronic handwheel
* Lubrication system
* Cooling system
* Work lamp
* Pilot lamp
* Protection guard
* Heat exchanger
* Leveling blocks & bolts
* Tool & tool-box
* Operation manuals
* 8/12-station tool turret
* Hydraulic tool post
* Electronic handwheel
* Lubrication system
* Cooling system
* Work lamp
* Pilot lamp
* Protection guard
* Heat exchanger
* Leveling blocks & bolts
* Tool & tool-box
* Operation manuals
OPTIONAL ACCESSORIES:
* GSK,SIEMENS CNC system
* Air conditioner
* Tool setter
* Chain type chip conveyor
* Tool setter
* Chain type chip conveyor
