Single Column CNC Vertical Lathe Machine VLK Series with and Cutting Torque 17.5 N.m
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timac |
| Model Number: | VLK1250E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $152,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Type: | VERTICAL | Max. Length Of Workpiece (mm): | 1000 Mm |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Max. Weight Of Workpiece(kg): | 1000 |
| Width Of Bed (mm): | 0 Mm | No. Of Spindles: | Twin |
| Number Of Axes: | 2 | Travel (X Axis)(mm): | 800 Mm |
| Travel (Z Axis)(mm): | 650 Mm | Positioning Accuracy (mm): | 0.03 Mm |
| Repeatability (X/Y/Z) (mm): | 0.012 | Dimension(L*W*H): | 478*257*440 |
| Voltage: | Customer's Requirement | CNC Control System: | Siemens |
| Tool Post Stations: | 4 | Weight (KG): | 11000 |
| Warranty: | 1 Year | Key Selling Points: | Automatic |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Range Of Spindle Speed(r.p.m): | 2 - 320 R.p.m |
| Travel (Y Axis)(mm): | 0 Mm | Spindle Taper: | BT40 |
| Cutting Torque: | 17.5 N.m | Rapid Feed Speed(mm/min): | 0 - 2000 Mm/min |
| Feed Speed(mm/min): | 0 - 2000 Mm/min | Min. Time Of Tool Change(s): | 0.7 |
| Machine Type: | Single Column Vertical Lathe | Keyword: | Cnc Vertical Lathe |
| Max. Swing Diameter: | 1250 | Max. Turning Diameter: | 1250 |
| Max. Height Of Workpiece: | 1000 | Max. Weight Of Workpiece: | 5000 |
| Main Motor Power: | 30 | Worktable Diameter: | 1010 |
| X-axis Travel: | -20~800 | Z-axis Travel: | 650 |
Product Description
Product Description

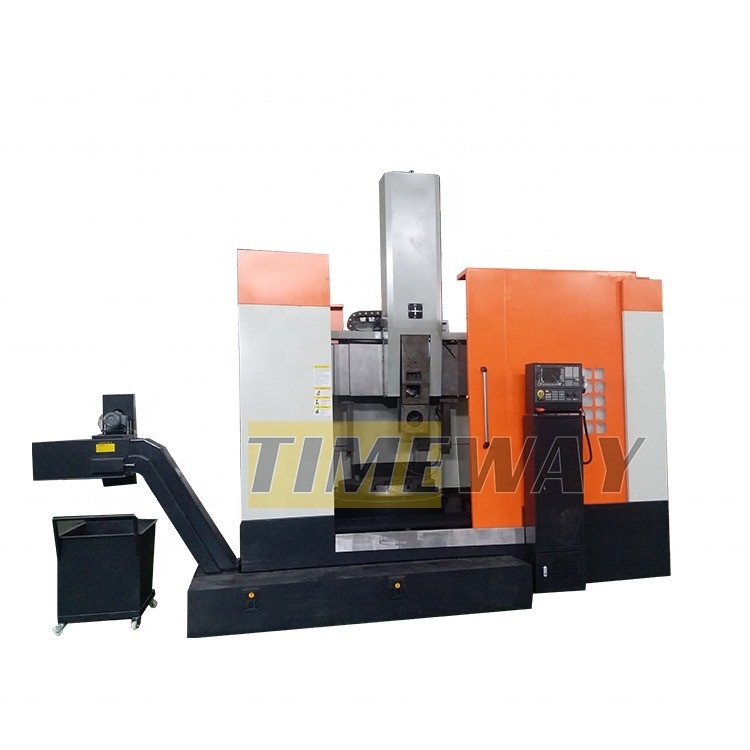

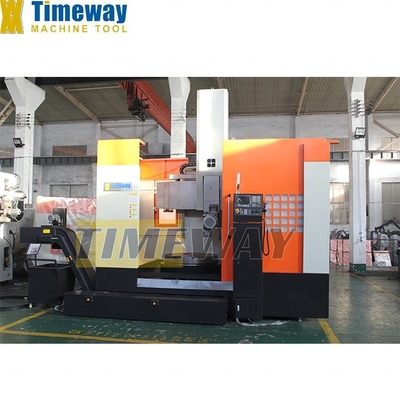

Single Column CNC Vertical Lathe
Features:
1. The series CNC single column vertical lathe is designed by absorbing modern advanced design and manufacturing techniques and using CAD optimization design method, using the latest design concept and equipping with domestic and foreign advanced features.
2. The machine is suitable for high speed steel and carbide cutting tools, processing workpieces of all ferrous and non-ferrous metals and some nonmetal materials.
3. The machine can complete the process of rough and finish turning inside and outside cylinder, inside and outside cone surface, plane surface, the circular arc surface and grooving.
2. The machine is suitable for high speed steel and carbide cutting tools, processing workpieces of all ferrous and non-ferrous metals and some nonmetal materials.
3. The machine can complete the process of rough and finish turning inside and outside cylinder, inside and outside cone surface, plane surface, the circular arc surface and grooving.
Specification
SPECIFICATION | UNIT | VLK1250E |
Max. swing diameter | mm | 1250 |
Max. turning diameter | mm | 1250 |
Max. height of workpiece | mm | 1000 |
Max. weight of workpiece | kg | 5000 |
Main motor power | kw | 30 |
Worktable diameter | mm | 1010 |
X-axis travel | mm | -20~800 |
Z-axis travel | mm | 650 |
Power capacity | Kva | 37 |
Machine weight | kg | 11000 |
Machine dimensions | cm | 478*257*440 |
Standard：
* Automatic lubrication system
* Full eclosed shield
* Electrical cabinet with air condition
* Precise oil cooler

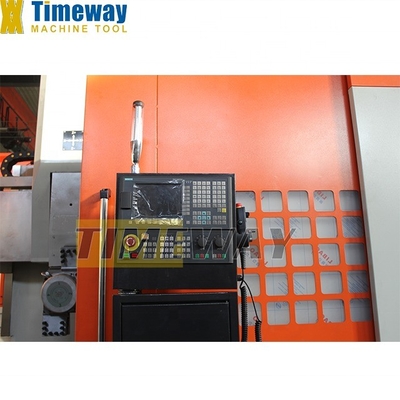

* SIEMENS 808D
* Automatic chip removal(side removal)
* Full eclosed shield
* Electrical cabinet with air condition
* Precise oil cooler
* SIEMENS 808D
* Automatic chip removal(side removal)
Optional：
* SIEMENS 828D * FANUC 0i-TF
* special fixture
* special fixture
Machine Details

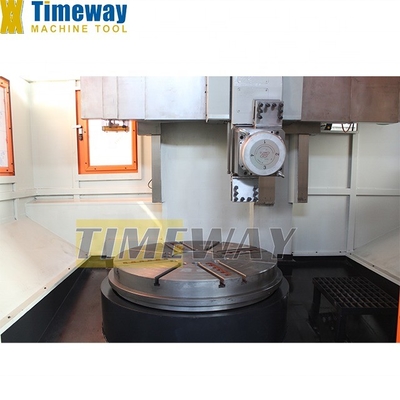

>> Worktable uses integrated, high rigidity, high precision and short fixed-type spindle structure, the spindle is equipped with a set high precision thrust ball bearing and a set double row short cylindrical roller bearing. Compact structure, at the same time bear radial load, the axial load and tilting moment, and under the overloading elastic deformation is small, improved the precision of the rotation of the worktable and carrying capacity.
>> Four station electrical tool-post: high positioning accuracy, large clamping force, large loading capacity, stable and reliable. The unique dovetail cutter holder, more accurate positioning, greater clamping force.
>> Customers can choose FANUC, SIEMENS, or KND, other CNC systems.
>> According to special requirements, the whole machine cover, chip conveyor.
Packing & Delivery
Some pictures about our packing
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Since our company established, we have obtained many certificates. The above picture is for your reference. We will continue to provide excellent machine tools for domestic and foreign users.
Customer Visiting
Some pictures about our exhibition
This is a picture of clients visiting our company when we hold exhibitions around the world
FAQ
Q: Why choose TIMEWAY MACHINE?
A:1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A:(1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
