High Precision Flat Bed Lathe CNC Heavy Duty Horizontal Lathe for Industry Production
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timac |
| Model Number: | AK-1250 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $45,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 3000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Medium Duty |
| Width Of Bed (mm): | 0 Mm | Spindle Motor Power(kW): | 30 |
| No. Of Spindles: | Twin | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 850 Mm | Travel (Z Axis)(mm): | 1100 Mm |
| Positioning Accuracy (mm): | ±0.001 | Repeatability (X/Y/Z) (mm): | ±0.001 |
| Dimension(L*W*H): | 6400*3200*2220 | CNC Control System: | FANUC |
| Tool Post Stations: | 4 | Weight (KG): | 15000 |
| Warranty: | 1 Year | Key Selling Points: | Automatic |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Max. Swing Over Bed: | 1250mm |
| Key Word: | Heavy Duty Horizontal Cnc Lathe | Max. Swing Over Cross Slide: | 900mm |
| Distance Between Centers: | 3000mm | Max. Turning Length: | 2800mm |
| Bed Width: | 1100mm | Chuck Size (4-jaw): | 1250mm |
| Loading Capacity: | 16 (opt: 20) | Spindle Nose: | A2-15mm |
| Spindle Taper: | Metric 140 | Condition: | New |
| Spindle Bore(mm): | 100 | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Retail, Construction Works , Energy & Mining |
| Showroom Location: | Egypt, Turkey, Romania | Core Components: | PLC |
| Year: | 2022 | Max. Spindle Speed (r.p.m): | 320 R.p.m |
| Max. Turned Length (mm): | 3000 | Marketing Type: | New Product 2021 |
Product Description
Summary
* This series of machine is based on the international market, the latest development trend of CNC lathes developed with semi-closed-loop control of the universal CNC lathes.
* The machine is widely used, flexible operation, suitable for processing all kinds of complex shape of the shaft, disk parts, such as turning inner and outer cylindrical surface, conical surface, circular surface, end face, slot, chamfer, Especially for multi-species, small batch of turns processing, process adaptability, processing efficiency, low scrap rate, good consistency of the finished product, can reduce the technical requirements of the workers skilled.
Product Description

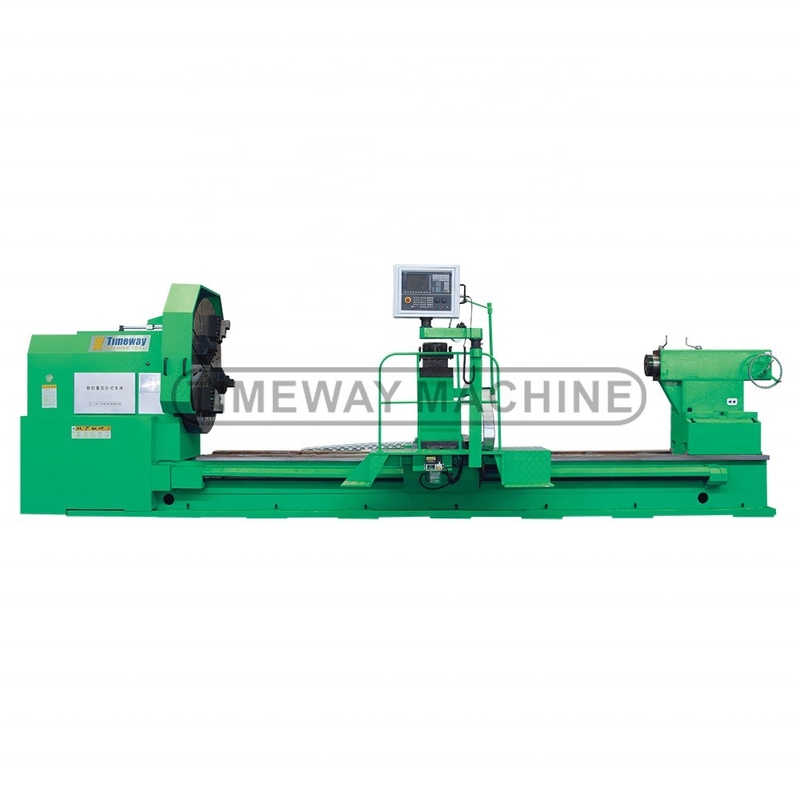

CNC Heavy Duty Horizontal Lathe AK-1250

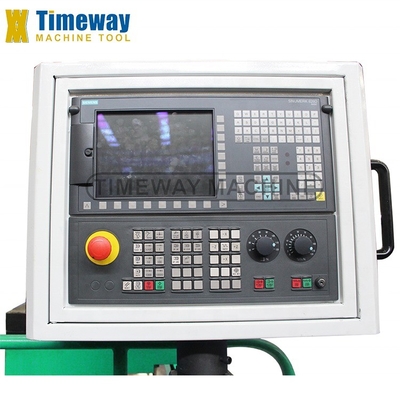

CNC system: Chuck： Tailstock:
SIEMENS, FANUC, MITSUBISHI, FAGOR, KND, HNC, GSK, etc. for you choice.

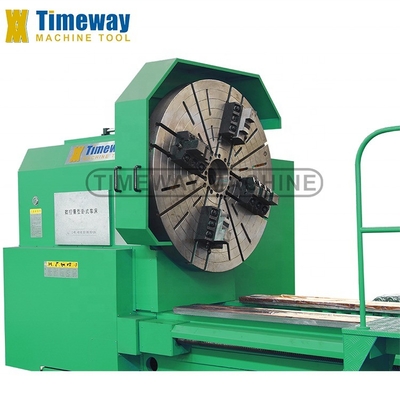

Standard 4-jaw independent chuck to clamping special-shape parts.

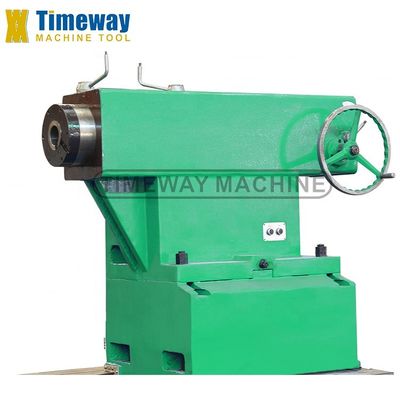

Manual moving tailstock comes standard, the electric moving taisltock comes optional.
Specification
SPECIFICATION | UNIT | AK-1250 |
Max. swing over cross slide | mm | 900 |
Distance between centers | mm | 3000 |
Max. turning length | mm | 2800 |
Bed width | mm | 1100 |
Chuck size (4-jaw) | mm | 1250 |
Loading capacity | tons | 16 (opt: 20) |
Spindle nose | mm | A2-15 |
Spindle taper | - | Metric 140 |
X/Z-axis rapid feed speed | mm/min | 4000/6000 |
Cross travel (X) | mm | 850 |
Main motor power | kw | 30 |
Machine weight | kg | 15000 |
Machine length | mm | 6400 |
Machine width | mm | 3200 |
Machine height | mm | 2220 |
Standard accessories:
√ FANUC/GSK/SIEMENS CNC system
√ 4-jaw chuck
√ 4-station electric tool-post
√ Work lamp
√ Cooling system
√ Semi-closed guard
√ Manual pulse generator (MPG)
√ Dead centers
√ Oil gun
√ Pilot lamp
√ Automatic lubrication pump
√ Manual moving tailstock
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)
√ 4-station electric tool-post
√ Work lamp
√ Cooling system
√ Semi-closed guard
√ Manual pulse generator (MPG)
√ Dead centers
√ Oil gun
√ Pilot lamp
√ Automatic lubrication pump
√ Manual moving tailstock
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)
Optional accessories:
√ Electric moving tailstock√ Steady rest
√ Follow rest
√ 6-station tool-post
√ Live centers
√ Air conditioner
√ Chip conveyor
√ Full guard
√ Follow rest
√ 6-station tool-post
√ Live centers
√ Air conditioner
√ Chip conveyor
√ Full guard
Packing & Delivery
This is the picture of the packaging in our factory！You can see our package is standardized and centralized , then they will be shipped to your designated place.
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Exhibition & Training
This is a photo of our participation in the exhibition
FAQ
Q: Why choose TIMEWAY MACHINE?
A:1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A:(1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
