Precision CNC Lathe Machine with 365mm X Axis Travel and Multifunctional Capabilities
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway/TIMAC |
| Model Number: | CK-660 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $30,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 2000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Medium Duty |
| Width Of Bed (mm): | 660 Mm | Spindle Motor Power(kW): | 15(30min)/11(rated) |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 365 Mm | Travel (Z Axis)(mm): | 2000 Mm |
| CNC Control System: | FANUC | Tool Post Stations: | 4 |
| Weight (KG): | 2800 | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Name: | Flat Bed CNC Lathe | Machine Type: | Flat Bed CNC Lathe |
| Model: | CK-660 | CNC System: | FANUC |
| Color: | Customers' Requirement | After-sales Service Provided: | 1 Year |
| Max. Swing Over Bed: | 660mm | Max.swing Over Cross Slide: | 430mm |
| Distance Between Centers: | 2000mm | Bed Width: | 390mm |
| Condition: | New | Spindle Bore(mm): | 105 |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining | Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, R |
| Core Components: | Bearing, Motor, PLC, Engine | Max. Spindle Speed (r.p.m): | 1600 R.p.m |
| Max. Turned Length (mm): | 2000 | Marketing Type: | Hot Product |
| Port: | China Port | ||
Product Description
Product Description

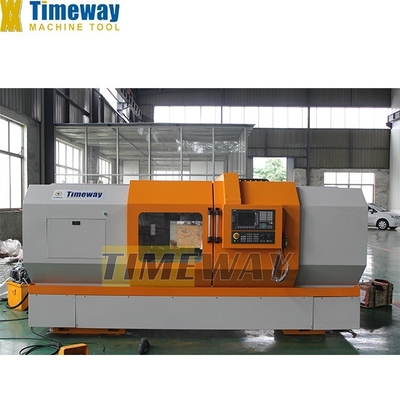

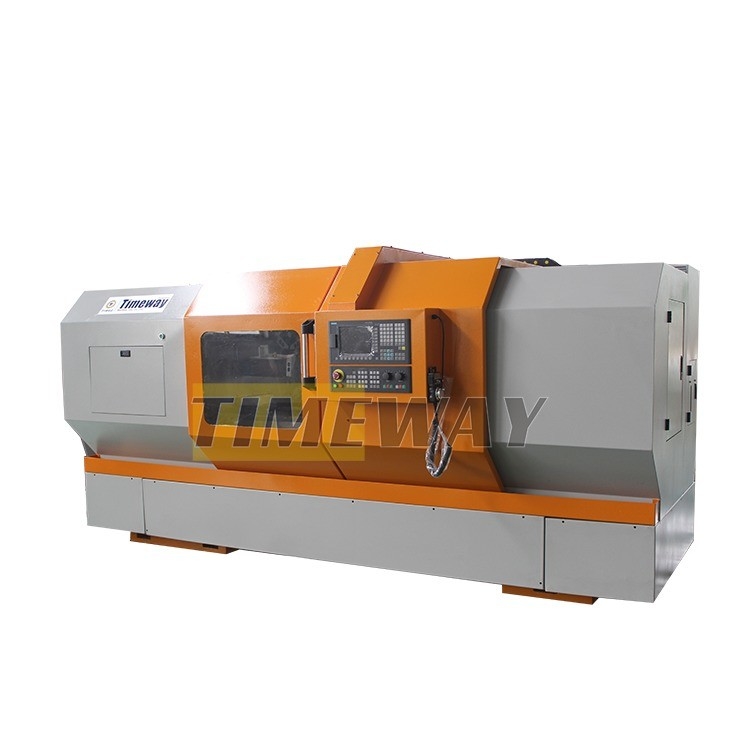

Flat Bed CNC Lathe CK-660
Specification
Specifications | Units | CK-500 | CK-560 | CK-660 | ||
Max.swing over bed | mm | Φ530 | Φ560 | Φ660 | ||
Max.swing over carriage | mm | Φ310 | Φ330 | Φ430 | ||
Width of bed | mm | 405 | 405 | 405 | ||
Max.length of workpiece | mm | 750/1000/1500/2000/3000 | ||||
Max.turning length | mm | 650/900/1300/1900/2900 | ||||
Max.weight between center | - | A2-8 | A2-8 | D8 | ||
Spindle nose | mm | Φ80 | Φ80 | Φ105 | ||
Spindle bore | mm | MT7 | MT7 | Metric113 | ||

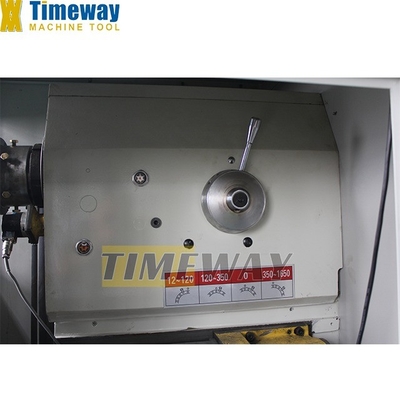

Steps of spindle speed (Manual) | - | 4 steps (variable) | 4 steps (variable) | 4 steps (variable) | ||
Range of spindle speed | rpm | 27-1630 | 27-1630 | 27-1630 | ||
Rapid feed for Z-axis | m/min | 10 | 10 | 10 | ||
Rapid feed for X-axis | m/min | 8 | 8 | 8 | ||
Max.travel of Z-axis | mm | 720/970/1470/1970/2970 | ||||
Max.travel of X-axis | mm | 300 | 320 | 365 | ||
Min.input | mm | 0.001 | 0.001 | 0.001 | ||
Tool post stations | - | V4/V6 | V4/V6 | V4/V6 | ||
Tool cross section | mm | 32x32 | 32x32 | 32x32 | ||
External diameter of tailstock sleeve | mm | Φ75 | Φ75 | Φ75 | ||
Taper of bore of tailstock sleeve | - | MT5 | MT5 | MT5 | ||
Max.traverse of tailstock sleeve | mm | 150 | 150 | 150 | ||
Power of main motor | kw | 7.5 | 7.5 | 11 | ||
Power of cooling pump | kw | 0.09 | 0.09 | 0.09 | ||
Overall dimensions(L x W x H) | mm | 2250/2500/3000/3500/4500x1250x1580 | ||||
Machine weight | kg | 2700/3000/3600/4100/4700 | 2800/3100/3700/4300/5300 | |||
Accessories
Standard Accessories:
FANUC CNC system
3-jaw chuck
4-station electronic tool post

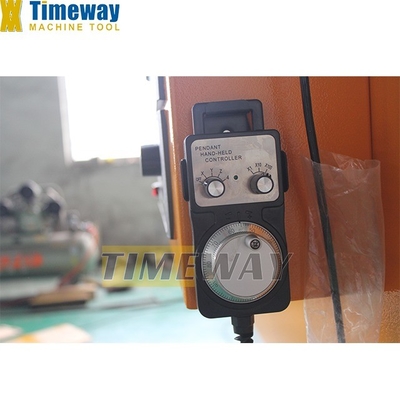

Electronic handwheel

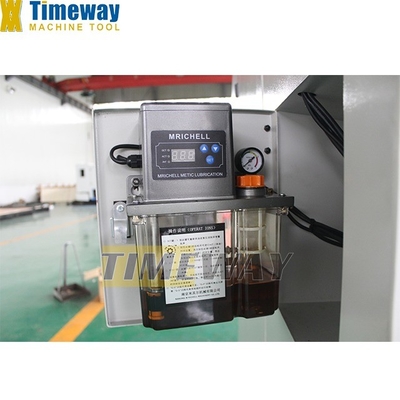

Lubrication system
Cooling system
Work lamp
Protection guard
Axial fan
Leveling blocks & bolts
Tools & tool-box
Operation manuals
3-jaw chuck
4-station electronic tool post
Electronic handwheel
Lubrication system
Cooling system
Work lamp
Protection guard
Axial fan
Leveling blocks & bolts
Tools & tool-box
Operation manuals
Optional Accessories:

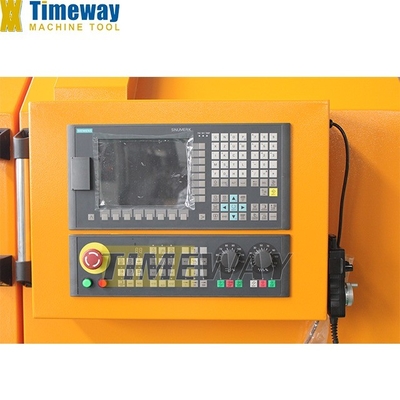

GSK CNC system,SIEMENS CNC system
4-jaw chuck
Horizontal 6-station tool post
Horizontal 8-station tool post
Pilot lamp
Air conditioner
Heat exchanger
Hydraulic chuck
Special fixture
Tool setter
Chain type chip conveyor
4-jaw chuck
Horizontal 6-station tool post
Horizontal 8-station tool post
Pilot lamp
Air conditioner
Heat exchanger
Hydraulic chuck
Special fixture
Tool setter
Chain type chip conveyor
