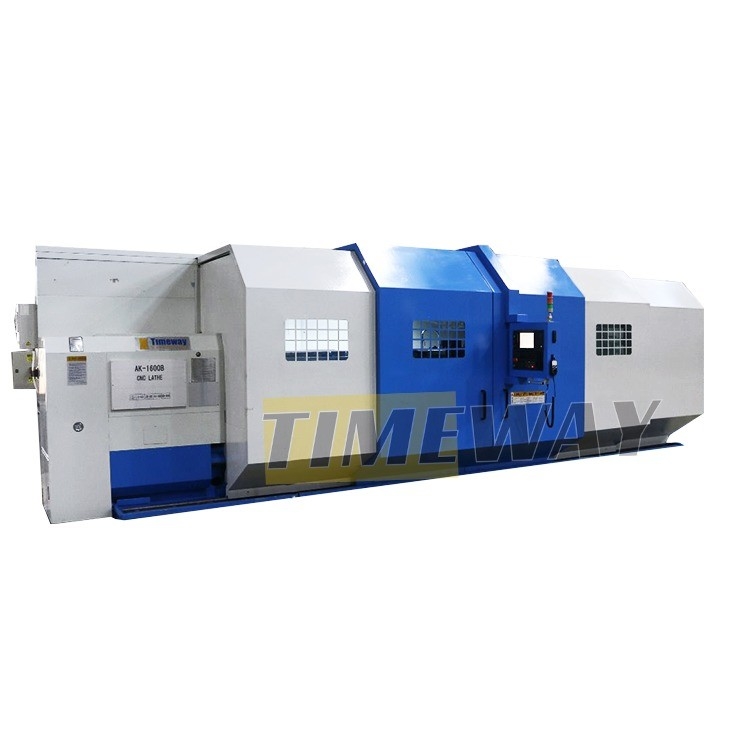

Large-Sized CNC Horizontal Lathe Machine Ideal for Heavy Duty and Precision Work
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | AK-1600B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $100,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1000 | Range Of Spindle Speed(r.p.m): | 5 - 320 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Width Of Bed (mm): | 750 |
| Type: | Horizontal | Spindle Motor Power(kW): | 30 |
| Dimension(L*W*H): | 4300*2780*2600 | Weight (KG): | 9800 KG |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Distance Between Centers: | 1000mm/1500mm/2000mm/3000mm | Loading Capacity: | 6000kg/8000kg |
| Spindle Bole: | 130mm | Machine Type: | Horizontal CNC Lathe |
| Name: | Cnc Lathe Machine | Keyword: | Turning Machine |
| CNC Or Not: | CNC | Color: | Customised |
| Precision: | High Precision Machine | Max. Swing Over Bed: | 1640mm |
| Condition: | New | Spindle Bore(mm): | 130 |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant | Showroom Location: | Turkey, United Kingdom, United States, Italy, France, Germany, Peru, Mexico |
| Core Components: | Bearing, Pump, PLC | Max. Turned Length (mm): | 730 Mm |
| Year: | 2020 | ||
Product Description
Product Description
Features:
1.This bed is the box-shaped structure, adopts high standard cast iron one molding casting, after the second aging treatment, with stable performance; guide-way width, good rigidity, anti-vibration ability; processed by medium-frequency hardening and machined by the imported guideway grinding machine, to ensure a long service life, high precision and good maintainability.
2.The spindle bore diameter is 100mm, with the heavy-duty bearings for three-point support, rotating stability, automatic forced circulation lubrication, making the transmission system is flexible and cooling effectively.
3.This series of lathe machine is used widely, flexible operation, suitable for processing all kinds of complex shapes of shafts, pipes, disk parts, such as turning inner and outer cylinder surface, conical surface, circular surface, end face, grooving chamfer, threading, especially for muti-species, small batch of turns processing, process adaptability, high processing efficiency, low scrap rate, good product consistency, easy programming, simple operation, reducing the technical requirements of workers, it is the ideal medium mechanical processing.
1.This bed is the box-shaped structure, adopts high standard cast iron one molding casting, after the second aging treatment, with stable performance; guide-way width, good rigidity, anti-vibration ability; processed by medium-frequency hardening and machined by the imported guideway grinding machine, to ensure a long service life, high precision and good maintainability.
2.The spindle bore diameter is 100mm, with the heavy-duty bearings for three-point support, rotating stability, automatic forced circulation lubrication, making the transmission system is flexible and cooling effectively.
3.This series of lathe machine is used widely, flexible operation, suitable for processing all kinds of complex shapes of shafts, pipes, disk parts, such as turning inner and outer cylinder surface, conical surface, circular surface, end face, grooving chamfer, threading, especially for muti-species, small batch of turns processing, process adaptability, high processing efficiency, low scrap rate, good product consistency, easy programming, simple operation, reducing the technical requirements of workers, it is the ideal medium mechanical processing.

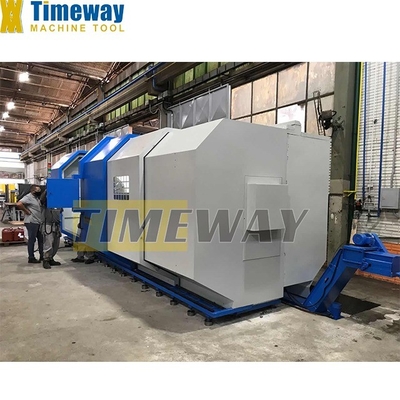

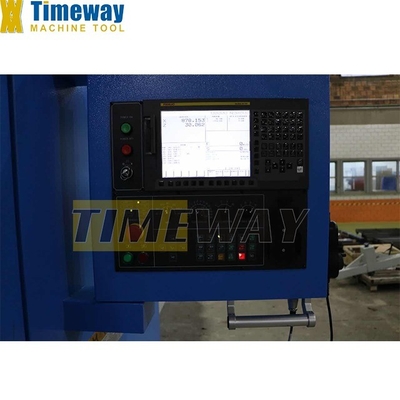

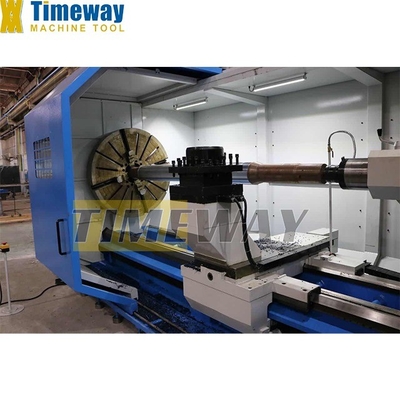

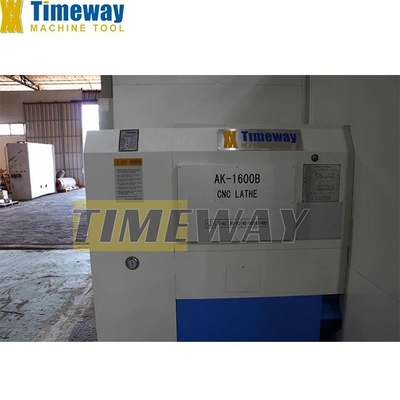

Detailed Images
Specification
SPECIFICATION | UNIT | AK-1600B |
Cross travel (X) | mm | 630 |
Dimension(L*W*H) | mm | 4300*2780*2600 |
Weight | kg | 9800 |
Max. swing over bed | mm | 1640 |
Max. swing over cross slide | mm | 1250 |
Distance between centers | mm | 1000 |
Max. turning length | mm | 730 |
Bed width | mm | 755 |
Loading capacity | kg | 6000 |
Spindle nose | mm | A2-15 |
Spindle bore | mm | 130 |
Main motor power | kw | 30 |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
FAQ
Q: Why choose TIMEWAY MACHINE?
A:1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A:(1)T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
