550mm Travel X Axis CNC Vertical Lathe Machine for High Speed Round Table Vertical Turning
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | VLK800E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $65,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | VERTICAL | Max. Length Of Workpiece (mm): | 800 |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Width Of Bed (mm): | 120 Mm |
| Spindle Motor Power(kW): | 22 | No. Of Spindles: | Single |
| Number Of Axes: | 2 | Travel (X Axis)(mm): | 550 Mm |
| Travel (Z Axis)(mm): | 650 Mm | Dimension(L*W*H): | 4020*3150*3700 |
| Voltage: | Customer's Requirement | CNC Control System: | Siemens808D |
| Tool Post Stations: | 4 | Weight (KG): | 8000 |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Machine Type: | Lathe Machine CNC |
| Max. Height Of Workpiece: | 800mm | CNC Or Not: | CNC Lathe Machine |
| Name: | CNC Vertical Lathe | Keyword: | Automatic CNC Lathe Machine |
| Precision: | High Precision Machine | Color: | Customers' Requirement |
| Control System: | SIEMENS 808D | Model: | VLK800E |
| Usage: | Metal Parts Machining | Condition: | New |
| Spindle Bore(mm): | 86 | Applicable Industries: | Hotels, Building Material Shops, Machinery Repair Shops |
| Showroom Location: | Egypt, Turkey, Italy, Brazil, Peru, Indonesia, Mexico, Russia, Argentina | Marketing Type: | New Product 2020 |
| Core Components: | Bearing, PLC | Year: | 2023 |
| Max. Spindle Speed (r.p.m): | 315 R.p.m | Max. Turned Length (mm): | 800 |
| Port: | China Port | ||
Product Description
Product Description
Feature:
1. The series CNC single column vertical lathe is designed by absorbing modern advanced design and manufacturing techniques and using CAD optimization design method, using the latest design concept and equipping with domestic and foreign advanced features.
2. The machine is suitable for high speed steel and carbide cutting tools, processing workpieces of all ferrous and non-ferrous metals and some nonmetal materials.
Specification
SPECIFICATION | UNIT | VLK800E | VLK1250E | |
Max. swing diameter | mm | 950 | 1250 | |
Max. tuming diameter | mm | 800 | 1250 | |
Max, height of workpiece | mm | 800 | 1000 | |
Max, weight of workpiece | kg | 2000 | 5000 | |
Main motor power | kw | 22 | 30 | |
Worktable diameter | mm | 800 | 1010 | |
X-axis travel | mm | -20-550 | -20~800 | |
Z-axis travel | mm | 650 | 650 | |
CNC system | SIEMENS 808D | |||
Machine weight | kg | 8500 | 11000 | |
Machine dimensions (LxWxH) | cm | 430x238x429 | 478x257x440 | |
Chip conveyor | - | Chain type | Chain type | |

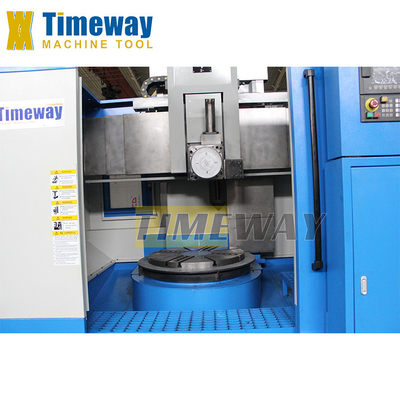

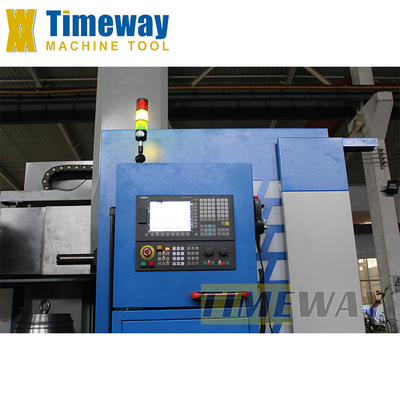

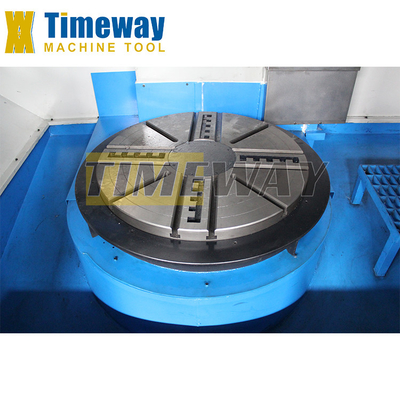

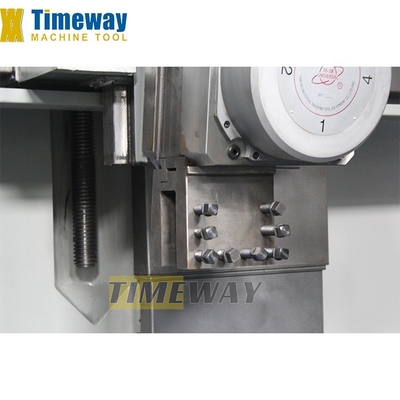

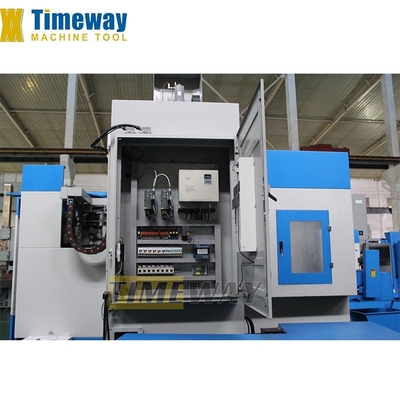

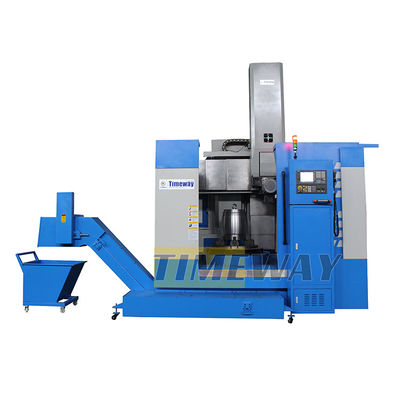

Detailed Images
Packing & Delivery
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, millingmachine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
FAQ
1. who are we?
We are based in Henan, China, start from 2010,sell to South America(20.00%),Africa(15.00%),Eastern Europe(15.00%),South Asia(10.00%),North America(10.00%),Oceania(10.00%),Western Europe(10.00%),Southeast Asia(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Lathe, CNC Lathe, CNC Milling Machine, Machining Center, Grinding Machine
4. why should you buy from us not from other suppliers?
Our factory have more than 50years experience of researching & producing lathe and heavy duty lathe, both conventional and CNC types, normal use and special use, etc.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Henan, China, start from 2010,sell to South America(20.00%),Africa(15.00%),Eastern Europe(15.00%),South Asia(10.00%),North America(10.00%),Oceania(10.00%),Western Europe(10.00%),Southeast Asia(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Lathe, CNC Lathe, CNC Milling Machine, Machining Center, Grinding Machine
4. why should you buy from us not from other suppliers?
Our factory have more than 50years experience of researching & producing lathe and heavy duty lathe, both conventional and CNC types, normal use and special use, etc.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
