Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
 |

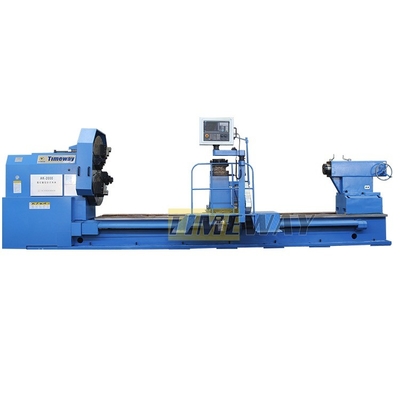

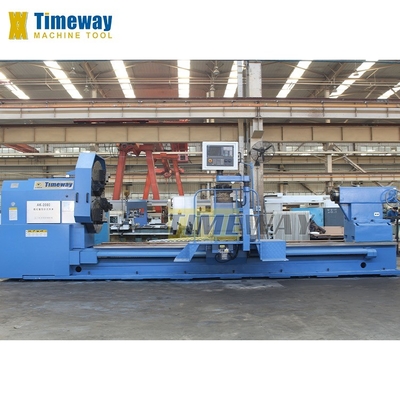

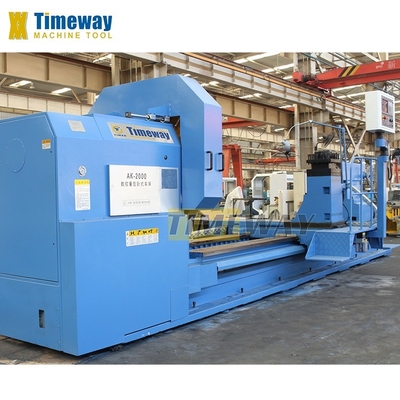

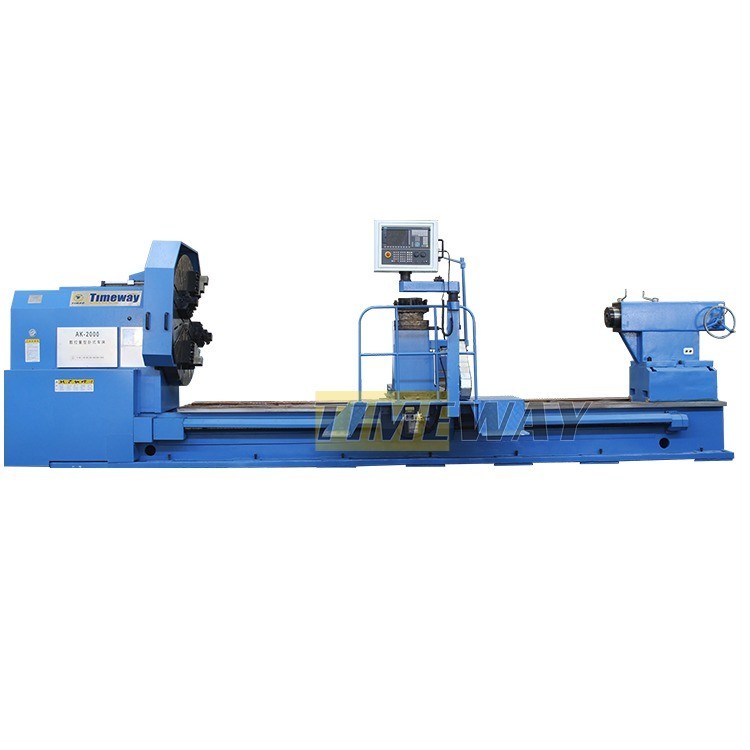

Heavy Duty 2-Axis Giant CNC Lathe AK-2000/5000 with FANUC CNC System
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway/TIMAC |
| Model Number: | AK-2000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $300,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Slant Bed Lathe | Max. Length Of Workpiece (mm): | 5000 |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Width Of Bed (mm): | 2000 Mm |
| Spindle Motor Power(kW): | 30 | No. Of Spindles: | Single |
| Number Of Axes: | 2 | Travel (X Axis)(mm): | 850 Mm |
| Travel (Z Axis)(mm): | 2000 Mm | Dimension(L*W*H): | 8400*3200*2950 |
| CNC Control System: | Fanuc/Siemens/GSK | Tool Post Stations: | 4 |
| Weight (KG): | 19400 | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Product Name: | Heavy Duty Horiozontal CNC Lathe | Machine Type: | Horizontal CNC Lathe |
| Model: | AK-2000/5000 | CNC System: | GSK KND FANUC SIEMENS |
| Color: | Customers' Requirement | Max. Swing Over Bed: | 2000mm |
| Max. Turning Length: | 4800mm | Distance Between Centers: | 5000mm |
| Max.swing Over Cross Slide: | 1600mm | Spindle Speed: | 3-250rpm |
| Condition: | New | Spindle Bore(mm): | 100 |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Construction Works , Energy & Mining | Showroom Location: | Egypt, France, Germany, Viet Nam, Peru, India, Russia, Algeria, Romania, Nigeria |
| Max. Spindle Speed (r.p.m): | 250 R.p.m | Max. Turned Length (mm): | 4800 |
| Marketing Type: | Hot Product 2022 | Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, Enquiry Us |
| Port: | China Port | ||
Product Description
Product Description
CNC Heavy duty Horiozontal Lathe
Specification
Specifications | Unit | AK-1250 | AK-1600 | AK-1800 | AK-2000 | |||
Capacity | ||||||||
Swing over bed | mm | 1250 | 1600 | 1840 | 2000 | |||
Swing over carriage | mm | 900 | 1250 | 1450 | 1600 | |||
Max. length of workpiece | mm | 3000/5000/6000/8000/10000/12000 | 3000/5000/6000/8000/10000/12000 | 1000-16000 | 3000/5000/6000/8000/10000/12000 | |||
Max. turning length | mm | 2800/4800/5800/7800/9800/11800 | 2800/4800/5800/7800/9800/11800 | 2800/4800/5800/7800/9800/11800 | ||||
Span of guideway | mm | 1100 | 1100 | 1100 | 1100 | |||
Chuck diameter | mm | 1250 | 1400 | 1600 | 1600 | |||
Max. weight of workpiece | t | 16 | 16 | 16 | 16 | |||
Spindle | ||||||||
Spindle nose | mm | A2-15 | A2-15 | A2-15 | A2-15 | |||
Spindle bore | mm | 100 | 100 | 130 | 100 | |||
Taper hole of spindle | - | Metric 140 | Metric 140 | Metric 140 | Metric 140 | |||
Spindle speed range (stepless) | rpm | 3-320 | 3-320 | 3-200 | 3-320 | |||
Spindle speed range (manual steps) | rpm | CCW: 3.15-315(21); CW: 3.5-291(12) | CCW: 3.15-315(21); CW: 3.5-291(12) | CCW: 3.15-315(21); CW: 3.5-291(12) | ||||
Feed | ||||||||
Max. cutting power | N | 39200 | 39200 | 39200 | 39200 | |||
Rapid speeds of X-/Z-axis | mm/min | 4000/6000 | 4000/6000 | 4000/4000 | 4000/6000 | |||
Max. travel of X-axis | mm | 850 | 850 | 850 | ||||
Turret | ||||||||
Turret working position | - | V4 | V4 | V4 | V4 | |||
Size of turret | mm | 380x380 | 380x380 | 380x380 | 380x380 | |||
Max. feed force | N | 10875 | 10875 | 10875 | 10875 | |||
Section of tool shank | mm | 50x50 | 50x50 | 55x55 | 50x50 | |||
Tailstock | ||||||||
Dia. of tailstock quill | mm | 260 | 260 | 260 | 260 | |||
Travel of tailstock quill | mm | 300 | 300 | 300 | 300 | |||
Taper hole of tailstock quill | - | Metric 80 | Metric 80 | Metric 80 | Metric 80 | |||
Others | ||||||||
Workpiece accuracy | - | IT7 | IT7 | IT7 | IT7 | |||
Surface roughness | µm | Ra2.5-3.2 | Ra2.5-3.2 | Ra2.5-3.2 | Ra2.5-3.2 | |||
Main motor power | kw | 30 | 30 | 37 | 30 | |||
Machine weight | kg | 15000/19400/21560/26000/30400/34800 | ||||||
Length | mm | 6400/8400/9400/11400/13400/15400 | 6400/8400/9400/11400/13400/15400 | 6400/8400/9400/11400/13400/15400 | ||||
Width | mm | 3200 | 3200 | 3200 | ||||
Height | mm | 2220 | 2750 | 2950 | ||||
Detailed Images

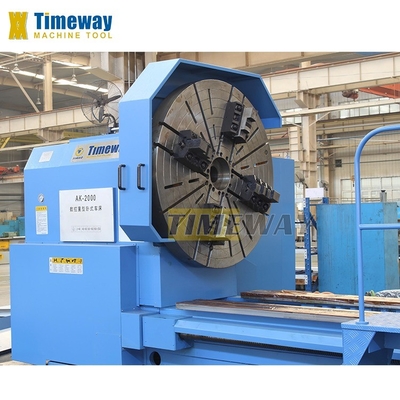

Chuck：
- Standard 4-jaw independent chuck to clamping special-shape parts.

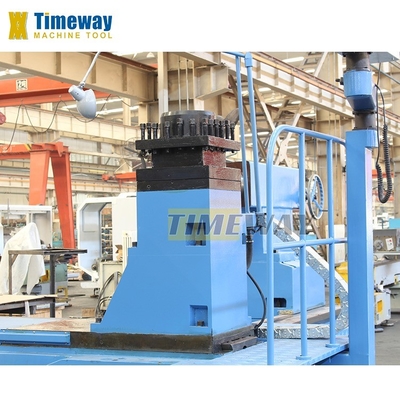

4-stations electric turret:
- Adopt famous brand electric turret, high positioning accuracy.

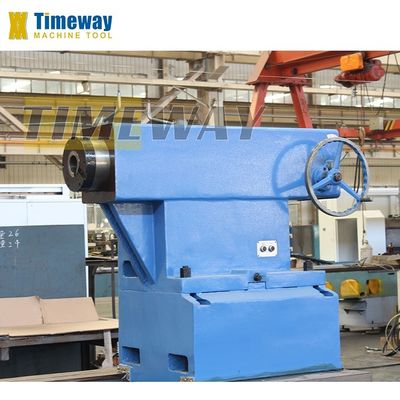

Electric moving tailstock:
Flexible and simple operation, to reduce labor intensity and increase operating pleasure.
Accessories
STANDARD ACCESSORIES
√ FANUC/GSK/SIEMENS CNC system
√ 4-jaw chuck
√ 4-station electric tool-post
√ Work lamp
√ Cooling system
√ Manual pulse generator (MPG)
√ Dead centers
√ Oil gun
√ Pilot lamp
√ Automatic lubrication pump
√ Manual moving tailstock
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)
√ 4-station electric tool-post
√ Work lamp
√ Cooling system
√ Manual pulse generator (MPG)
√ Dead centers
√ Oil gun
√ Pilot lamp
√ Automatic lubrication pump
√ Manual moving tailstock
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)
OPTIONAL ACCESSORIES
_ Steady rest _ Follow rest
_ Semi-closed guard
_ 6/8-station tool-post
_ Live centers
_ Air conditioner
_ Chip conveyor
_ Semi-closed guard
_ 6/8-station tool-post
_ Live centers
_ Air conditioner
_ Chip conveyor
