Advanced CNC Heavy Duty Horizontal Lathe Machine AK-1250B with 2530mm Machine Width
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timac |
| Model Number: | AK-1250B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $42,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 1000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Medium Duty |
| Max. Weight Of Workpiece(kg): | Enquiry Us | Width Of Bed (mm): | 0 Mm |
| Spindle Motor Power(kW): | 30 | No. Of Spindles: | Single |
| Number Of Axes: | 2 | Travel (X Axis)(mm): | 570 Mm |
| Travel (Z Axis)(mm): | 880 Mm | Positioning Accuracy (mm): | 0.003 |
| Repeatability (X/Y/Z) (mm): | Enquiry Us | Dimension(L*W*H): | 4300*2530*2150 |
| Voltage: | 220V/380V,50HZ | CNC Control System: | Siemens |
| Tool Post Stations: | 8, 6, 4 | Weight (KG): | 9800 |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Max. Swing Over Bed: | 1250mm |
| Max. Swing Over Cross Slide: | 880mm | Distance Between Centers: | 1000/1500/2000/3000/4000/5000/6000/8000/10000/12000/-mm |
| Max. Turning Length: | 730/1300/1800/2800/3800/4800/5800/7800/9800/11800/-mm | Bed Width: | 755 |
| Loading Capacity: | 6000 (opt: 8000)kg | Main Motor Power: | 30kw |
| Machine Weight: | 9800/10200/10600/11800/13000/14800/16600/20600/24600/28600/-kg | Machine Length: | 4300/4800/5300/6300/7300/8300/9300/11300/13300/15300/-mm |
| Machine Width: | 2530mm | Condition: | New |
| Spindle Bore(mm): | 130 | Toolpost Brand: | Enquiry Us |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Retail | Showroom Location: | Egypt, Brazil, Russia |
| Core Components: | Bearing, Motor | Year: | Least Day |
| Max. Spindle Speed (r.p.m): | 320 R.p.m | Max. Turned Length (mm): | 1000 |
| Marketing Type: | Hot Product 2022 | ||
Product Description
Summary
This series lathe bed is the one-piece type box-shaped structure ,adopts high standard cast iron one molding casting,after the second aging treatment.
Product Description

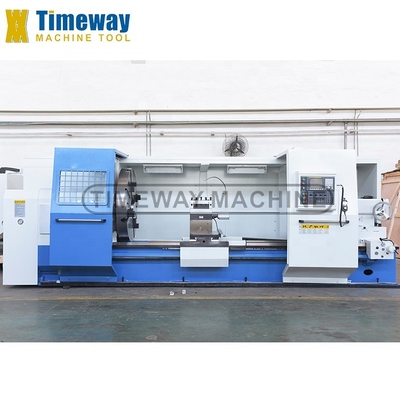

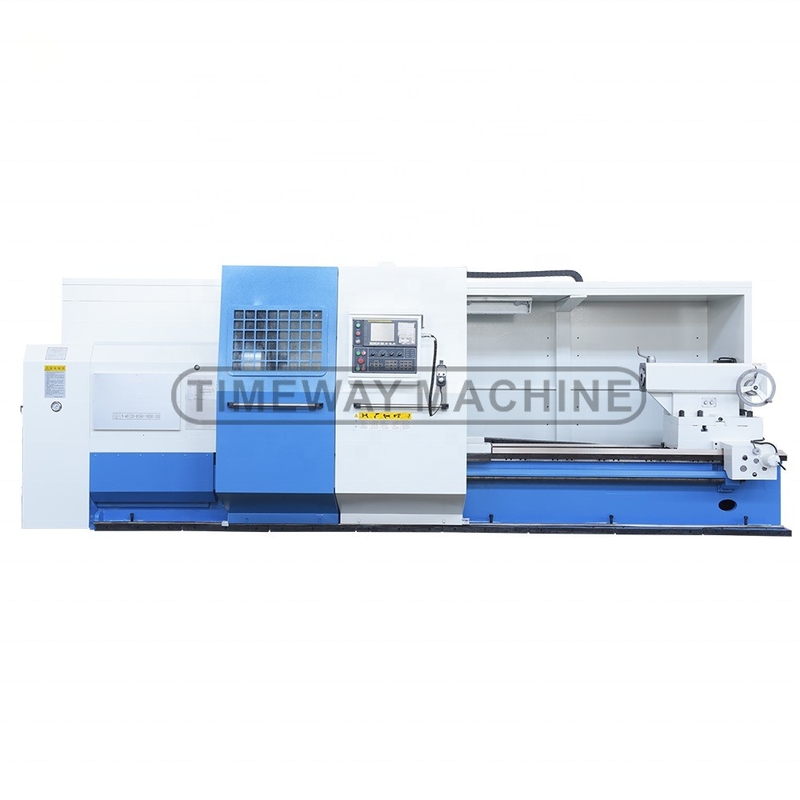

CNC Heavy Duty Horizontal Lathe AK-1250B
Specification
Specification | Unit | AK-1250B |
Max. swing over bed | mm | 1250 |
Max. swing over cross slide | mm | 880 |
Distance between centers | mm | 1000/1500/2000/3000/4000/5000/6000/8000/10000/12000/- |
Max. turning length | mm | 730/1300/1800/2800/3800/4800/5800/7800/9800/11800/- |
Bed width | mm | 755 |
Loading capacity | kg | 6000 (opt: 8000) |
Main motor power | kw | 30 |
Machine weight | kg | 9800/10200/10600/11800/13000/14800/16600/20600/24600/28600/- |
Machine length | mm | 4300/4800/5300/6300/7300/8300/9300/11300/13300/15300/- |
Machine width | mm | 2530 |
Accessories
Standard accessories：
√ FANUC/GSK/SIEMENS CNC system
√ 4-jaw chuck
√ 4-station electric tool-post
√ Work lamp
√ Cooling system
√ Semi-closed guard
√ Manual pulse generator (MPG)
√ Dead centers
√ Oil gun
√ Pilot lamp
√ Automatic lubrication pump
√ Manual moving tailstock
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)
√ 4-station electric tool-post
√ Work lamp
√ Cooling system
√ Semi-closed guard
√ Manual pulse generator (MPG)
√ Dead centers
√ Oil gun
√ Pilot lamp
√ Automatic lubrication pump
√ Manual moving tailstock
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)
Optional accessories：
_ Electric moving tailstock_ Steady rest
_ Follow rest
_ 6-station tool-post
_ Live centers
_ Air conditioner
_ Chip conveyor
_ Full guard
_ Follow rest
_ 6-station tool-post
_ Live centers
_ Air conditioner
_ Chip conveyor
_ Full guard

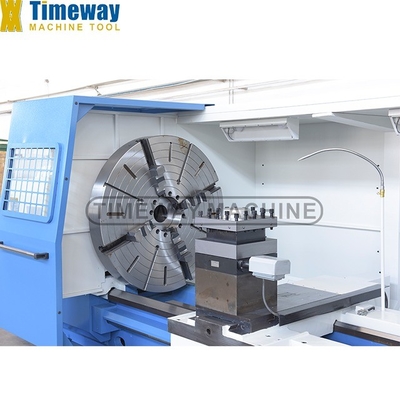

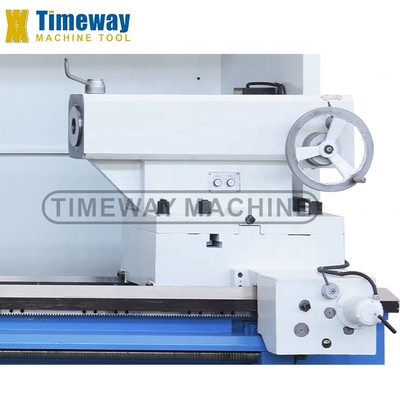

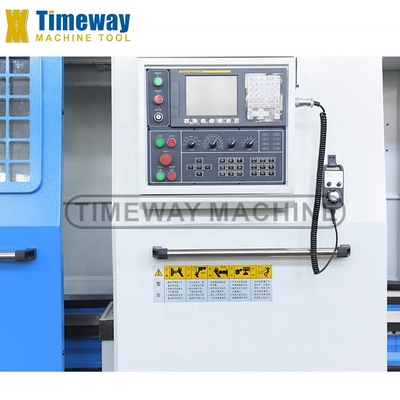

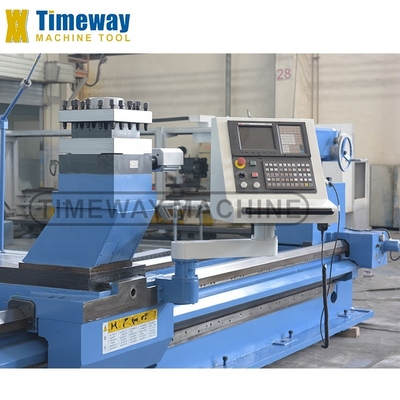

Details of Accessories:
Above all are the detailed pictures about this machine.
Packing & Delivery
This is the picture of the packaging in our factory！You can see our package is standardized and centralized , then they will be shipped to your designated place
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
FAQ
Q: Why choose TIMEWAY MACHINE?
A:1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A:(1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
