Single Spindle CNC High Speed Vertical Lathe Machine with Round Table
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | VLK1600E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $85,500.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | VERTICAL | Max. Length Of Workpiece (mm): | 1000 |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Width Of Bed (mm): | 80 Mm |
| Spindle Motor Power(kW): | 37 | No. Of Spindles: | Single |
| Number Of Axes: | 2 | Travel (X Axis)(mm): | 1030 Mm |
| Travel (Z Axis)(mm): | 800 Mm | Dimension(L*W*H): | 563*301*466 |
| Voltage: | Customer's Requirement | CNC Control System: | SIEMENS 808D |
| Tool Post Stations: | 4 | Weight (KG): | 14500 |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Product Type: | CNC Vertical Lathe |
| Max. Height Of Workpiece: | 1000 | CNC Or Not: | CNC Lathe Machine |
| Machine Type: | Vertical CNC Lathe | Keyword: | Cnc Lathe Machine |
| Control System: | SIEMENS GSK FANUC (optional) | Precision: | High Precision Machine |
| Color: | Customized Color Acceptable | Max. Swing Over Bed: | 1600 |
| Function: | Machining Metal Lathe | Condition: | New |
| Spindle Bore(mm): | 105 | Applicable Industries: | Hotels, Building Material Shops, Machinery Repair Shops |
| Showroom Location: | Egypt, Turkey, Italy, Brazil, Peru, Indonesia, Mexico, Russia, Argentina | Marketing Type: | New Product 2020 |
| Core Components: | Bearing, Motor, PLC, Engine | Year: | 2023 |
| Max. Spindle Speed (r.p.m): | 160 R.p.m | Max. Turned Length (mm): | 1600 |
| Port: | China Port | ||
Product Description
Product Description
CNC Vertical Lathe
Features：
1. The series CNC single column vertical lathe is designed by absorbing modern advanced design and manufacturing techniques and using CAD optimization design method, using the latest design concept and equipping with domestic and foreign advanced features.
2. The machine is suitable for high speed steel and carbide cutting tools, processing workpieces of all ferrous and non-ferrous metals and some nonmetal materials.
Specification
Specification | UNIT | VLK800E | VLK1250E | VLK1600E |
Max.swing diameter | mm | 950 | 1250 | 1600 |
Max.turning diameter | mm | 800 | 1250 | 1600 |
Max. height of workpieces | mm | 800 | 1000/1250 | 1000/1250/1400 |
Max. weight of workpieces | kg | 2000 | 5000 | 8000 |
Main motor power | mm | 22 | 30 | 37 |
Worktable diameter | mm | 800 | 1010 | 1400 |
X-axis travel | mm | -20--550 | -20--800 | -20--1030 |
Z-axis travel | mm | 650 | 650/800 | 800/1000 |
Power capacity | Kva | 30 | 37 | 45 |
Machine weight | kg | 8000 | 12000 | 15000 |
Worktable speed range | rpm | 2--315 | 2-250 | 2--200 |
Number of tool station | pcs | 4 | 4 | 4 |

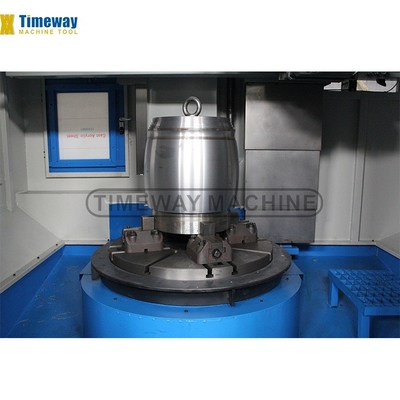

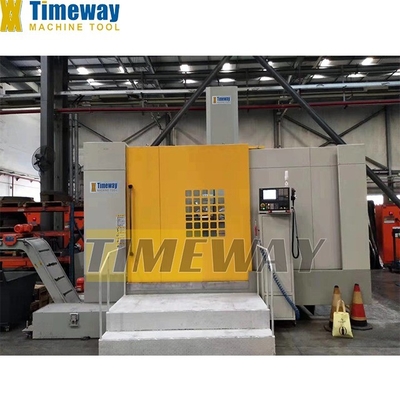

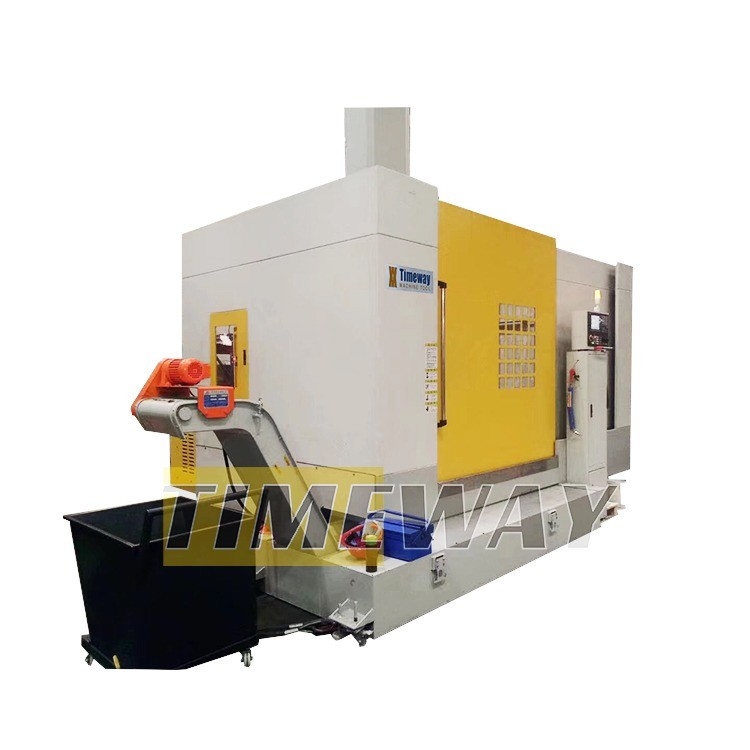

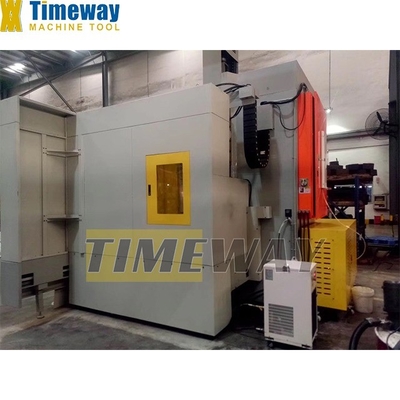

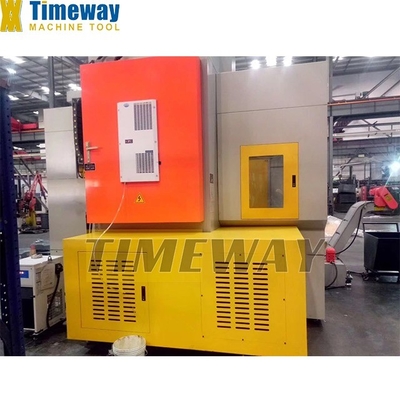

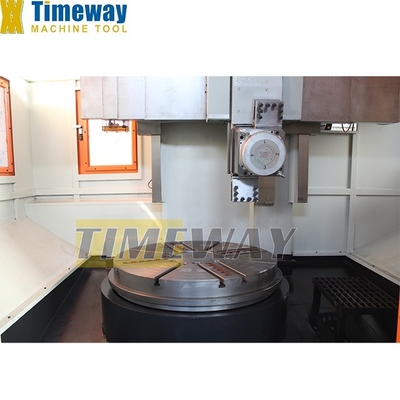

Detail Images
Packing & Delivery
Company Profile
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
