1. The series CNC single column vertical lathe is designed by absorbing modern advanced design and manufacturing techniques and using CAD optimization design method, using the latest design concept and equipping with domestic and foreign advanced features.
2. The machine is suitable for high speed steel and carbide cutting tools, processing workpieces of all ferrous and non-ferrous metals and some nonmetal materials.
3. The machine can complete the process of rough and finish turning inside and outside cylinder, inside and outside cone surface, plane surface, the circular arc surface and grooving.
 |

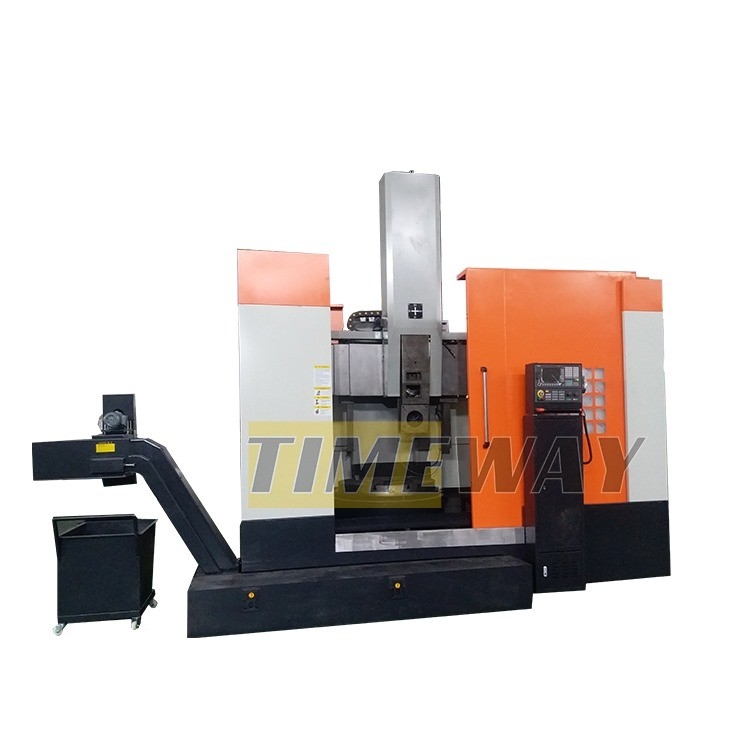

Vertical CNC Lathe Machine with 1250mm Max. Turning Diameter and 0mm Spindle Bore
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway/TIMAC |
| Model Number: | VLK1250E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $152,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | VERTICAL | Max. Length Of Workpiece (mm): | 1250 |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Width Of Bed (mm): | 1010 Mm |
| Spindle Motor Power(kW): | 30 | No. Of Spindles: | Single |
| Number Of Axes: | 2 | Travel (X Axis)(mm): | 800 Mm |
| Travel (Z Axis)(mm): | 650 Mm | Dimension(L*W*H): | 5200*3250*4380 |
| CNC Control System: | Siemens | Tool Post Stations: | 4 |
| Weight (KG): | 12000 | Warranty: | 1 Year |
| Key Selling Points: | Automatic | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Product Name: | CNC Vertical Lathe | Machine Type: | Vertical Lathe |
| After-sales Service Provided: | 1 Year | Model: | VLK1250E |
| Color: | Customers' Demands | Max. Swing Diameter: | 1250mm |
| Max. Turning Diameter: | 1250mm | Max. Height Of Workpiece: | 1000mm |
| Max. Weight Of Workpiece: | 5000kg | Main Motor Power: | 30kw |
| Condition: | New | Toolpost Brand: | Hydex |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Energy & Mining, Food & Beverage Shops | Showroom Location: | France, Viet Nam, Philippines, Peru, Indonesia, Pakistan, Russia, Kenya, South Korea, Algeria, Nigeria |
| Core Components: | Bearing, Motor, Pump, Gear, PLC, Engine | Max. Spindle Speed (r.p.m): | 250 R.p.m |
| Spindle Bore(mm): | 0 | Max. Turned Length (mm): | 1250 |
| Marketing Type: | Hot Product 2022 | Port: | China Port |
Product Description
Product Description

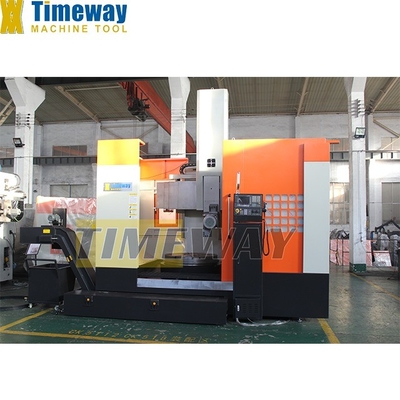

CNC Single Column Vertical Lathe
Features:
Specification
Specifications | Unit | VLK800E | VLK1250E | VLK1600E | VLK2000E |
Capacity | |||||
Max. swing diameter | mm | 950 | 1250 | 1600 | 2000 |
Max. cutting diameter | mm | 800 | 1250 | 1600 | 2000 |
Max. height of workpiece | mm | 800 | 1000 | 1000 | 1250 |
Max. weight of workpiece | kg | 2000 | 5000 | 8000 | 12000 |

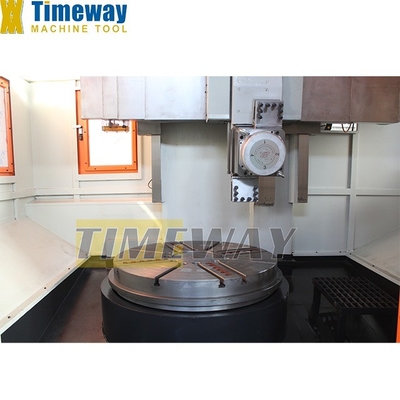

Worktable | |||||
Main motor power | kw | 22 | 22 | 30 | 37 |
Worktable diameter | mm | 800 | 1010 | 1400 | 1800 |
Max. torque of worktable | KN.m | 10 | 17.5 | 25 | 32 |
Worktable speed range (stepless) | rpm | 2-320 | 1.25-200 | 1-160 | 4-125 |
Tool | |||||
Number of tool station | pcs. | 4 | 4 | 4 | 4 |
Tool shank section of external turning tool | mm | 32x40 | 32x40 | 32x40 | 32x40 |
Drive type | - | Electric | Electric | Electric | Electric |
X/Z-axis | |||||
X-axis ball screw size (dia. x screw pitch) | mm | 50x10 | 50x10 | 50x10 | 50x10 |
Z-axis ball screw size (dia. x screw pitch) | mm | 50x10 | 50x10 | 50x10 | 50x10 |
X-axis travel | mm | -20~550 | -20~800 | -20~1030 | -20~1150 |
Z-axis travel | mm | 650 | 650 | 800 | 800 |
Feed range(X/Z) | mm | 0.1-500 | 0.1-500 | 0.1-500 | 0.1-500 |
Rapid feed speed | mm/min | 2000 | 2000 | 2000 | 2000 |
Others | |||||

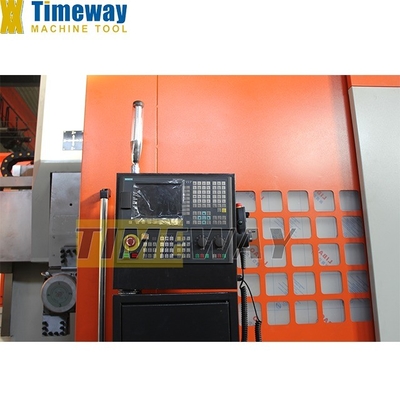

CNC system | - | SIEMENS | SIEMENS | SIEMENS | SIEMENS |
Servo motor torque(X/Z) | N.m | 10 | 10 | 10 | 10 |
Power capacity | Kva | 30 | 37 | 45 | 52 |
Machine net weight | kg | 8500 | 11000 | 14500 | 18500 |
Machine dimension (LxWxH) | cm | 430x238x429 | 478x257x440 | 563x301x466 | 580x368x494 |
Accessories
Standard accessories:
Automatic lubrication system
Full closed guard
Air conditioner
Oil cooler
Air conditioner
Oil cooler
Optional accessories:
FANUC 0i-TF
Special fixture
SIEMENS 828D
SIEMENS 828D
