Custom and High Precision CNC Flat Bed Lathe CK-500 with Metric 90 Spindle Taper
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timac |
| Model Number: | CK-500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $22,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 1000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Medium Duty |
| Width Of Bed (mm): | 0 Mm | Spindle Motor Power(kW): | 7.5 |
| No. Of Spindles: | Twin | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 295 Mm | Travel (Z Axis)(mm): | 1000 Mm |
| Positioning Accuracy (mm): | ±0.001 | Voltage: | 380V |
| CNC Control System: | Siemens | Tool Post Stations: | 8 |
| Weight (KG): | 2100 | Warranty: | 1 Year |
| Key Selling Points: | Automatic | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Max. Swing Over Bed: | 500mm | Max.swing Over Cross Slide: | 290mm |
| Distance Between Centers: | 1000/1500/2000mm | Max. Turning Length: | 1000/1500/2000mm |
| Bed Width: | 390mm | Spindle Nose: | A2-8mm |
| Spindle Bore: | 82mm | Spindle Taper: | Metric 90 |
| Spindle Speed (Manual Steps): | 45-1600 (3)rpm | Keyword: | Cnc Flat Bed Lathes |
| Condition: | New | Spindle Bore(mm): | 82 |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant | Showroom Location: | Saudi Arabia, Indonesia, Thailand, Chile, Nigeria |
| Marketing Type: | Hot Product 2019 | Core Components: | Motor, Pump |
| Year: | 2022 | Max. Spindle Speed (r.p.m): | 1600 R.p.m |
| Port: | China Port | ||
Product Description
Product Description

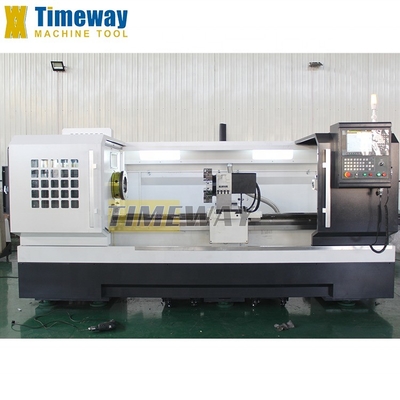

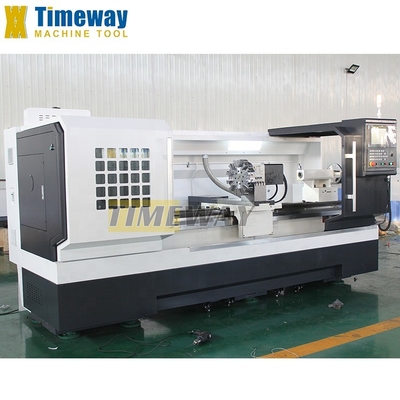

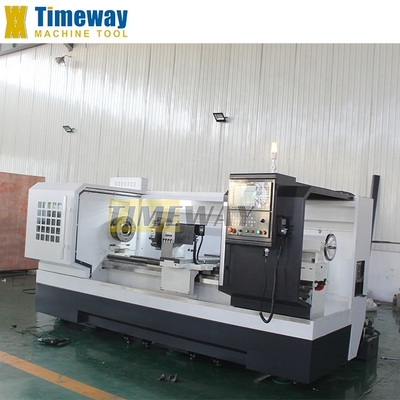

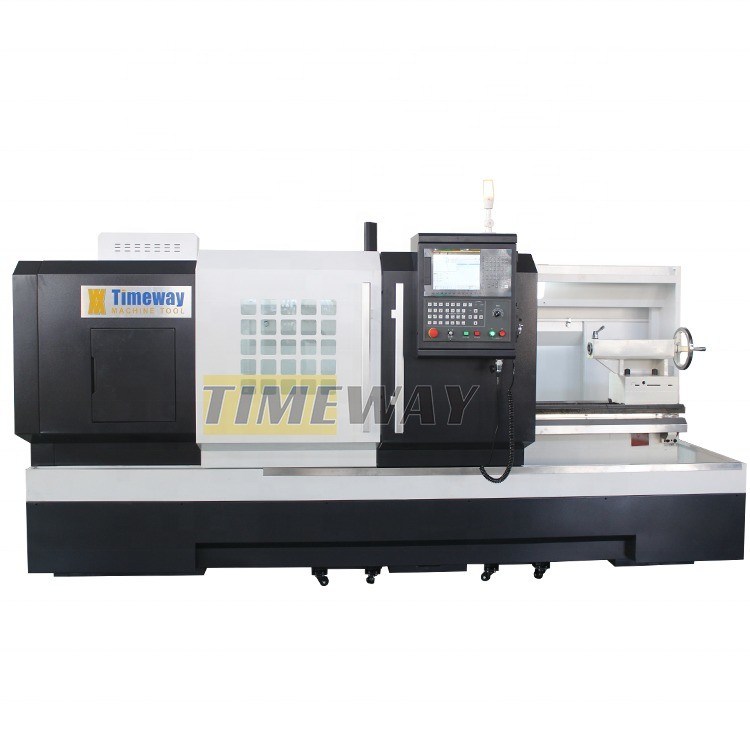

Flat Bed CNC Lathe CK-500
Specification
Specification | Unit | CK-400 | CK-500 | CK-600 |
Max. swing over bed | mm | 420 | 500 | 660 |
Max.swing over cross slide | mm | 210 | 290 | 430 |
Distance between centers | mm | 750 | 1000/1500/2000 | 1000/1500/2000 |
Max. turning length | mm | 750 | 1000/1500/2000 | 1000/1500/2000 |
Bed width | mm | 335 | 390 | 390 |
Spindle nose | mm | A2-6 | A2-8 | D10 |
Spindle bore | mm | 58 | 82 | 105 |
Spindle taper | - | MT6 | Metric 90 | Metric 90 |
Spindle speed (Manual steps) | rpm | 60-2000 (3) | 45-1600 (3) | 45-1600 (3) |
Machine weight | kg | 1800 | 2100/2300/2600 | 2100/2500/2800 |
Accessories
Standard accessories:
FANUC CNC system
3-jaw chuck
4-station electronic tool post
Electronic handwheel
Lubrication system
Cooling system
Work lamp
Protection guard
Axial fan
Leveling blocks & bolts
Tools & tool-box
Operation manuals
3-jaw chuck
4-station electronic tool post
Electronic handwheel
Lubrication system
Cooling system
Work lamp
Protection guard
Axial fan
Leveling blocks & bolts
Tools & tool-box
Operation manuals
Title goes here.
GSK CNC system,SIEMENS CNC system
4-jaw chuck
Horizontal 6-station tool post
Horizontal 8-station tool post
Pilot lamp
Air conditioner
Heat exchanger
Hydraulic chuck
Special fixture
Tool setter
Chain type chip conveyor
4-jaw chuck
Horizontal 6-station tool post
Horizontal 8-station tool post
Pilot lamp
Air conditioner
Heat exchanger
Hydraulic chuck
Special fixture
Tool setter
Chain type chip conveyor
Packing & Delivery
This is the picture of the packaging in our factory！You can see our package is standardized andcentralized , then they will be shipped to your designated place.
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Exhibition&Training
This is a picture of clients visiting our company when we hold exhibitions around the world.
Certifications
Since our company established, we have obtained many certificates. The above picture is for your reference. We will continue to provide excellent machine tools for domestic and foreign users.
