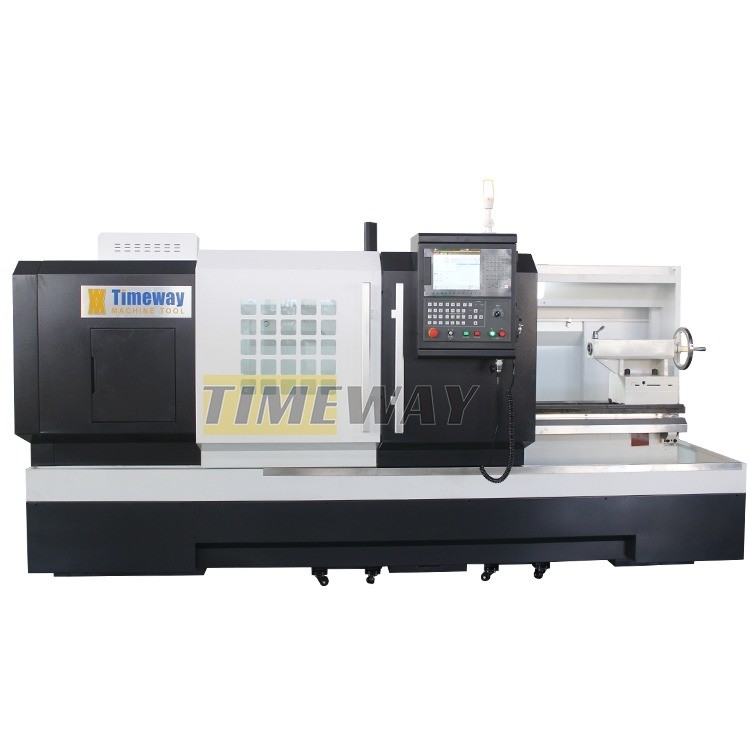

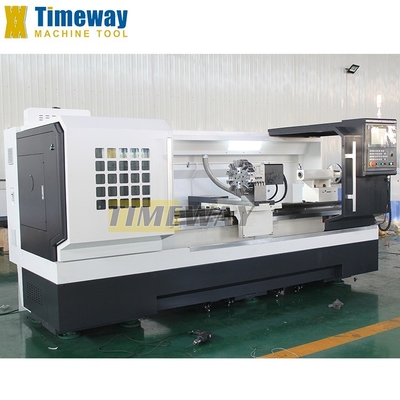

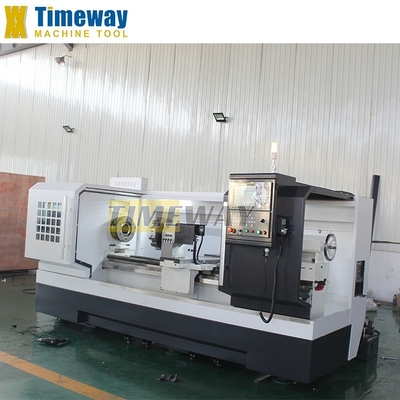

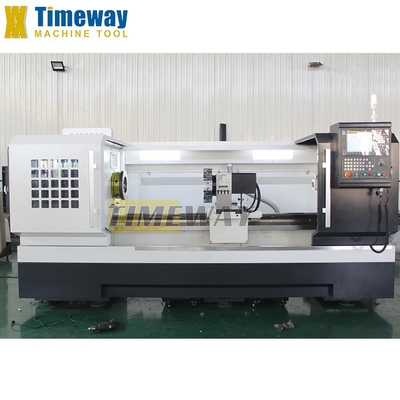

Precision Turning CNC Lathe Machine with Multifunctional Flat Bed Design and 4 Tool Posts
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | CK-500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $22,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 1500 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Medium Duty |
| Width Of Bed (mm): | 350 Mm | Spindle Motor Power(kW): | 7.5 |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 295 Mm | Travel (Z Axis)(mm): | 1500 Mm |
| Voltage: | Customer's Requirement | CNC Control System: | FANUC |
| Tool Post Stations: | 4 | Weight (KG): | 2300 |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Machine Type: | Flat Bed CNC Lathe |
| Distance Between Centers: | 1500 | CNC Or Not: | CNC |
| Name: | CNC Lathe Machine | Keyword: | Horizontal Turning Lathe Machine |
| Precision: | High Precision Machine | Control System: | SIEMENS GSK FANUC (optional) |
| Processing Type: | Turning CNC Lathe Mahcine | Color: | Customised |
| Max. Swing Diameter: | 500 | Condition: | New |
| Spindle Bore(mm): | 82 | Applicable Industries: | Hotels, Building Material Shops, Machinery Repair Shops |
| Showroom Location: | Egypt, Turkey, Italy, Brazil, Peru, Indonesia, Mexico, Russia, Argentina | Marketing Type: | Hot Product 2019 |
| Core Components: | Bearing, PLC | Max. Spindle Speed (r.p.m): | 1600 R.p.m |
| Port: | China Port | ||
Product Description
Product Description
Features:
1. Longitudinal and cross feeds are effected by ball leadscrews. Driven by servo motors.

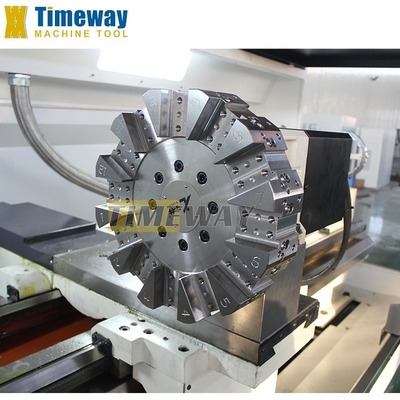

2. Either vertical or horizontal 4-station or 6-station tool post or gang tools can be selected. The post is located on precision.
contrite gears with a high repeated positioning accuracy.
3. Both chuck and tailstock are supplied with hydraulic or manual type.
4. The spindle system is high in the rigidity and accuracy.
2. Either vertical or horizontal 4-station or 6-station tool post or gang tools can be selected. The post is located on precision.
contrite gears with a high repeated positioning accuracy.
3. Both chuck and tailstock are supplied with hydraulic or manual type.
4. The spindle system is high in the rigidity and accuracy.
Specification
Specification | CK-400 | CK-500 | |
Max. swing over bed | Ø400mm | Ø500mm | |
Max. swing over carriage | Ø210mm | Ø290mm | |
Width of bed | 405mm | 405mm | |
Maximum turned length | 1000mm | 1000mm/1500mm | |
Max. turning length | 900mm | 900mm | |
Spindle nose | A2—6 | D8 | |
Spindle bore | Ø56mm | Ø80mm | |
Cone hole diameter and taper of spindle hole | MT.No6 | MT.No7 | |
Steps of spindle speed(Manual) | Variable | 3(variable within each step) | |
Range of spindle speed | 450~2800 r/min | 40~165,160~660,660~2000r/min | |
Rapid feed for Axis Z | 10m/min | ||
Rapid feed for Axis X | 8 m/min | ||
Max. travel of Axis Z | 920mm | ||
Max. travel of Axis X | 290mm | 310mm | |
Min. input | 0.001 mm | ||
Tool post stations | 4-ways | ||
Tool cross section | 25×25 mm | 32×32 mm | |
External diameter | Ø75mm | ||
Taper of bore | MT.No.5 | ||
Max. Traverse | 150mm | ||
X/Z motor torque | 4.7/7Nm | 7/9.5Nm | |
Power of main motor | 5.5 KW | 7.5 KW | |
Power of cooling pump | 90W | ||
Overall dimensions(L×W×H) | 2630×1400×1550mm | 2530×1400×1600mm | |
Net weight | 2700kg | 2850kg | |
