High Precision Horizontal Lathe CK500 Flat Bed CNC Lathe Machine For Metal
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY TIMAC |
| Model Number: | CK-500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $23,000.00/sets >=1 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 2000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Medium Duty |
| Width Of Bed (mm): | 390 Mm | Spindle Motor Power(kW): | 7.5 |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 295 Mm | Travel (Z Axis)(mm): | 2000 Mm |
| Voltage: | Customer's Requirement | CNC Control System: | FANUC |
| Tool Post Stations: | 4 | Weight (KG): | 2600 |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Max. Workpiece Length: | 2000mm |
| Machine Type: | Flat Bed CNC Lathe | Color: | Customers' Requirement |
| Key Selling Point: | Competitive Price | Tool Post Type: | V4 |
| X/Z-axis Min. Feed Unit: | 0.001mm | Tailstock Quill Taper: | MT5 |
| Tool Section Size: | 25x25 | Tailstock Quill Travel: | 150mm |
| Tailstock Quill Diameter: | 75mm | Condition: | New |
| Spindle Bore(mm): | 82 | Applicable Industries: | Machinery Repair Shops, Other |
| Showroom Location: | Egypt, Turkey, Italy, Brazil, Peru, Indonesia, Pakistan, Mexico, Russia, Argentina, Colombia | Core Components: | Bearing, Motor, Pump, Gear, PLC, Engine, Gearbox |
| Year: | Latest Day | Max. Spindle Speed (r.p.m): | 1600 R.p.m |
| Max. Turned Length (mm): | 2000 | Marketing Type: | Hot Product 2021 |
| Port: | China Port | ||
Product Description
Product Description

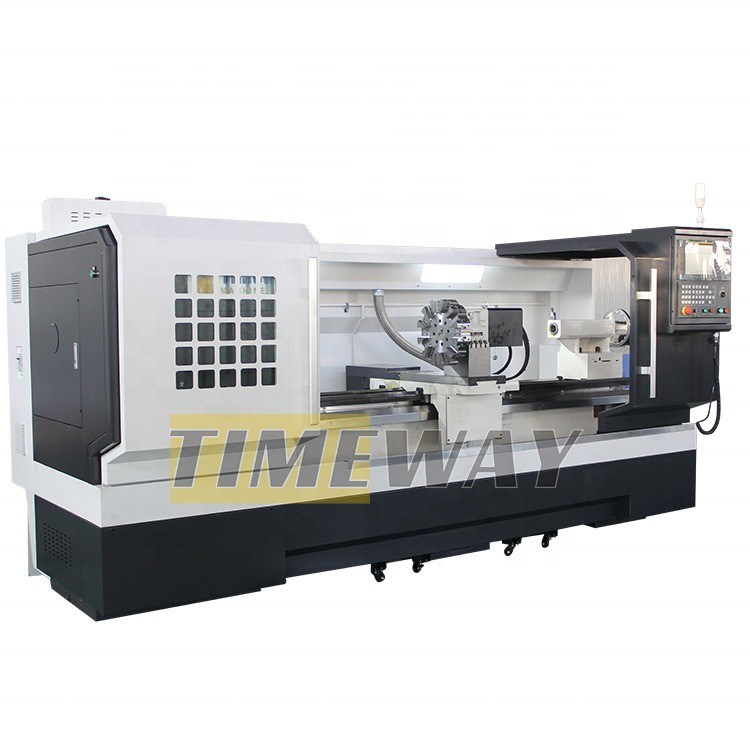

flat bed cnc lathe
flat bed cnc lathe
1. Longitudinal and cross feeds are effected by ball leadscrews. Driven by servo motors.

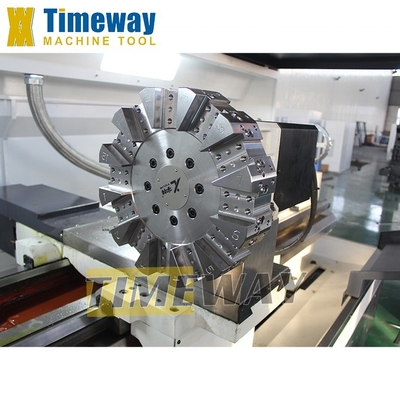

2. Either vertical or horizontal 4-station or 6-station tool post or gang tools can be selected. The post is located on precision contrite gears with a high repeated positioning accuracy.
3. Both chuck and tailstock are supplied with hydraulic or manual type.

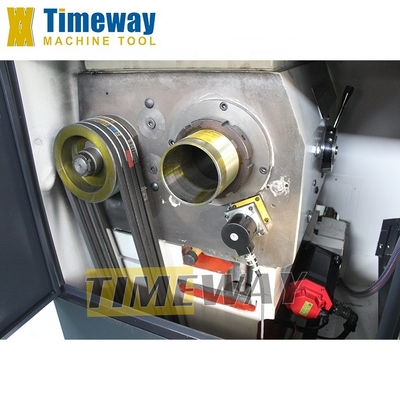

4. The spindle system is high in the rigidity and accuracy.
2. Either vertical or horizontal 4-station or 6-station tool post or gang tools can be selected. The post is located on precision contrite gears with a high repeated positioning accuracy.
3. Both chuck and tailstock are supplied with hydraulic or manual type.
4. The spindle system is high in the rigidity and accuracy.
Specification
Note：We also have other different models of machines such as CK400, CK660 and so on. If necessary, you can contact us at any time.
Specification | Unit | CK-500 |
Max. swing over bed | mm | 500 |
Max.. swing over cross slide | mm | 290 |
Distance between centers | mm | 1000/1500/2000 |
Max. turning length | mm | 1000/1500/2000 |
Bed width | mm | 390 |
Spindle nose | mm | A2-8 |
Spindle bore | mm | 82 |
Spindle taper | - | Metric 90 |
Spindle speed (Manual steps) | rpm | 45-1600 (3) |
Center height | mm | 250 |
Chuck size | mm | 250 |
Cross travel (X) | mm | 295 |
Longitudinal travel (Z) | mm | 1000/1500/2000 |
Main motor power | kw | 7.5 |
Coolant pump power | kw | 0.12 |
Machine weight | kg | 2100/2300/2600 |
standard accessories

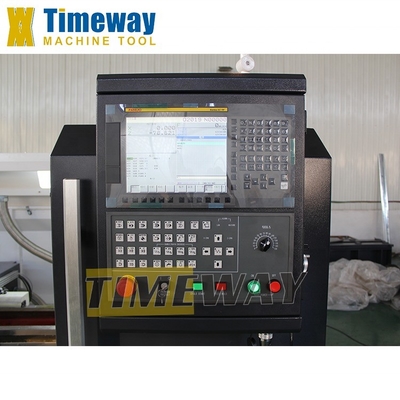

FANUC CNC systemManual 3-jaw chuck
4-station electronic tool post
Electronic handheel (MPG)
Lubrication system
Cooling systeam
Work lamp
Pilot lamp
Protection guard
Heat exchanger
Leveling blocks & bolts
Tools & tool-box
Operation manuals.
4-station electronic tool post
Electronic handheel (MPG)
Lubrication system
Cooling systeam
Work lamp
Pilot lamp
Protection guard
Heat exchanger
Leveling blocks & bolts
Tools & tool-box
Operation manuals.
optional accessories
GSKSIEMENS CNC system
Hydraulic chuck
6-station tool post
Air conditioner
Tool setter
Chain type chip conveyor.
Hydraulic chuck
6-station tool post
Air conditioner
Tool setter
Chain type chip conveyor.
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Profile

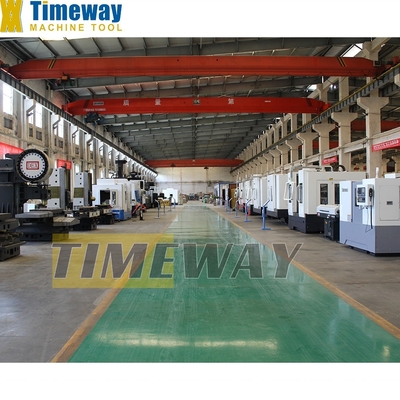

Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Company Video
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
