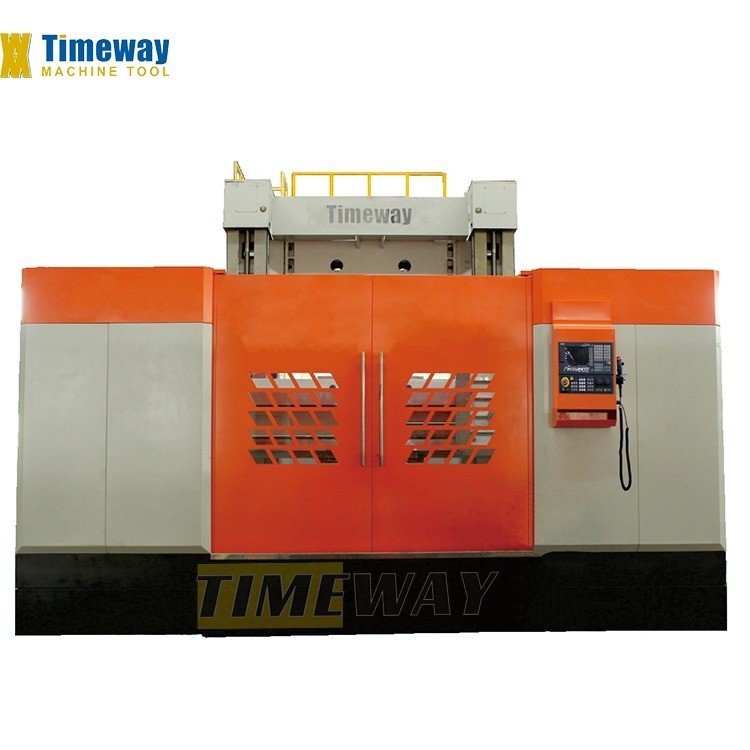

16000kg Max. Workpiece Weight CNC Vertical Lathe Machine with High Speed Round Table
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | VDK2500E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $180,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | VERTICAL | Max. Length Of Workpiece (mm): | 2000/2500 |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Max. Weight Of Workpiece(kg): | 16000 |
| Width Of Bed (mm): | 1500 Mm | Spindle Motor Power(kW): | 70.6 |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 1450 Mm | Travel (Z Axis)(mm): | 1250 Mm |
| Dimension(L*W*H): | 8470*5340*6450 | Voltage: | 220v/380v |
| Tool Post Stations: | 4 | Weight (KG): | 41000 |
| Warranty: | 1 Year | Key Selling Points: | Easy To Operate |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Machine Type: | Vertical CNC Lathe |
| CNC Or Not: | CNC | Max. Height Of Workpiece: | 2000/2500 |
| Key Word: | CNC Lathe Machine | Product Type: | CNC Lathe Machine |
| Color: | Customer Optional | Precision: | High Precision Machine |
| Control System: | SIEMENS GSK FANUC (optional) | Model: | VDK2500E |
| Max.swing Over Bed: | 2500 | Condition: | New |
| Showroom Location: | Italy, France, Germany, Russia, Morocco | Core Components: | Bearing, Motor, PLC, Engine |
| Year: | Custom Made | Max. Spindle Speed (r.p.m): | 63 R.p.m |
| Spindle Bore(mm): | 200 | Max. Turned Length (mm): | 2500 |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Mould, Mental Process | Marketing Type: | Hot Product |
| Port: | China Port | ||
Product Description
Product Description
1. The series CNC single column vertical lathe is designed by absorbing modern advanced design and manufacturing techniques and using CAD optimization design method, using the latest design concept and equipping with domestic and foreign advanced features.
2. The machine is suitable for high speed steel and carbide cutting tools, processing workpieces of all ferrous and non-ferrous metals and some nonmetal materials.

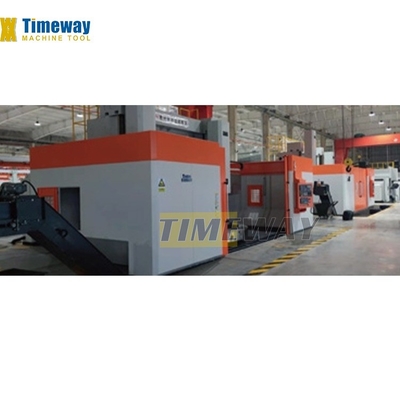

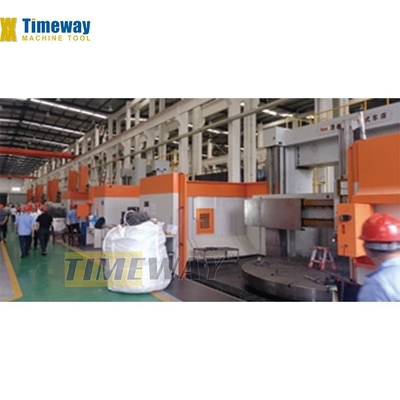

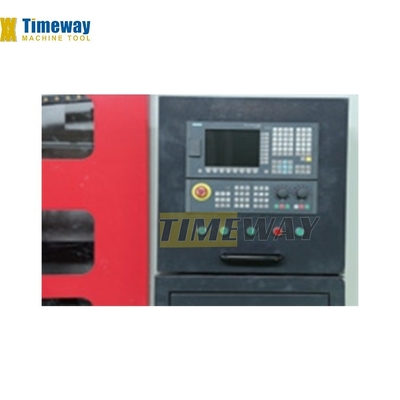

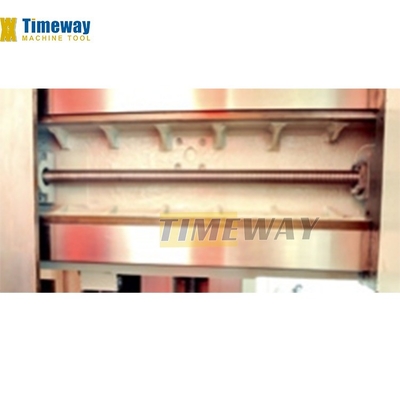

Detail Images
Specification
SPECIFICATIONS | UNIT | VDK2500E |
Max.turning diameter | mm | Φ2500 |
Max. height of workpiece | mm | 2000/2500 |
Max. weight of workpiece | kg | 16000 |
Table diameter | mm | Φ2250 |
Max. turning force of vertical tool post | KN | 35 |
Max. torque of table | KN.m | 63 |
Machine dimensions (LxWxH) | mm | 8470×5340×6450 |
Machine weight | kg | 41000 |
Packing & Delivery

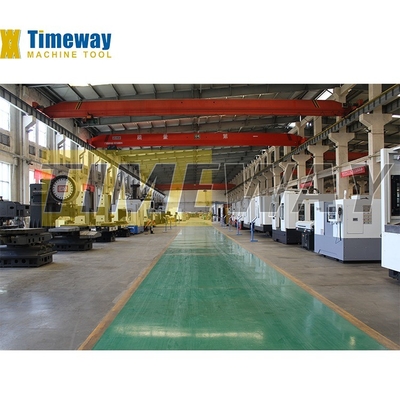

Company Profile
Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
