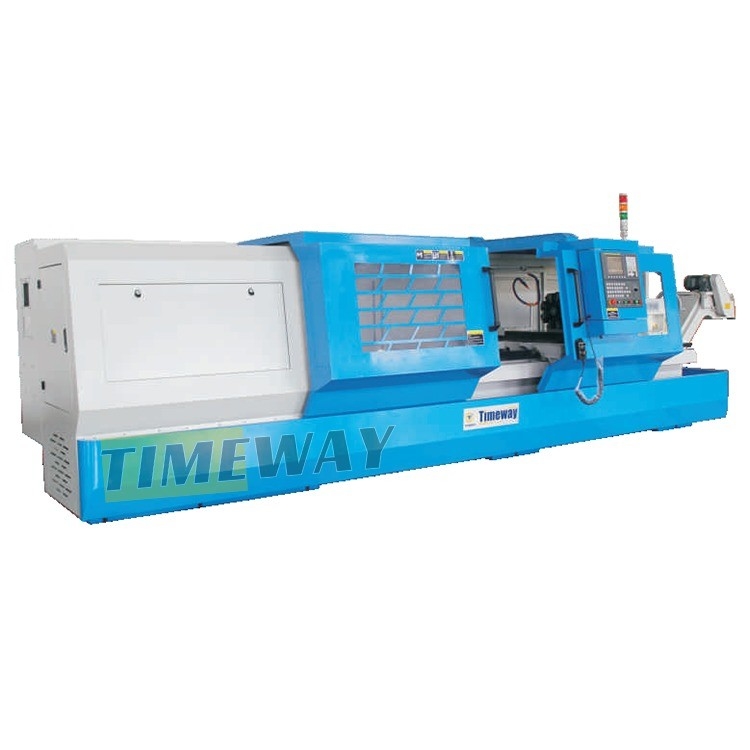

2019 630mm 11kW Spindle Motor Power CNC Lathe Machine for Metal Single Customized
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway timac |
| Model Number: | CK-630U |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $28,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 1500 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Heavy Duty |
| Width Of Bed (mm): | 600 Mm | Spindle Motor Power(kW): | 11 |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 420 Mm | Travel (Z Axis)(mm): | 1500 Mm |
| Dimension(L*W*H): | 4307*2040*1855 | Voltage: | 220V |
| CNC Control System: | FANUC | Tool Post Stations: | 4 |
| Weight (KG): | 5800 | Warranty: | 1 Year |
| Key Selling Points: | Automatic | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Machine Type: | Flat Bed CNC Lathe | CNC Or Not: | CNC Lathe Machine |
| Keyword: | Cnc Lateh Machine | Product Name: | Cnc Flat Lathe Machine |
| Model: | CK-630U | Max. Swing Diameter: | 630mm |
| Processing Type: | Heavy Duty | Color: | Customized |
| Spindle Nose: | A2-11 | Power(W): | 11kw |
| Condition: | New | Spindle Bore(mm): | 104 |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant | Showroom Location: | None |
| Marketing Type: | Hot Product 2019 | Core Components: | Motor, Pump |
| Max. Spindle Speed (r.p.m): | 1250 R.p.m | Max. Turned Length (mm): | 1500 |
| Port: | China Port | ||
Product Description
Product Description
Flat Bed CNC Lathe
Features:
1. They are CNC horizontal lathes. Spindle speed is changed mechanically in three gears together with control of a frequency changer.

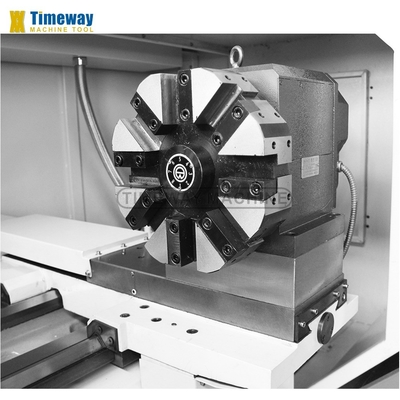

2. Complete with 4-station(standard)/6-station turret(optional), the lathes are available for different cuttings. The sliding door ensures the operators' safety.
3. CNC systems such as FANUC 0i mate TD, Sinumerik 802D or GSK980TD system etc. is provided on request.
4. These lathes can perform internal and external cylindrical turning, arbitrary taper turning, facing and threading.
5. They are suitable for various middle or small batch production, especially for complicated and high accuracy workpieces.
1. They are CNC horizontal lathes. Spindle speed is changed mechanically in three gears together with control of a frequency changer.
2. Complete with 4-station(standard)/6-station turret(optional), the lathes are available for different cuttings. The sliding door ensures the operators' safety.
3. CNC systems such as FANUC 0i mate TD, Sinumerik 802D or GSK980TD system etc. is provided on request.
4. These lathes can perform internal and external cylindrical turning, arbitrary taper turning, facing and threading.
5. They are suitable for various middle or small batch production, especially for complicated and high accuracy workpieces.

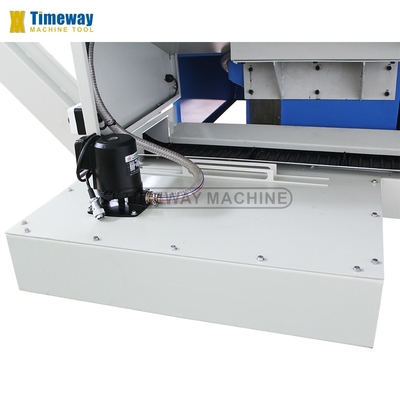

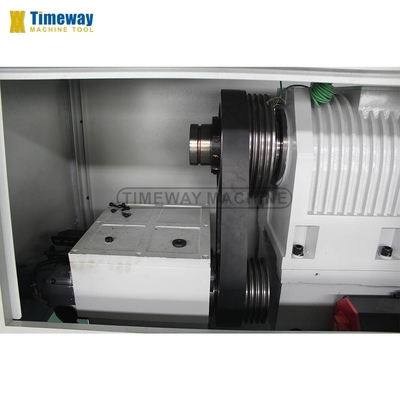

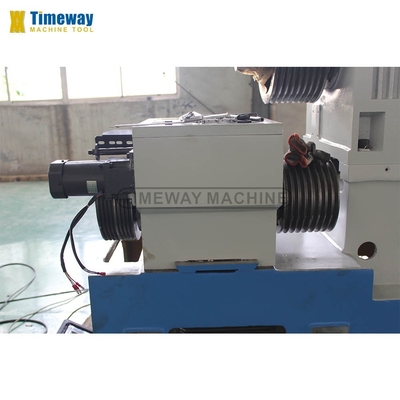

Detailed Images
Specification
Specification | Unit | CK-630U | CK-800U | CK6180E |
Max. swing over bed | mm | 630 | 800 | 800 |
Max.. swing over cross slide | mm | 350 | 520 | 480 |
Distance between centers | mm | 1500/3000 | 1500/3000 | 1620/2210/3120 |
Max. turning length | mm | 1500/3000 | 1500/3000 | 1620/2210/3120 |
Bed width | mm | 600 | 600 | 600 |
Spindle nose | mm | A2-11 | A2-11 | C11 |
Spindle bore | mm | 104 | 104 | 105 |
Spindle taper | - | Metric | Metric | Metric |
Spindle speed (steps) | rpm | 11-1250 (3), automatic | 11-1250 (3), automatic | 45-950 (3), Manual |
Center height | mm | 315 | 400 | 400 |
Chuck size | mm | 325 | 325 | 325 |
Cross travel (X) | mm | 420 | 420 | 470 |
Longitudinal travel (Z) | mm | 1500/3000 | 1500/3000 | 1620/2210/3120 |
X/Z-axis rapid feed speed | mm/min | 4/8 | 4/8 | 6/8 |
X/Z-axis min. feed unit | mm | 0.001 | 0.001 | 0.001 |
X-axis feed motor torque | NM | 10 | 10 | 15 |
Z-axis feed motor torque | NM | 15/30 | 15/30 | 18/23/30 |
Tool post type | - | V4/H6 | V4/H6 | V4 |
Tool section size | mm | 32x32 | 32x32 | 32x32 |
Tailstock quill diameter | mm | 100 | 100 | 100 |
Tailstock quill travel | mm | 250 | 250 | 250 |
Tailstock quill taper | - | MT5 | MT5 | MT5 |
Main motor power | kw | 11 | 15 | 11 |
Coolant pump power | kw | 0.12 | 0.12 | 0.12 |
Working accuracy | mm | IT6 | IT6 | IT6 |
X/Z-axis positioning accuracy | mm | 0.03/0.04 | 0.03/0.04 | 0.03/0.04 |
X/Z-axis repositioning accuracy | mm | 0.012/0.016 | 0.012/0.016 | 0.012/0.016 |
Roughness | um | Ra1.6 | Ra1.6 | Ra1.6 |
Machine dimensions (LxWxH) | mm | 4307/5785ⅹ2040ⅹ1855 | 4307/5785ⅹ2040ⅹ1855 | 4500/5100/6200ⅹ2040ⅹ1855 |
Machine weight | kg | 5800/7200 | 5800/7200 | 5400/5750/7080 |
