CNC Turning Machine Flat Bed Type CNC Lathe with Max. Spindle Speed r.p.m 1600 r.p.m
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | CK-660 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $35,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 2000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Medium Duty |
| Max. Weight Of Workpiece(kg): | Enquiry Us | Width Of Bed (mm): | 390 Mm |
| Spindle Motor Power(kW): | 15 | No. Of Spindles: | Single |
| Number Of Axes: | 2 | Travel (X Axis)(mm): | 470 Mm |
| Travel (Z Axis)(mm): | 1620 Mm | Positioning Accuracy (mm): | 0.03 |
| Repeatability (X/Y/Z) (mm): | 0.012 | Dimension(L*W*H): | 4500*2040*1855 |
| Voltage: | 220V/380V,50HZ | CNC Control System: | Fanuc/Siemens/GSK |
| Tool Post Stations: | 4 | Weight (KG): | 5400 |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | CNC |
| Machine Type: | Flat Bed CNC Lathe | Product Name: | CNC Lathe Mechine |
| Keyword: | Cnc Lathe | Precision: | High Precision Machine |
| Function: | Metal Turning | Color: | Customer Optional |
| Processing Type: | Turning CNC Lathe Mahcine | Model: | CK-660 |
| Max.swing Over Bed: | 660mm | Condition: | New |
| Spindle Bore(mm): | 105 | Toolpost Brand: | Enquiry Us |
| Showroom Location: | Egypt, Viet Nam, Russia | Marketing Type: | Hot Product 2019 |
| Year: | 2023 | Max. Spindle Speed (r.p.m): | 1600 R.p.m |
| Max. Turned Length (mm): | 2000 | Applicable Industries: | Enquiry Us |
| Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, Enquiry Us | Port: | China Port |
Product Description
Product Description

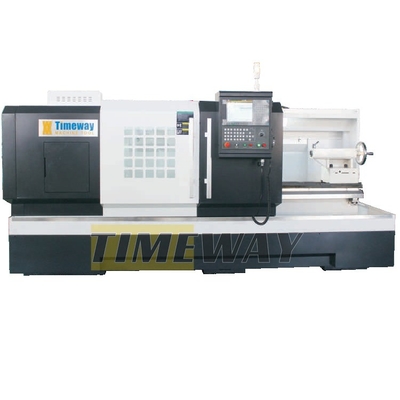

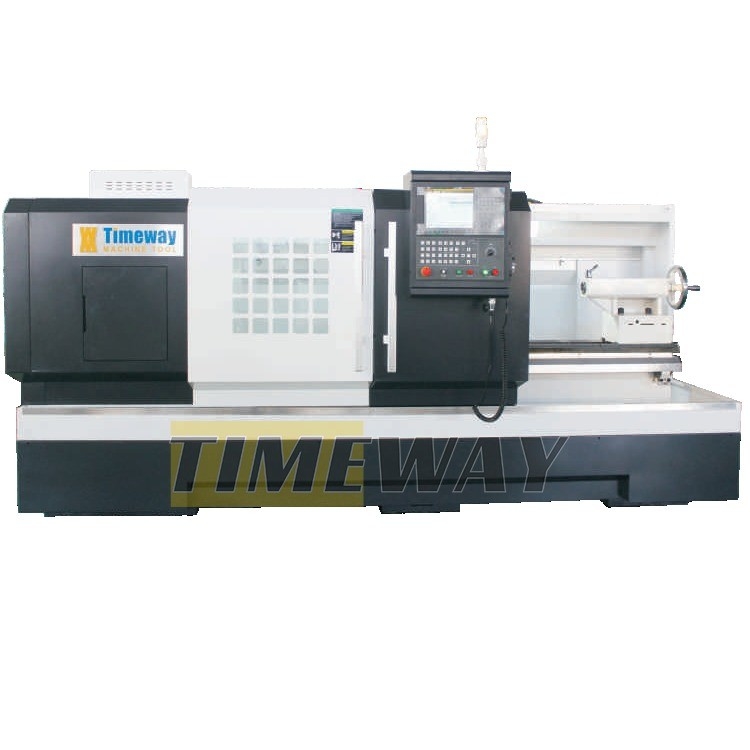

Flat Bed CNC Lathe
Features:

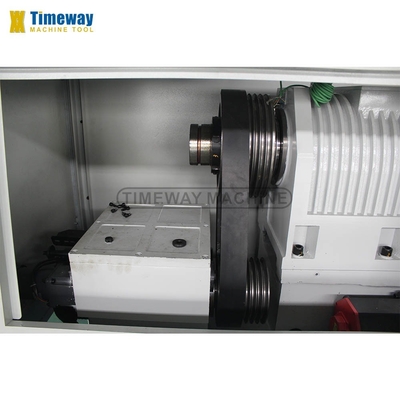

1. They are CNC horizontal lathes. Spindle speed is changed mechanically in three gears together with control of a frequency changer.

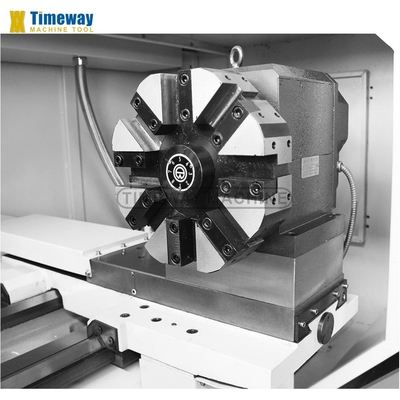

2. Complete with 4-station(standard)/6-station turret(optional), the lathes are available for different cuttings. The sliding door ensures the operators' safety.

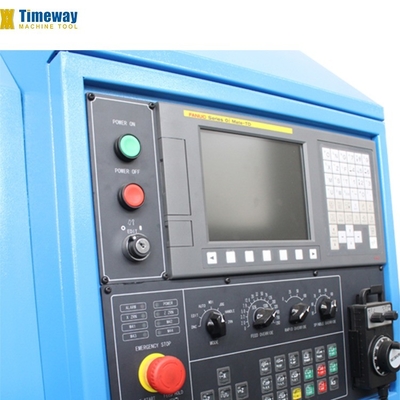

3. CNC systems such as FANUC 0i mate TD, Sinumerik 802D or GSK980TD system etc. is provided on request.
4. These lathes can perform internal and external cylindrical turning, arbitrary taper turning, facing and threading.
5. They are suitable for various middle or small batch production, especially for complicated and high accuracy workpieces.
Features:
1. They are CNC horizontal lathes. Spindle speed is changed mechanically in three gears together with control of a frequency changer.
2. Complete with 4-station(standard)/6-station turret(optional), the lathes are available for different cuttings. The sliding door ensures the operators' safety.
3. CNC systems such as FANUC 0i mate TD, Sinumerik 802D or GSK980TD system etc. is provided on request.
4. These lathes can perform internal and external cylindrical turning, arbitrary taper turning, facing and threading.
5. They are suitable for various middle or small batch production, especially for complicated and high accuracy workpieces.

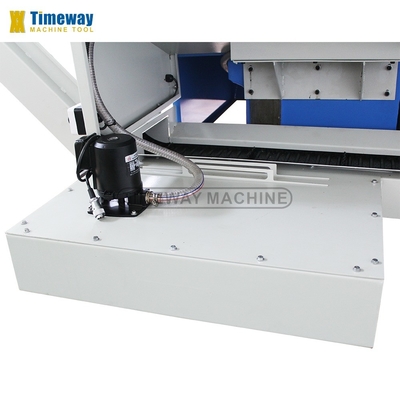

Detail Images
Specification
Specification | Unit | CK400 | CK500 | CK660 |
Max. swing over bed | mm | 420 | 500 | 660 |
Max.. swing over cross slide | mm | 210 | 290 | 430 |
Distance between centers | mm | 750 | 1000/1500/2000 | 1000/1500/2000 |
Max. turning length | mm | 750 | 1000/1500/2000 | 1000/1500/2000 |
Bed width | mm | 335 | 390 | 390 |
Spindle nose | mm | A2-6 | A2-8 | D10 |
Spindle bore | mm | 58 | 82 | 105 |
Spindle taper | - | MT6 | Metric 90 | Metric 90 |
Spindle speed (Manual steps) | rpm | 60-2000 (3) | 45-1600 (3) | 45-1600 (3) |
Center height | mm | 210 | 250 | 330 |
Chuck size | mm | 200 | 250 | 320 |
Cross travel (X) | mm | 295 | 295 | 365 |
Longitudinal travel (Z) | mm | 750 | 1000/1500/2000 | 1000/1500/2000 |
X/Z-axis rapid feed speed | mm/min | 8/10 | 8/12 | 8/12 |
X/Z-axis min. feed unit | mm | 0.001 | 0.001 | 0.001 |
X/Z-axis feed motor torque | NM | 5/7 | 5/7 | 7.5/10 |
Tool post type | - | V4 | V4 | V4 |
Tool section size | mm | 25x25 | 25x25 | 25x25 |

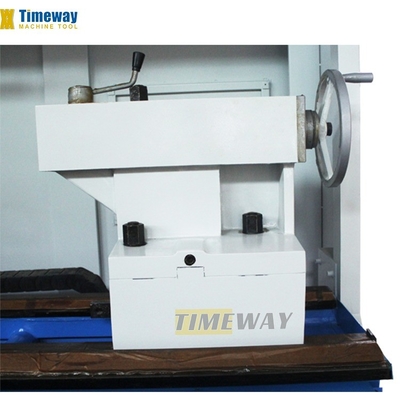

Tailstock quill diameter | mm | 65 | 75 | 75 |
Tailstock quill travel | mm | 150 | 150 | 150 |
Tailstock quill taper | - | M4 | M5 | M5 |
Main motor power | kw | 5.5 | 7.5 | 11/15 |
Coolant pump power | kw | 0.12 | 0.12 | 0.12 |
Machine weight | kg | 1800 | 2100/2300/2600 | 2100/2500/2800 |
