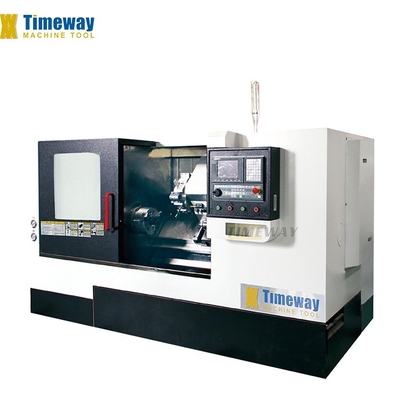

Slant Bed CNC Lathe with Max. Spindle Speed of 3500 r.p.m and 450mm Travel Z Axis
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | CK-32 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $58,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 350 |
|---|---|---|---|
| Structure: | Slant Bed Lathe | Machining Capacity: | Light Duty |
| Width Of Bed (mm): | 500 Mm | Spindle Motor Power(kW): | 7.5 |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 210 Mm | Travel (Z Axis)(mm): | 450 Mm |
| Dimension(L*W*H): | 2600*1800*1600 | Tool Post Stations: | 8 |
| Weight (KG): | 2700 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| CNC Or Not: | CNC | Machine Type: | Slant Bed CNC Lathe |
| Name: | High Precision CNC Lathe Machine | Keyword: | Cnc Lateh Machine |
| Product Type: | Economical CNC Lathe | Function: | Machining Metal |
| Control System: | SIEMENS GSK FANUC (optional) | Color: | Customer Optional |
| Processing Type: | Turning CNC Lathe Mahcine | Model: | CK-32 |
| Condition: | New | Spindle Bore(mm): | 56 |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Home Use, Retail, Construction Works , Energy & Mining | Showroom Location: | Egypt, Turkey, Romania |
| Core Components: | PLC | Year: | 2023 |
| Max. Spindle Speed (r.p.m): | 3500 R.p.m | Max. Turned Length (mm): | 350 |
| Marketing Type: | New Product 2021 | Port: | China Port |
Product Description
Product Description
The machine adopts a 45° inclined layout, and the bed is a tubular hollow structure, which greatly improves the bending and torsional rigidity of the machine tool during operation. The advanced bed provides a strong guarantee for the high precision of the whole machine.
It is more suitable for the processing of various shaft and disc parts with high precision requirements, difficult processing, many processes, and mass production.
It is more suitable for the processing of various shaft and disc parts with high precision requirements, difficult processing, many processes, and mass production.
Specification
Specification | Unit | CK-32 | CK-36 | CK-45 |
Max. swing over bed | mm | 420 | 550 | 500 |
Max. swing over cross slide | mm | 220 | 220 | 220 |
Standard turning diameter | mm | 210 | 210 | 210 |
Max. turning diameter | mm | 320 | 360 | 360 |
Max. turning length | mm | 350 | 500 | 750 |
Spindle speed | rpm | 3500 | 3000 | 2500 |
Spindle nose | - | A2-5 | A2-6 | A2-6 |
Spindle bore | mm | 56 | 62 | 66 |
Hydraulic chuck size | mm | 160 | 200 | 200 |
Cross travel (X) | mm | 210 | 230 | 220 |
Longitudinal travel (Z) | mm | 450 | 600 | 850 |
X/Z-axis rapid feed speed | m/min | 12/20 | 24/24 | 20/20 |
Hydraulic cool post type | - | 80-8T | 80-8T | 80-8T |
Tool section size | mm | 25x25/Φ32 | 25x25/Φ32 | 25x25/Φ32 |
Tailstock quill diameter | mm | 52 | 110 | 110 |
Tailstock quill travel | mm | 60 | 100 | 100 |
Tailstock quill taper | - | MT4 | MT5 | MT4 |
Bed structure | - | 45° Integral bed | 45° Integral bed | 45° Integral bed |
Guideway type | - | Linear/Sliding | Linear/Sliding | Linear/Sliding |
Main motor power | kw | 7.5 | 11 | 7.5 |
Power supply | kva | 30 | 25 | 30 |
Machine dimensions (LxWxH) | mm | 2600x1800x1600 | 2900x1800x1750 | 2900x1800x1600 |
Machine weight | kg | 2700 | 3200 | 3200 |

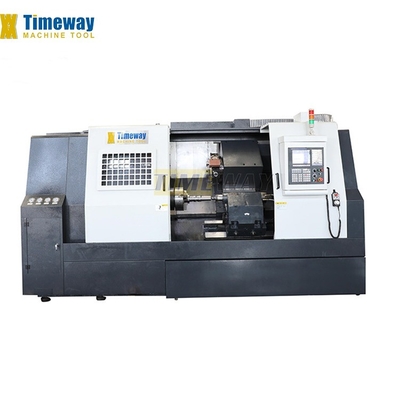

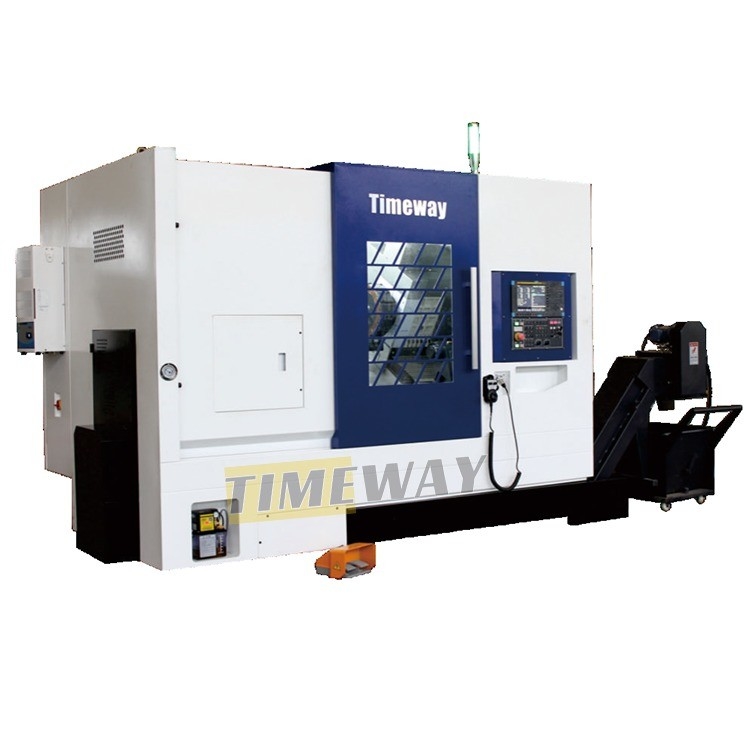

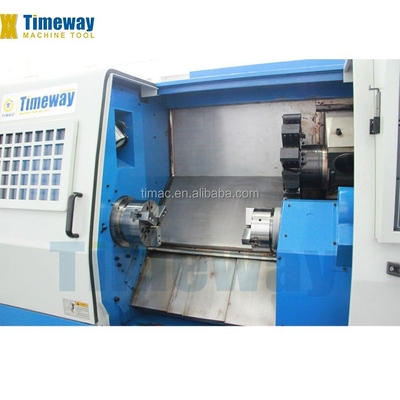

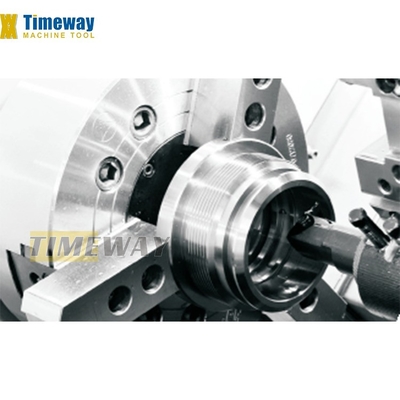

Detailed Images
