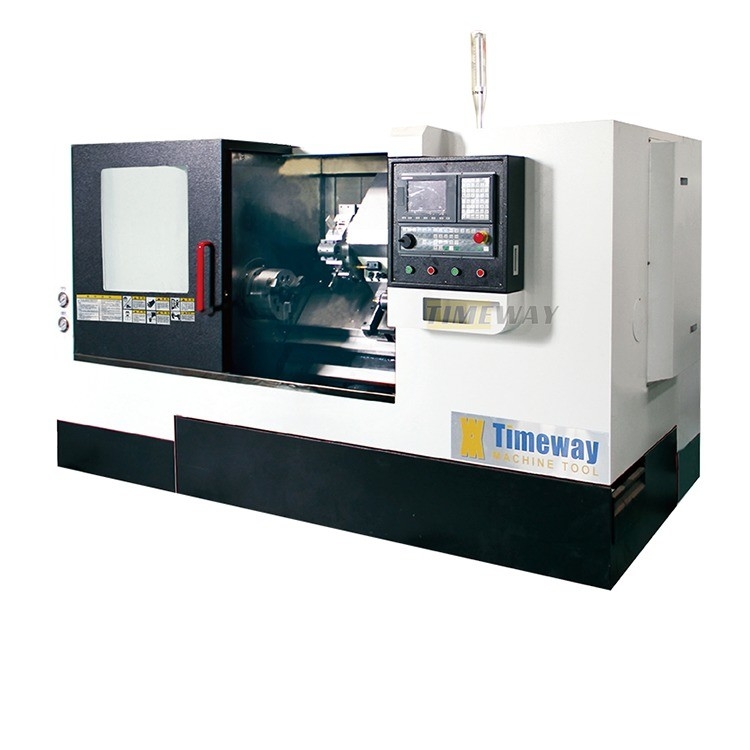

50HZ Voltage Type Slant Bed Type CNC Lathe Machine for Your Manufacturing Business
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | CK-80 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $69,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Slant Bed Lathe | Max. Length Of Workpiece (mm): | Enquiry Us |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Max. Weight Of Workpiece(kg): | Enquiry Us |
| Width Of Bed (mm): | 200 Mm | Spindle Motor Power(kW): | 22 |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 400 Mm | Travel (Z Axis)(mm): | 3200 Mm |
| Positioning Accuracy (mm): | Enquiry Us | Repeatability (X/Y/Z) (mm): | Enquiry Us |
| Dimension(L*W*H): | 5900*2200*2200 | Voltage: | 220V/380V,50HZ |
| CNC Control System: | Fanuc/Siemens/GSK | Tool Post Stations: | 8 |
| Weight (KG): | 7800 | Warranty: | 1 Year |
| Key Selling Points: | Long Service Life | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| CNC Or Not: | CNC | Machine Type: | Slant Bed CNC Lathe |
| Product Name: | CNC Lathe Mechine | Name: | High Precision CNC Lathe Machine |
| Keyword: | Cnc Lathe Machine | Precision: | High Precision Machine |
| Model: | CK-80 | Application: | Material Processing |
| Color: | Customer Optional | Max.swing Over Bed: | 800mm |
| Condition: | New | Toolpost Brand: | Enquiry Us |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Construction Works | Showroom Location: | Egypt, Viet Nam, Russia |
| Marketing Type: | Hot Product 2019 | Year: | Least Date |
| Max. Spindle Speed (r.p.m): | 1500 R.p.m | Spindle Bore(mm): | 112 |
| Max. Turned Length (mm): | 3000 | Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, Enquiry Us |
| Port: | China Port | ||
Product Description
Product Description
Slant Bed CNC Lathe
Induction:
3.The bed adopts the box-shaped structure, one-piece moulding casting technology, and 45-degree slant.
1.The full-function CNC lathe has a semi-closed-loop control system that increases productivity through high-speed cutting. It is suitable for machining all kinds of complex shapes of shaft, sleeve, disk parts, especially for multi-species, a small batch of turning processing.
2.Easy clamping, process adaptability, high processing efficiency, low scrap rate, good consistency of the finished product, and reducing the technical proficiency requirements of workers, easy programming, simple operation, which makes it is widely selected as the ideal small and medium-sized mechanical processing equipment.
3.The bed adopts the box-shaped structure, one-piece moulding casting technology, and 45-degree slant.
Specification
Specification | Unit | CK-80 |
Max. Swing over bed | mm | 800 |
Max. Swing over cross slide | mm | 640 |
Standard turning diameter | mm | 460 |
Max. Turning diameter | mm | 660 |
Max. Turning length | mm | 1000 |
Spindle speed | rpm | 1500 |
Spindle nose | - | A2-11 |
Spindle bore | mm | 112 |
Chuck size | mm | 380 |
Cross travel (X) | mm | 400 |
Longitudinal travel (Y) | mm | 1120 |
X/Z-axis rapid feed speed | m/min | 12/16 |
Hydraulic tool post type | - | 125-12T |
Tool section size | mm | 32×32 |
Tailstock quill diameter | mm | 150 |
Tailstock quill travel | mm | 150 |
Tailstock quill taper | - | MT5 |
Bed structure | - | 30° integral bed |
X-axis repositioning accuracy | mm | 0.008 |
Y-axis repositioning accuracy | mm | 0.01 |
Roughness | - | Ra1.6μm |
Main motor power | kw | 22 |
Power supply | kva | 50 |
Detailed Images
