Heavy Duty CNC Turning Automatic Flat Bed Metal Horizontal Lathe with Twin Spindles
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timac |
| Model Number: | AK-1600H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $58,000.00/acres 1-2 acres |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 1600 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Heavy Duty |
| Width Of Bed (mm): | 0 Mm | Spindle Motor Power(kW): | 75 |
| No. Of Spindles: | Twin | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 4000 Mm | Travel (Z Axis)(mm): | 1600 Mm |
| Positioning Accuracy (mm): | ±0.001 | Repeatability (X/Y/Z) (mm): | ±0.001 |
| Voltage: | Customer's Requirement | CNC Control System: | FANUC |
| Tool Post Stations: | 8, 4 | Weight (KG): | 120000 |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Max. Swing Over Bed: | 1600mm |
| Max. Swing Diameter Over Carriage: | 1250mm | Distance Between Centers: | 4000-20000mm |
| Loading Capacity: | 32tons | Bed Width: | 1600mm |
| Chuck Diameter: | 1600mm | Max. Torque Of Chuck: | 80KN.m |
| Spindle Taper Angle: | 75° | Spindle Speed Range: | 0.8~160rpm (stepless) |
| Range Of Cross Feed: | 1-2000mm/min | Condition: | New |
| Spindle Bore(mm): | Other | Applicable Industries: | Hotels, Building Material Shops, Machinery Repair Shops |
| Showroom Location: | Egypt, Turkey, Italy, Brazil, Peru, Indonesia, Mexico, Russia, Argentina | Marketing Type: | Hot Product 2019 |
| Core Components: | Bearing, PLC | Year: | 2023 |
| Max. Spindle Speed (r.p.m): | 160 R.p.m | ||
Product Description
Product Description

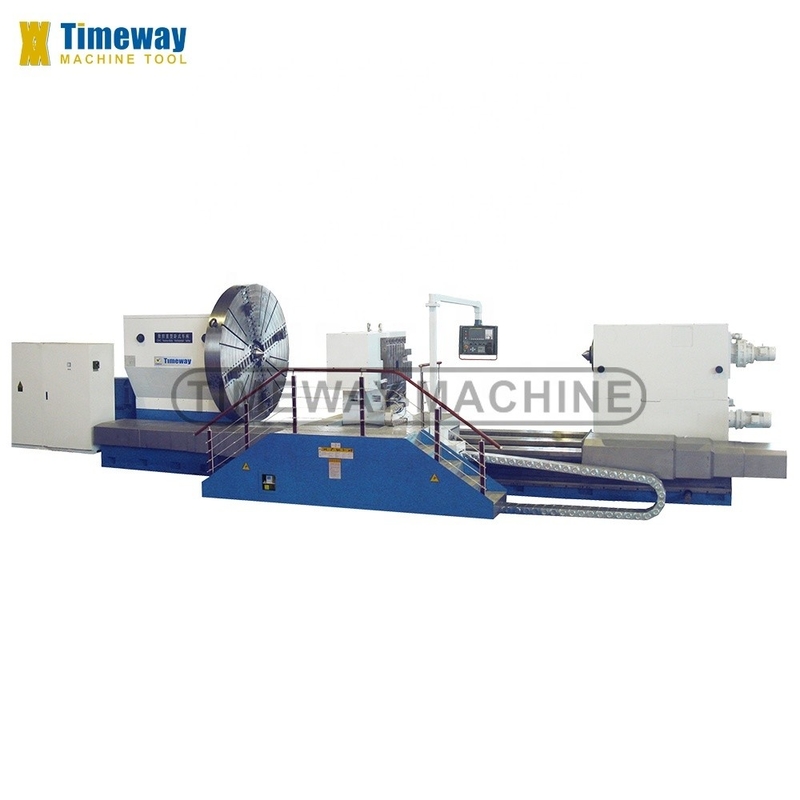

CNC Heavy Duty Horizontal Lathe AK-1600H
Features:
---This lathe bed is whole box-shaped three guide-way structure, adopting high standard cast iron (HT300) one molding casting, after the second aging treatment, it has the feature of stable performance; guide-way width (1600mm), good rigidity, anti-vibration ability.

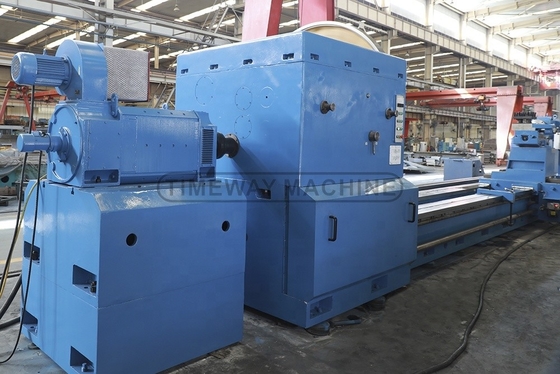

---The main mechanism is driven by the 75KW DC motor, using the method of adjustable magnetic regulation, adjustment voltage and hybrid speed regulating mode, the ratio is 1: 22.2, speed change is three steps, mechanical and electrical integrated speed ratio is 1: 200, spindle speed range is 0.8 ~ 160r / min and stepless speed change.
---The spindle bore diameter is large, headstock adopts the split type structure, and the contact rigidity is improved after
scraping. The spindle adopts the front and rear bearing structure, so that the radial and axial stiffness and rotation accuracy are high.

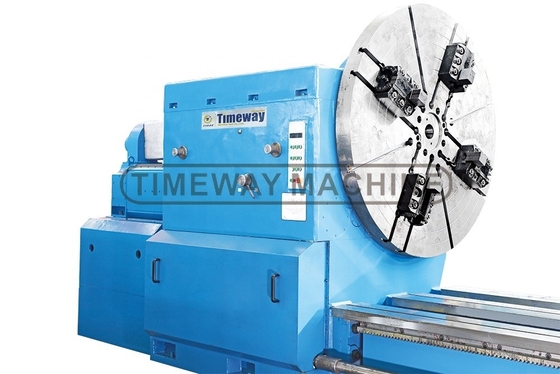

---Heavy duty four-jaw chuck. Standard configuration has two steady rest, one is closed type, the other is open type.
---It is equipped with protective device and emergency stop safety button, when the machine suddenly encountered a sudden power failure or other failures, due to the special design of the control circuit, it can be self-protection to ensure that the lathe and personnel safety.
---The tailstock is composed of upper and lower body, the upper body is equipped with a sleeve, a spindle and a pressure sensor, and the lower body is equipped with a rapid moving mechanism.
---This series lathe is based on the international market and the latest development trend of CNC lathes with semi-closed-loop control of the popular CNC heavy-duty lathes, 1600mm wide flat bed guide way provide users with a larger workpiece load, it is the ideal mechanical processing equipment for production of large parts .
---This lathe bed is whole box-shaped three guide-way structure, adopting high standard cast iron (HT300) one molding casting, after the second aging treatment, it has the feature of stable performance; guide-way width (1600mm), good rigidity, anti-vibration ability.
---The main mechanism is driven by the 75KW DC motor, using the method of adjustable magnetic regulation, adjustment voltage and hybrid speed regulating mode, the ratio is 1: 22.2, speed change is three steps, mechanical and electrical integrated speed ratio is 1: 200, spindle speed range is 0.8 ~ 160r / min and stepless speed change.
---The spindle bore diameter is large, headstock adopts the split type structure, and the contact rigidity is improved after
scraping. The spindle adopts the front and rear bearing structure, so that the radial and axial stiffness and rotation accuracy are high.
---Heavy duty four-jaw chuck. Standard configuration has two steady rest, one is closed type, the other is open type.
---It is equipped with protective device and emergency stop safety button, when the machine suddenly encountered a sudden power failure or other failures, due to the special design of the control circuit, it can be self-protection to ensure that the lathe and personnel safety.

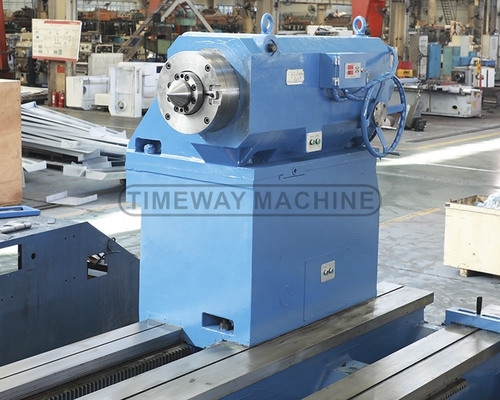

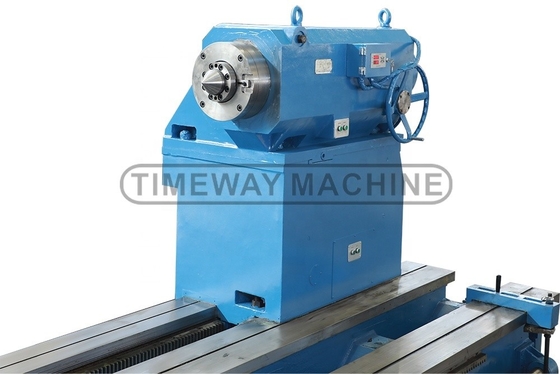

---The tailstock is composed of upper and lower body, the upper body is equipped with a sleeve, a spindle and a pressure sensor, and the lower body is equipped with a rapid moving mechanism.
---This series lathe is based on the international market and the latest development trend of CNC lathes with semi-closed-loop control of the popular CNC heavy-duty lathes, 1600mm wide flat bed guide way provide users with a larger workpiece load, it is the ideal mechanical processing equipment for production of large parts .
Specification
Specification | Unit | AK-1600H |
Max. swing over bed | mm | 1600 |
Max.. swing over cross slide | mm | 1250 |
Distance between centers | mm | 4000-20000 |
Bed width | mm | 1600 (3 slideways ) |
Loading capaciity | tons | 32 |
Chuck diameter | mm | 1600 |
Max. torque of chuck | KN.m | 80 |
Spindle taper angle | ° | 75° |
Spindle speed range | rpm | 0.8~160 (stepless) |
Range of cross feed | mm/min | 1-2000 |
Cross travel | mm | 725 |
Range of longitudinal feed | mm/min | 1-4000 |
Longitudinal travel | mm | 4000-20000 |
Tool-post working position | - | V4 |
Section of tool shank | mm | 70×70 |
Max. cutting force of too-post | KN | 80 |
Tailstock quill diameter | mm | 300 |
Tailstock quill travel | mm | 300 |

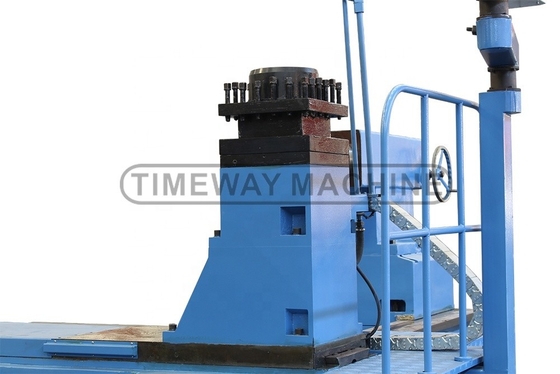

Tailstock quill taper | - | 100/1:7 |
Tailstock rapid feed speed | mm/min | 3000 |
Tailstock quill rapid feed speed | mm/min | 664 |
Main motor power | kw | 75 |
Rapid feed motor power | kw | 1.5 |
Machine dimensions (LxWxH) | mm | 15580x3500x2280 |
Machine weight | kg | 48000 |
Accessories
Standard accessories：
√ FANUC/GSK/SIEMENS CNC system
√ 4-jaw heavy duty chuck
√ 4-station electric tool-post
√ Work lamp
√ Cooling system
√ Semi-closed guard
√ Manual pulse generator (MPG)
√ Dead centers
√ Oil gun
√ Pilot lamp
√ Automatic lubrication pump
√ Manual moving tailstock
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)
√ 4-station electric tool-post
√ Work lamp
√ Cooling system
√ Semi-closed guard
√ Manual pulse generator (MPG)
√ Dead centers
√ Oil gun
√ Pilot lamp
√ Automatic lubrication pump
√ Manual moving tailstock
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)
Optional accessories：
_ Steady rest _ other type tool-post
_ Live centers
_ Air conditioner
_ Chip conveyor
_ Roller support
_ Live centers
_ Air conditioner
_ Chip conveyor
_ Roller support
Detail Images
Packing & Delivery
This is the picture of the packaging in our factory！You can see our package is standardized andcentralized , then they will be shipped to your designated place.
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Exhibition & Training
This is a picture of clients visiting our company when we hold exhibitions around the world.
FAQ
Q: Why choose TIMEWAY MACHINE?
A:1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A:(1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
