High Precision Timeway CNC Heavy Duty Horizontal Lathe AK-1600 850 mm x 500 mm Travel
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timac |
| Model Number: | AK-1600 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $56,000.00/acres 1-2 acres |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 12000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Heavy Duty |
| Width Of Bed (mm): | 0 Mm | Spindle Motor Power(kW): | 30 |
| No. Of Spindles: | 1 | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 850 Mm | Travel (Z Axis)(mm): | 500 Mm |
| Positioning Accuracy (mm): | ±0.003 | Repeatability (X/Y/Z) (mm): | ±0.012 |
| Voltage: | 220V | Tool Post Stations: | 8 |
| Weight (KG): | 34800 | Warranty: | 1 Year |
| Key Selling Points: | Automatic | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Swing Over Bed: | 1600mm | Swing Over Carriage: | 1250mm |
| Max. Length Of Workpiece: | 3000/5000/6000/8000/10000/12000mm | Max. Turning Length: | 2800/4800/5800/7800/9800/11800mm |
| Span Of Guideway: | 1100mm | Chuck Diameter: | 1400mm |
| Max. Weight Of Workpiece: | 16t | Spindle Nose: | A2-15 |
| Spindle Bore: | 100mm | Spindle Speed Range (stepless): | 3-320rpm |
| Condition: | New | Spindle Bore(mm): | 100 |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant | Showroom Location: | Peru, Saudi Arabia, Indonesia, Thailand, UAE |
| Marketing Type: | Hot Product 2019 | Core Components: | Motor, Pump |
| Year: | 2023 | Max. Spindle Speed (r.p.m): | 320 R.p.m |
Product Description
Product Description

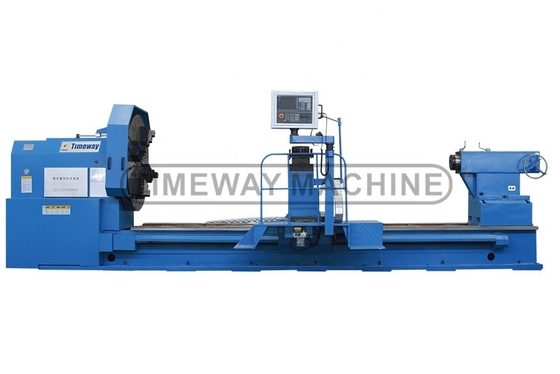

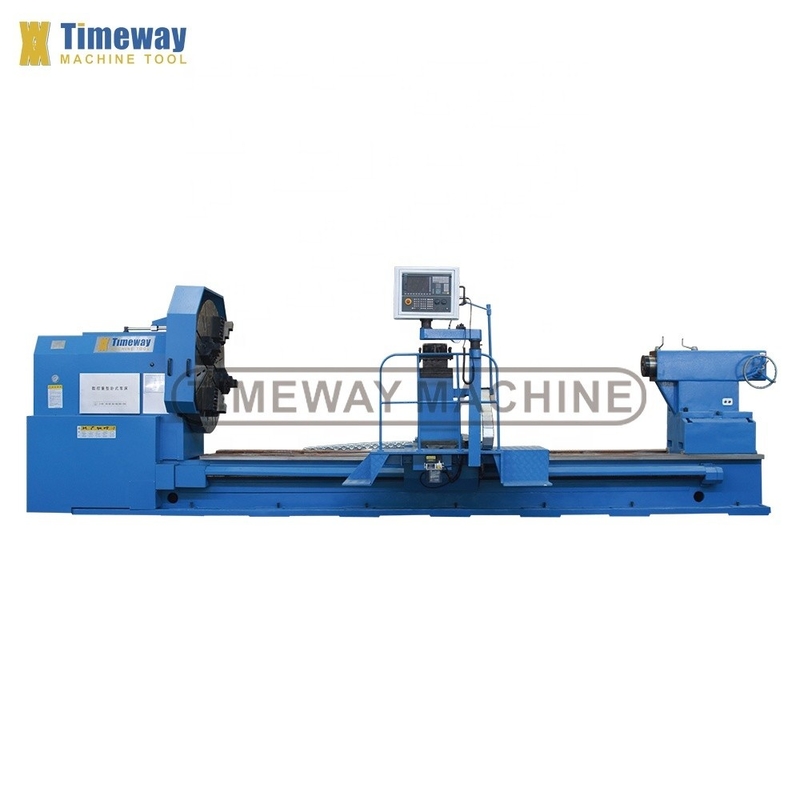

CNC Heavy Duty Horizontal Lathe AK-1600:
---This series machine bed as a whole box-shaped structure, the use of high standard cast iron (HT300) a molding casting, after the second aging treatment, stable performance; rail span (1100mm), good rigidity, anti-vibration ability.

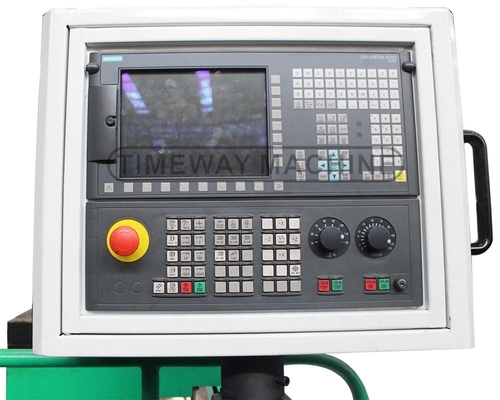

---CNC system uses the world's most well-known SIEMENS 828D control system (also available according to user requirements matching other systems), can simultaneously control the 2-axis (X, Z), and has a straight line, arc and thread interpolation and other fixed cycle and other functions, the minimum resolution of 0.001mm.
---CNC system uses the world's most well-known SIEMENS 828D control system (also available according to user requirements matching other systems), can simultaneously control the 2-axis (X, Z), and has a straight line, arc and thread interpolation and other fixed cycle and other functions, the minimum resolution of 0.001mm.
Specification
Specifications | Unit | AK-1600 |
Swing over bed | mm | 1600 |
Swing over carriage | mm | 1250 |
Max. length of workpiece | mm | 3000/5000/6000/8000/10000/12000 |
Max. turning length | mm | 2800/4800/5800/7800/9800/11800 |
Span of guideway | mm | 1100 |
Chuck diameter | mm | 1400 |
Max. weight of workpiece | t | 16 |
Spindle nose | mm | A2-15 |
Spindle bore | mm | 100 |
Spindle speed range (stepless) | rpm | 3-320 |
Accessories
STANDARD ACCESSORIES:
FANUC/GSK/SIEMENS CNC system,
4-jaw chuck,
4-station electric tool-post,
Work lamp,
Cooling system,
Manual pulse (MPG),
Dead centers,
Oil gun,
Pilot lamp,
Automatic lubrication pump,
Electric moving tailstock,
Tools & tool-box,
Leveling wedge & bolts,
Operation manual (English).
4-station electric tool-post,
Work lamp,
Cooling system,
Manual pulse (MPG),
Dead centers,
Oil gun,
Pilot lamp,
Automatic lubrication pump,
Electric moving tailstock,
Tools & tool-box,
Leveling wedge & bolts,
Operation manual (English).
OPTIONAL ACCESSORIES:
6/8-station tool-post,
Steady rest,
Roller support,
Full guard,
Live centers,
Air conditioner,
Chip conveyor
Roller support,
Full guard,
Live centers,
Air conditioner,
Chip conveyor
Detail Images

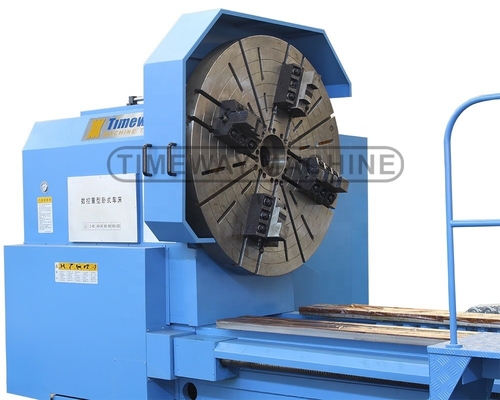

Chuck：
Standard 4-jaw independent chuck to clamping special-shape parts.

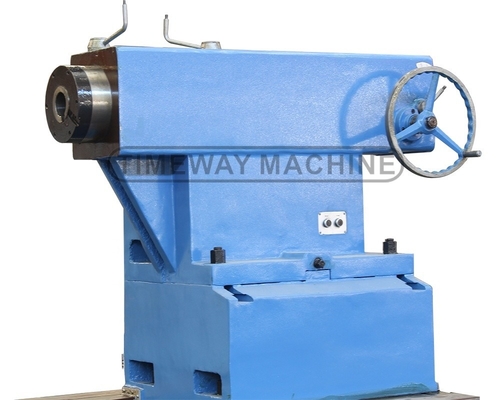

Electric moving tailstock:
Flexible and simple operation, to reduce labor intensity and increase operating pleasure.

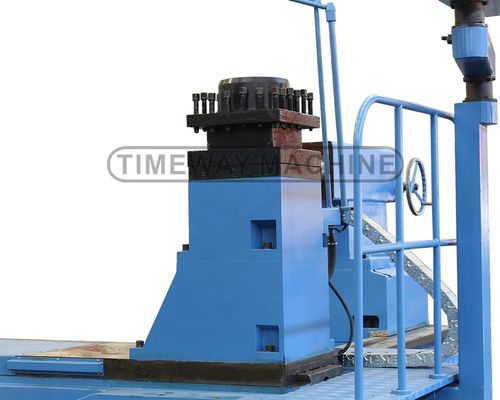

4-stations electric turret:
Adopt famous brand electric turret, high positioning accuracy
Automatic lubrication pump:
Automatically and intermittently lubricate each guide rails to extend the service life of the machine.
6-stations horizontal turret:
Optional
6-stations vertical turret:
Optional
Packing & Delivery
This is the picture of the packaging in our factory！You can see our package is standardized and centralized , then they will be shipped to your designated place.
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Certifications
Since our company established, we have obtained many certificates. The above picture is for your reference. We will continue to provide excellent machine tools for domestic and foreign users.
