Sell Big Swing Horizontal Flat Bed CNC Turning Lathe Machine with Metric 140 Taper Hole
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timac |
| Model Number: | AK-1800C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $110,000.00/acres >=1 acres |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 1800 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Enquiry Us |
| Width Of Bed (mm): | 0 Mm | Spindle Motor Power(kW): | 30 |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 700 Mm | Travel (Z Axis)(mm): | 500 Mm |
| Positioning Accuracy (mm): | Enquiry Us | Repeatability (X/Y/Z) (mm): | Enquiry Us |
| Dimension(L*W*H): | 15020*2665*2680 | Voltage: | 220V/380V,50HZ |
| CNC Control System: | Fanuc/Siemens/GSK | Tool Post Stations: | 12 |
| Weight (KG): | 20000 | Warranty: | 1 Year |
| Key Selling Points: | Long Service Life | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Swing Over Bed: | 1800mm | Swing Over Carriage: | 1440mm |
| Max. Length Of Workpiece: | 2000/3000/4000/5000/6000/8000/10000/12000/14000/16000/18000mm | Max. Turning Length: | 1730/2730/3730/4730/5730/7730/9730/11730/13730/15730/17730mm |
| Width Of Bed: | 970mm | Loading Capacity: | 10000kg |
| Spindle Nose: | A2-15 | Chuck(manual): | 4-jaw Chuck |
| Spindle Bore: | 130mm | Taper Hole Of Spindle: | Metric 140 |
| Condition: | New | Spindle Bore(mm): | 130 |
| Toolpost Brand: | Enquiry Us | Applicable Industries: | Hotels, Food & Beverage Factory, Farms, Home Use, Retail, Construction Works |
| Showroom Location: | Egypt, Viet Nam, Russia | Marketing Type: | Hot Product 2019 |
| Year: | Least Date | Max. Spindle Speed (r.p.m): | 320 R.p.m |
| Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, Enquiry Us | ||
Product Description
Product Description

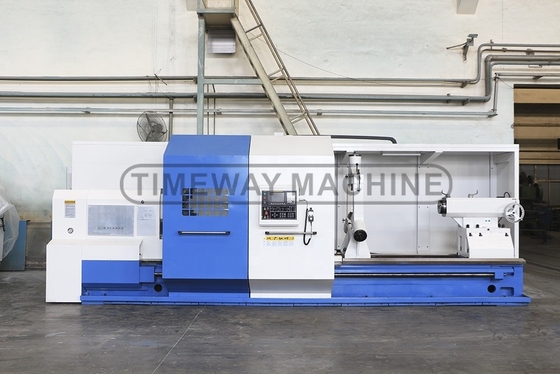

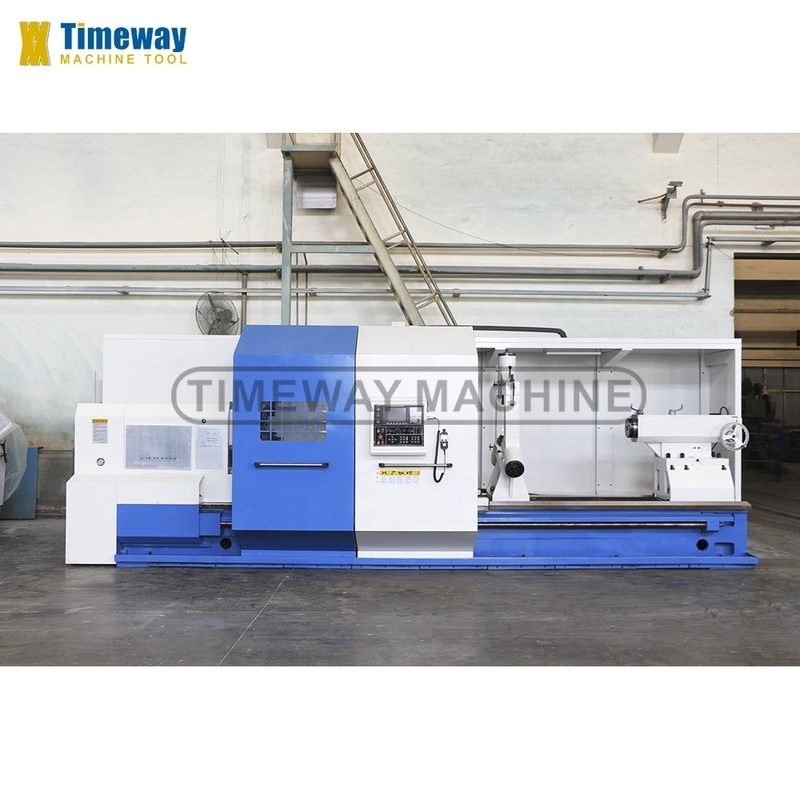

CNC Heavy Duty Horizontal Lathe AK-1800C
Specification
Specifications | Units | AK-1600C | AK-1800C | |
Swing over bed | mm | 1600 | 1800 | |
Swing over carriage | mm | 1210 | 1440 | |
Max. length of workpiece | mm | 2000/3000/4000/5000/6000/8000/10000/12000/14000/16000/18000 | ||
Max. turning length | mm | 1730/2730/3730/4730/5730/7730/9730/11730/13730/15730/17730 | ||
Width of bed | mm | 970 | 970 | |
Loading capacity | kg | 10000 | 10000 | |
Spindle nose | - | A2-15 | A2-15 | |
Chuck(manual) | - | 4-jaw chuck | 4-jaw chuck | |
Spindle bore | mm | 130 | 130 | |
Taper hole of spindle | - | Metric 140 | Metric 140 | |
Spindle speed range/steps | rpm | 3.15-315 (manual 21steps, CCW); 3.5-291 (manual 12steps, CW); 3-320 (manual 4steps, stepless each steps); 3-320 (Automatic 4steps, stepless each steps) | ||
Center height | mm | 820 | 900 | |
Min.feed unit of X/Z-axis | mm | 0.001/0.001 | 0.001/0.001 | |
Rapid speeds of X/Z-axis | mm/min | 3000/6000 | 3000/6000 | |
Max.travel of X-axis | mm | 630 | 720 | |
Tool-post working position | - | V4 | V4 | |
Indexing time | s | 2.6 | 2.6 | |
Indexing repeatility | mm | 0.01 | 0.01 | |
Section of tool shank | mm | 40x40 | 40x40 | |
Diameter of tailstock quill | mm | 220 | 220 | |
Travel of tailstock quill | mm | 300 | 300 | |
Taper hole of tailstock quill | - | MT6 | MT6 | |
Working accuracy | - | IT6-IT7 | IT6-IT7 | |
Surface roughness | um | Ra1.6 | Ra1.6 | |
Main motor power | kw | 22 | 22 | |
Accessories
Standard accessories：
FANUC/GSK/SIEMENS CNC system,
4-jaw chuck,
4-station electric tool-post,
Work lamp,
Cooling system,
Manual pulse (MPG),
Dead centers,
Oil gun,
Pilot lamp,
Automatic lubrication pump,
Electric moving tailstock,
Tools & tool-box,
Leveling wedge& bolts,
Operation manual (English).
4-station electric tool-post,
Work lamp,
Cooling system,
Manual pulse (MPG),
Dead centers,
Oil gun,
Pilot lamp,
Automatic lubrication pump,
Electric moving tailstock,
Tools & tool-box,
Leveling wedge& bolts,
Operation manual (English).
Optional accessories：
6/8-station tool-post,
Steady rest,
Follow rest,
Semi-closed guard,
Live centers,
air conditioner,
Chip conveyor
Follow rest,
Semi-closed guard,
Live centers,
air conditioner,
Chip conveyor
Details of Accessories:

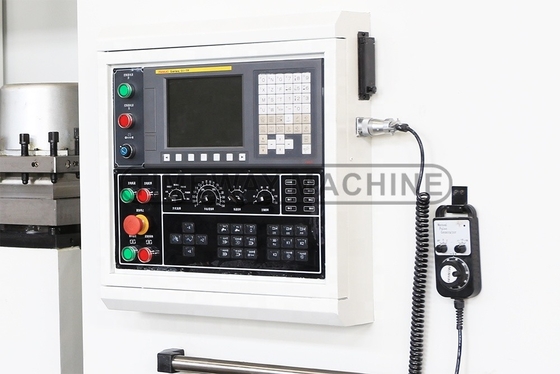

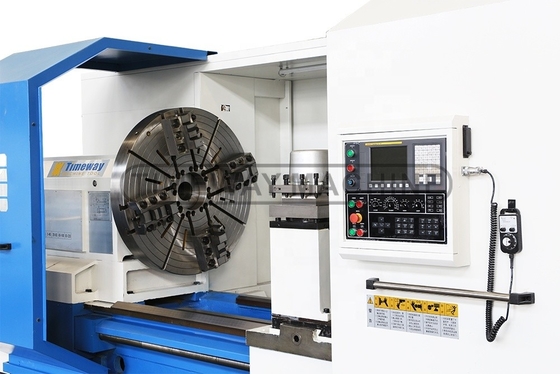

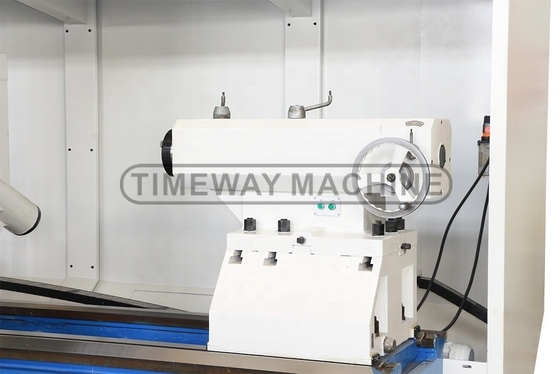

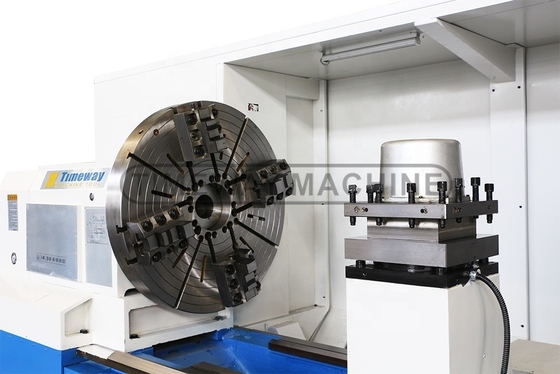

The above is a detailed picture of the machine, you can understand this machine more intuitively.
Packing & Delivery
This is the picture of the packaging in our factory！You can see our package is standardized and centralized , then they will be shipped to your designated place.
