High Precision AK-800B Heavy Duty CNC Horizontal Lathe with ±0.001mm Positioning Accuracy
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timac |
| Model Number: | AK-800B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $32,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 8000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Heavy Duty |
| Width Of Bed (mm): | 0 Mm | Spindle Motor Power(kW): | 15 |
| No. Of Spindles: | Twin | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 390 Mm | Travel (Z Axis)(mm): | 315 Mm |
| Positioning Accuracy (mm): | ±0.001 | Repeatability (X/Y/Z) (mm): | ±0.008 |
| Dimension(L*W*H): | 10580*1800*1880 | CNC Control System: | FANUC |
| Tool Post Stations: | 8 | Weight (KG): | 9750 |
| Warranty: | 1 Year | Key Selling Points: | Automatic |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Swing Over Bed: | 800mm |
| Swing Over Carriage: | 510mm | Max. Length Of Workpiece: | 8000mm |
| Max. Turning Length: | 7850mm | Span Of Guideway: | 550mm |
| Loading Capacity: | 2000kg | Length: | 9750 |
| Width: | 10485 | Height: | 2219 |
| Key Word: | Cnc Heavy Duty Horizontal Lathe | Condition: | New |
| Spindle Bore(mm): | 100 | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant |
| Showroom Location: | Peru, Saudi Arabia, Indonesia, Russia, Spain, Thailand | Marketing Type: | Hot Product 2019 |
| Core Components: | Motor, Pump | Year: | 2022 |
| Max. Spindle Speed (r.p.m): | 1000 R.p.m | Max. Turned Length (mm): | 7850 |
| Port: | China Port | ||
Product Description
Summary
This bed is the box-shaped structure, adopts high standard cast iron one molding casting ,after the second aging treatment, with at able performance.
Product Description

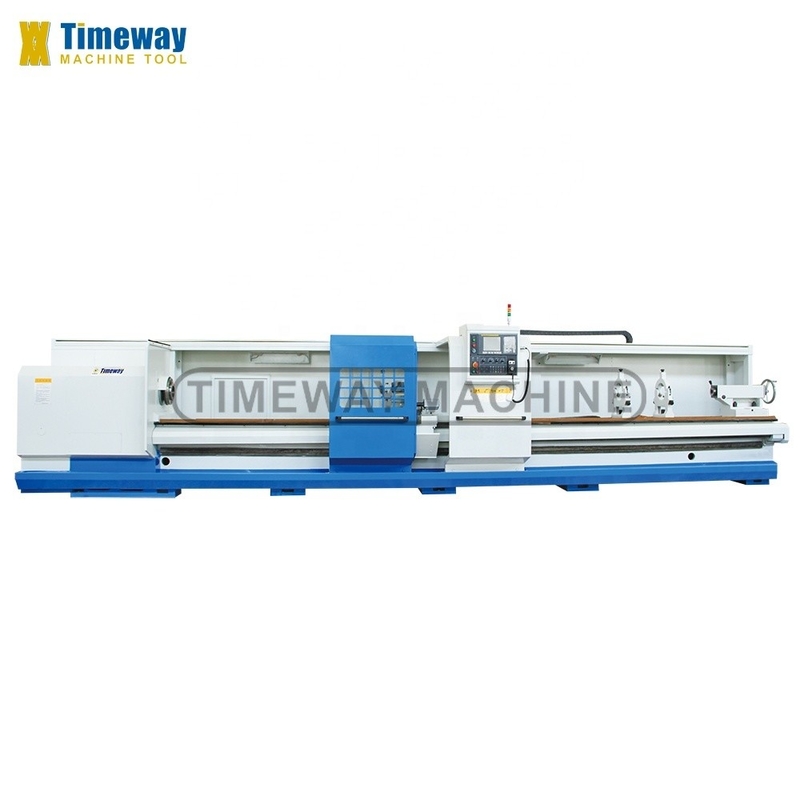

CNC Heavy Duty Horizontal Lathe AK-800B
Specification
Specifications | Unit | AK-800B |
Swing over bed | mm | 800 |
Swing over carriage | mm | 510 |
Max. length of workpiece | mm | 8000 |
Max. turning length | mm | 7850 |
Span of guideway | mm | 550 |
Loading capacity | kg | 2000 |
Length | mm | 9750 |
Width | mm | 10485 |
Height | mm | 2219 |
Key word | - | cnc heavy duty horizontal lathe |
Packing & Delivery
This is the picture of the packaging in our factory！You can see our package is standardized and centralized , then they will be shipped to your designated place.
Company Profile

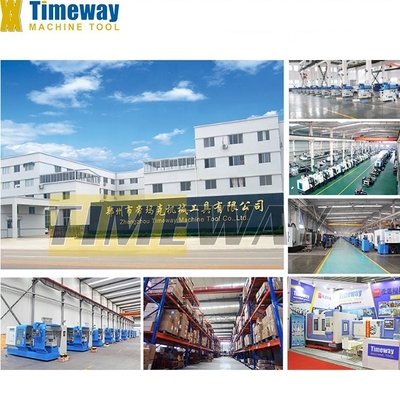

Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Exhibition & Training
This is a picture of clients visiting our company when we hold exhibitions around the world.
Certifications
Since our company established, we have obtained many certificates. The above picture is for your reference. We will continue to provide excellent machine tools for domestic and foreign users.
FAQ
Q: Why choose TIMEWAY MACHINE?
A:1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A:(1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after d
elivery. Even beyond the period, we will supply lifetime service for machine.
