Metal CNC Lathe AK-2000H High Precision and Heavy Duty with Max. torque of chuck 80KN.m
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | AK-2000H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $36,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 20000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Heavy Duty |
| Max. Weight Of Workpiece(kg): | Others | Width Of Bed (mm): | 0 Mm |
| No. Of Spindles: | Twin | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 725 Mm | Travel (Z Axis)(mm): | 20000 Mm |
| Positioning Accuracy (mm): | ±0.003 | Repeatability (X/Y/Z) (mm): | ±0.012 |
| Voltage: | Customer's Requirement | CNC Control System: | FANUC |
| Tool Post Stations: | 4 | Weight (KG): | 21000 |
| Warranty: | 1 Year | Key Selling Points: | High Productivity |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Range Of Spindle Speed(r.p.m): | 0.8 - 160 R.p.m |
| Travel (Y Axis)(mm): | 20000 Mm | Spindle Taper: | BT40 |
| Cutting Torque: | 0 N.m | Rapid Feed Speed(mm/min): | 1 - 2000 Mm/min |
| Feed Speed(mm/min): | 1 - 4000 Mm/min | Min. Time Of Tool Change(s): | 0.7 |
| Max. Swing Over Bed: | 2000mm | Max. Swing Over Cross Slide: | 1600mm |
| Distance Between Centers: | 4000-20000mm | Bed Width: | 1600mm |
| Loading Capacity: | 25/32/40tons | Chuck Diameter: | 1600/1800mm |
| Max. Torque Of Chuck: | 80KN.m | Spindle Taper: | 1:7 |
| Spindle Speed Range: | 0.8~160 Rpm | Range Of Cross Feed: | 1-2000mm/min |
Product Description
Product Description

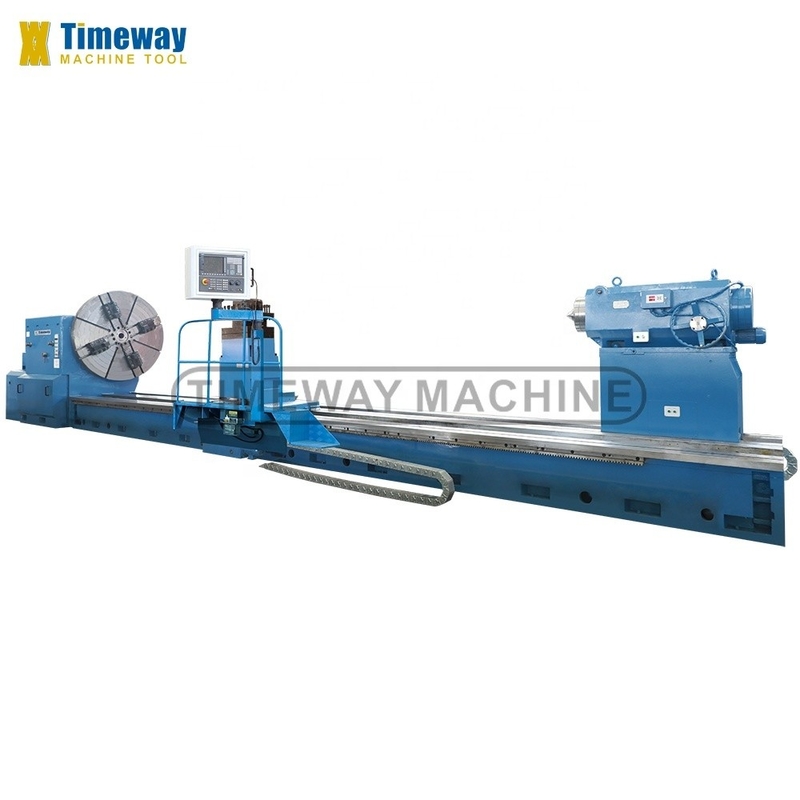

CNC Heavy Duty Horizontal Lathe
Specification
SPECIFICATION | UNIT | AK-2000H |
Max. swing over bed | mm | 2000 |
Max. swing over cross slide | mm | 1600 |
Distance between centers | mm | 4000-20000 |
Bed width | mm | 1600mm |
Loading capacity | tons | 25/32/40 |
Chuck diameter | mm | 1600/1800 |
Max. torque of chuck | KN.m | 80 |
Spindle taper | - | 1:7 |
Spindle speed range | rpm | 0.8~160 |
Range of cross feed | mm/min | 1-2000 |
Cross travel | mm | 725 |
Range of longitudinal feed | mm/min | 1-1400 |
Longitudinal travel | mm | 4000-20000mm |
Tool-post working position | - | V4 |
Section of tool shank | mm | 70×70 |
Max. cutting force of too-post | KN | 80 |

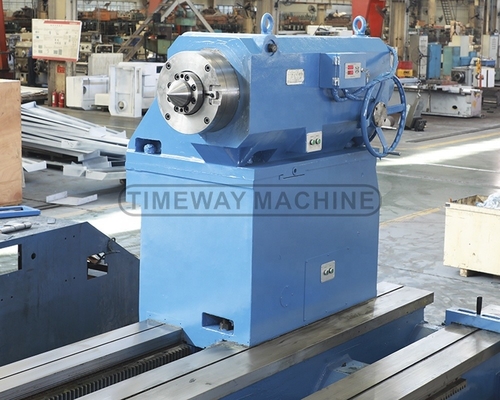

Tailstock quill diameter | mm | 300 |
Accessories
Standard accessories：
FANUC/GSK/SIEMENS CNC system,

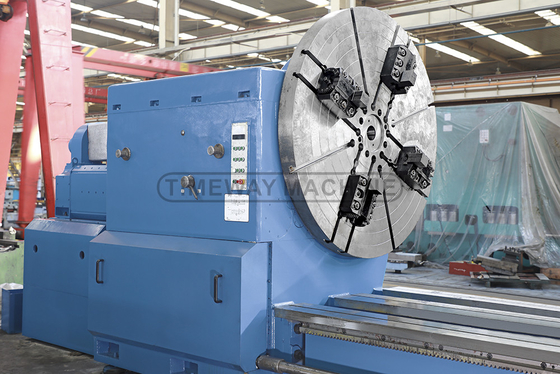

4-jaw heavy duty chuck,

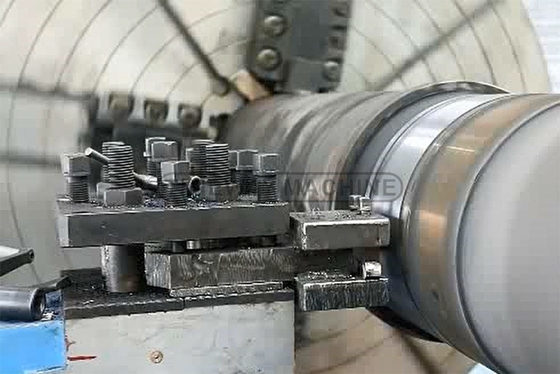

4-station electric tool-post,
Work lamp,
Pilot lamp,
Cooling system,
Manual pulse generator (MPG),
Dead centers,
Automatic lubrication pump,
Electric moving tailstock,
Tools & tool-box,
Leveling wedge & bolts,
Operation manual (English).
4-station electric tool-post,
Work lamp,
Pilot lamp,
Cooling system,
Manual pulse generator (MPG),
Dead centers,
Automatic lubrication pump,
Electric moving tailstock,
Tools & tool-box,
Leveling wedge & bolts,
Operation manual (English).
Optional accessories：
Other type tool-post,
Steady rest,
Roller support,
Live centers,
Air conditioner,
Chip conveyor
Roller support,
Live centers,
Air conditioner,
Chip conveyor
Packing & Delivery
This is the picture of the packaging in our factory! You can see our package is standardized and centralized , then they will be shipped to your designated place.
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Exhibition & Training
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
Certifications
Since our company established, we have obtained many certificates. The above picture is for your reference. We will continue to provide excellent machine tools for domestic and foreign users.
FAQ
Q: Why choose TIMEWAY MACHINE?
A:1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A:(1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
