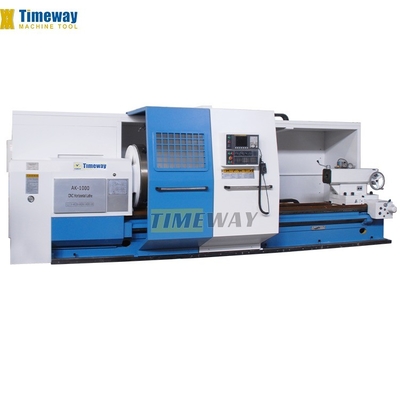

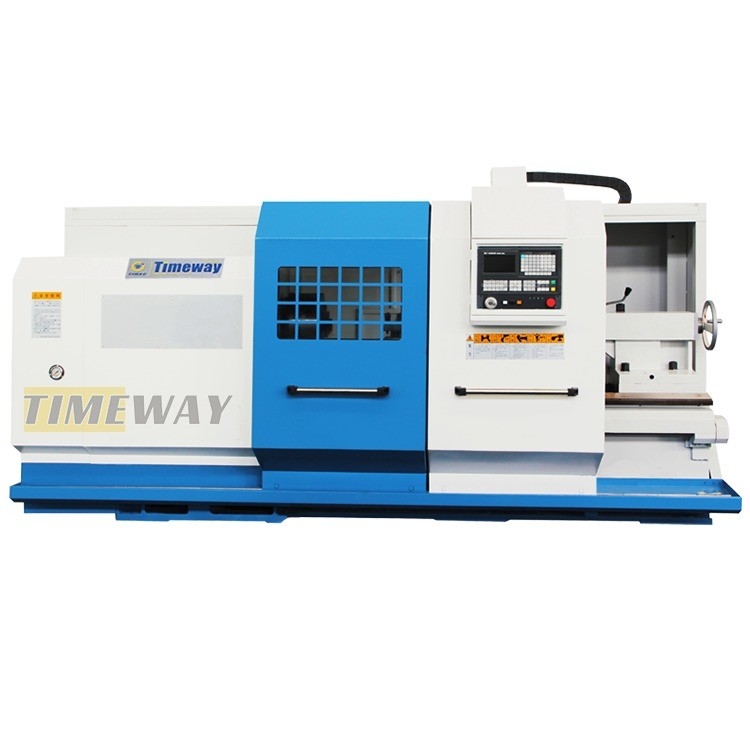

1400mm Swing CNC Lathe Machine for Single Spindle Operation and 4 Tool Post Stations
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | AK-1400B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $89,620.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | Optional |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Heavy Duty |
| Max. Weight Of Workpiece(kg): | 8000 | Width Of Bed (mm): | 100 Mm |
| Spindle Motor Power(kW): | 30 | No. Of Spindles: | Single |
| Number Of Axes: | 2 | Travel (X Axis)(mm): | 700 Mm |
| Travel (Z Axis)(mm): | 1000 Mm | Positioning Accuracy (mm): | 0.01 |
| Dimension(L*W*H): | 4300*2350*2150 | CNC Control System: | GSK |
| Tool Post Stations: | 8, 4 | Weight (KG): | 9800 |
| Warranty: | 1 Year | Key Selling Points: | Multifunctional |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | CNC |
| Machine Type: | Flat Bed CNC Lathe | Product Name: | CNC Lathe Mechine |
| Function: | Machining Metal | Precision: | High Precision Machine |
| Keyword: | Cnc Metal Lathe Machine | Name: | Metal Cnc Lathe |
| Control System: | SIEMENS GSK FANUC (optional) | Color: | Customers' Requirement |
| Processing Type: | Turning CNC Lathe Mahcine | Condition: | New |
| Spindle Bore(mm): | 130 | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Construction Works , Energy & Mining |
| Showroom Location: | Egypt, Turkey, Morocco | Marketing Type: | Hot Product 2019 |
| Core Components: | PLC, Gearbox, Motor | Year: | 2023 |
| Max. Spindle Speed (r.p.m): | 320 R.p.m | Port: | China Port |
Product Description
Product Description
* Longitudinal and cross feeds are effected by ball leadscrews.

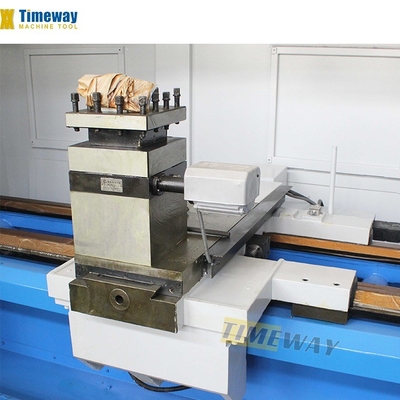

* Either vertical or horizontal 4/6 station tool post or gang tools can be selected.
* The tool post is located on precision contrite gears with a high repeated positioning accurcy.
* Both chuck and tailstock are supplied with hydraulic or manual type.
* The surface of the guideways is supersonic frequency hardened and precision ground with a long service life.
* The spindle system is high in the rigidity and accuracy.
* An inverter is used to realize variable speed.
* Either vertical or horizontal 4/6 station tool post or gang tools can be selected.
* The tool post is located on precision contrite gears with a high repeated positioning accurcy.
* Both chuck and tailstock are supplied with hydraulic or manual type.
* The surface of the guideways is supersonic frequency hardened and precision ground with a long service life.
* The spindle system is high in the rigidity and accuracy.
* An inverter is used to realize variable speed.
Specification
Specification | Unit | AK-1000B | AK-1250B | AK-1400B | AK-1600B | |||
Max. swing over bed | mm | 1000 | 1250 | 1400 | 1640 | |||
Max.. swing over cross slide | mm | 630 | 880 | 1030 | 1250 | |||
Distance between centers | mm | 1000/1500/2000/3000/4000/5000/6000/8000/10000/12000/- | ||||||
Max. turning length | mm | 730/1300/1800/2800/3800/4800/5800/7800/9800/11800/- | ||||||
Bed width | mm | 755 | 755 | 755 | 755 | |||
Loading capacity | kg | 6000 (opt: 8000) | 6000 (opt: 8000) | 6000 (opt: 8000) | 6000 (opt: 8000) | |||
Spindle nose | mm | A2-15 | A2-15 | A2-15 | A2-15 | |||
Spindle bore | mm | 130 | 130 | 130 | 130 | |||
Spindle taper | - | Metric 140 | Metric 140 | Metric 140 | Metric 140 | |||
Spindle speed (Hydraulic 4steps, stepless) | rpm | 5-320 | 5-320 | 5-320 | 5-320 | |||
Center height | mm | 500 | 625 | 700 | 820 | |||
Chuck size (4-jaw) | mm | 1000 | 1000 | 1000 | 1000 | |||
X/Z-axis min. feed unit | mm | 0.001/0.001 | 0.001/0.001 | 0.001/0.001 | 0.001/0.001 | |||
X/Z-axis rapid feed speed | mm/min | 3000/5000 | 3000/5000 | 3000/5000 | 3000/5000 | |||
Cross travel (X) | mm | 570 | 570 | 690 | 630 | |||
Tool post type | - | V4/V6/V8 | V4/V6/V8 | V4/V6/V8 | V4/V6/V8 | |||
Tool change time | s | 2.6 | 2.6 | 2.6 | 2.6 | |||
Turret repeat positioning accuracy | mm | 0.01 | 0.01 | 0.01 | 0.01 | |||
Tool section size | mm | 40x40 | 40x40 | 40x40 | 40x40 | |||
Tailstock quill diameter | mm | 160 | 160 | 160 | 160 | |||
Tailstock quill travel | mm | 300 | 300 | 300 | 300 | |||
Tailstock quill taper | - | MT6 | MT6 | MT6 | MT6 | |||

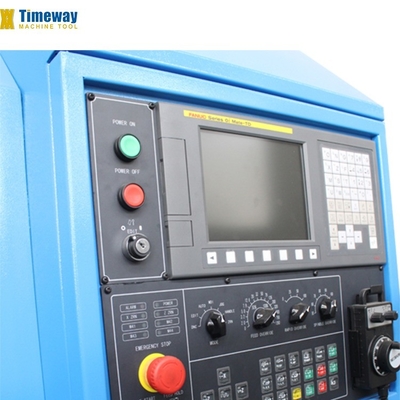

CNC system | - | FANUC/GSK/SIEMENS | FANUC/GSK/SIEMENS | FANUC/GSK/SIEMENS | FANUC/GSK/SIEMENS | |||
Working accuracy | - | IT6-IT7 | IT6-IT7 | IT6-IT7 | IT6-IT7 | |||
Surface roughness | µm | Ra1.6 | Ra1.6 | Ra1.6 | Ra1.6 | |||
