***This type slant bed CNC lathe is semi-closed loop CNC machine, which is suitable to turn various complicated shaft, sleeve and disk-like work pieces, such as turning of internal and external cylindrical, conical and other circumgyration surface as well as various metric, inch, modular and diametric pitch threads;
***They can also be used for oil grooves and keyways broaching, end-facing, grooving and chamfering, etc;
***The unique construction developed using FEA techniques to provide maximum stiffness under the heaviest cutting conditions;
***It is especially suitable for the machining of high precision work-pieces, and also widely used to machining parts in batches in the fields of automobile, motorcycle, engineer industry, aero-craft, home-appliance, bearing, hardware, etc
 |
Metal Turning Speed CNC Lathe with 550mm Z Axis Travel and 12 N.m Cutting Torque
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | timeway |
| Model Number: | CK-50 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $42,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Type: | TURNING CENTER | Max. Length Of Workpiece (mm): | 3000 |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Max. Weight Of Workpiece(kg): | 2000 |
| Width Of Bed (mm): | 570 Mm | No. Of Spindles: | Single |
| Number Of Axes: | 2 | Travel (X Axis)(mm): | 230 Mm |
| Travel (Z Axis)(mm): | 550 Mm | Positioning Accuracy (mm): | ±0.002 |
| Repeatability (X/Y/Z) (mm): | ±0.001 | Dimension(L*W*H): | 5600*1800*1800mm |
| CNC Control System: | FANUC | Tool Post Stations: | 8 |
| Weight (KG): | 6900 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price, High Safety Level, High-accuracy, Energy Saving, Easy To Operate | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Range Of Spindle Speed(r.p.m): | 0 - 4200 R.p.m | Travel (Y Axis)(mm): | 0 Mm |
| Spindle Taper: | A2-6 | Cutting Torque: | 12 N.m |
| Rapid Feed Speed(mm/min): | 0 - 2000 Mm/min | Feed Speed(mm/min): | 0 - 4200 Mm/min |
| Min. Time Of Tool Change(s): | 0.7 | Product Name: | Slant Bed CNC Lathe |
| Machine Type: | Slant Lathe Machine | CNC Or Not: | CNC Lathe Machine |
| Control System: | SIEMENS GSK FANUC (optional) | Model: | CK-50 |
| Color: | Customers' Requirement | Spindle Speed: | 2000RPM |
| Spindle Bore: | 86mm | Max. Swing Over Bed: | 570mm |
| Max. Processing Length: | 3000mm | ||
Product Description
Products Description
CNC Lathe Processing Turning Center Parts CNC Slant Bed Lathe
Features:
Technical Parameter
Specification | Unit | CK-50 |
Max. Swing over bed | mm | 570 |
Max. Swing over cross slide | mm | 320 |
Standard turning diameter | mm | 250 |
Max. Turning diameter | mm | 360 |
Max. Turning length | mm | 450/750/1350/2000/3000 |
Spindle speed | rpm | 2000 |
Spindle nose | - | A2-8 |
Spindle bore | mm | 86 |
Chuck size | mm | 250 |
Cross travel (X) | mm | 250 |
Longitudinal travel (Z) | mm | 600/1000/1500/2150/3150 |
X/Z-axis rapid feed speed | m/min | 20/16 |
Hydraulic tool post type | - | 100-8T |
Tool section size | mm | 25x25/Φ40 |
Tailstock quill diameter | mm | 75/110 |
Tailstock quill travel | mm | 100 |
Tailstock quill taper | - | MT4/MT5 |
Bed structure | - | 45° integral bed |
X-axis repositioning accuracy | mm | 0.006 |
Z-axis repositioning accuracy | mm | 0.008/0.01/0.013/0.017/0.021 |
Roughness | - | Ra1.6μm |
Main motor power | kw | 11/15 |
Power supply | kva | 35 |
Machine dimensions (LxWxH) | mm | 2900/3100/4300/4950/5600x1800x1800 |
Machine weight | kg | 3100/3600/4600/5300/6900 |
Accessories
Standard accessories:
* FANUC CNC system
* Hydraulic chuck
* 8/12-station tool turret
* Hydraulic tool post
* Electronic handwheel
* Lubrication system
* Cooling system
* Work lamp
* Pilot lamp
* Protection guard
* Heat exchanger
* Leveling blocks & bolts
* Tool & tool-box
* Operation manuals
* 8/12-station tool turret
* Hydraulic tool post
* Electronic handwheel
* Lubrication system
* Cooling system
* Work lamp
* Pilot lamp
* Protection guard
* Heat exchanger
* Leveling blocks & bolts
* Tool & tool-box
* Operation manuals
Optional accessories:
* GSK,SIEMENS CNC system
* Air conditioner
* Tool setter
* Chain type chip conveyor
* Tool setter
* Chain type chip conveyor
Detailed Images

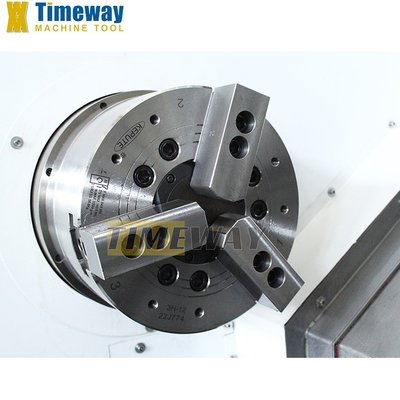

Standard with Hollow hydraulic chuck,
Chinese brand or taiwan brand.

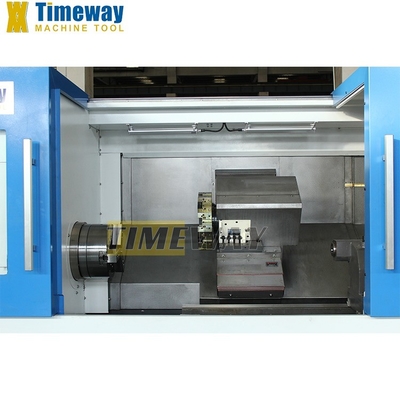

HYDRAULIC TURRET
Standard:8-station hydraulic turret;
selectable live turret Or power turret
BMT45/BMT55/BMT65 according to the model.

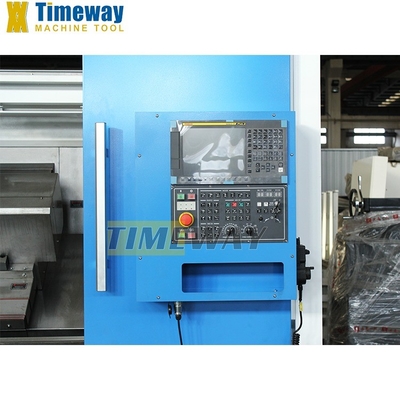

Standard:FANUC CNC system
Optional:GSK,SIEMENS CNC system
Optional:GSK,SIEMENS CNC system
Standard:Hydraulic tailstock
hydraulically programmable tailstock Optional: servo tailstock available
Greatly reduce the operator's labor intensity, achieve safe and efficient production.
