The full-function CNC lathe has a semi-closed-loop control system that increases productivity through high-speed cutting. It is suitable for machining all kinds of complex shapes of shaft, sleeve, disk parts, such as turning inner and outer cylindrical surface, conical surface, circular surface, end face, slotted, chamfering, drilling, reaming, especially for multi-species, a small batch of turning processing. Easy clamping, process adaptability, high processing efficiency, low scrap rate, good consistency of the finished product, and reducing the technical proficiency
requirements of workers, easy programming, simple operation, which makes it is widely selected as the ideal small and medium-sized mechanical processing equipment.
 |

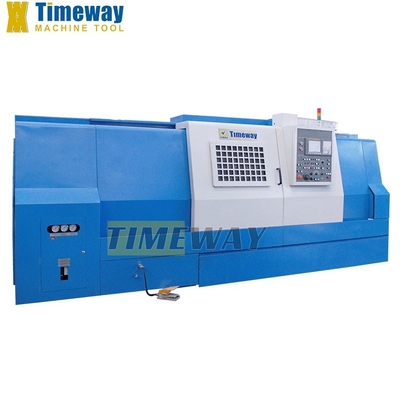

Machinery Repair Shops Slant Lathe Machine with 62mm Spindle Bore and Hydraulic Tailstock
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | timeway |
| Model Number: | AK-15 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $30,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 450 |
|---|---|---|---|
| Structure: | Slant Bed Lathe | Machining Capacity: | Heavy Duty |
| Width Of Bed (mm): | 440 Mm | Spindle Motor Power(kW): | 11 |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 180 Mm | Travel (Z Axis)(mm): | 480 Mm |
| Dimension(L*W*H): | 2270*1470*1470mm | CNC Control System: | Siemens |
| Tool Post Stations: | 8 | Weight (KG): | 4500 |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Product Name: | Slant Bed Lathe Machine |
| Machine Type: | Slant Lathe Machine | CNC Or Not: | CNC Lathe Machine |
| Control System: | SIEMENS GSK FANUC (optional) | Model: | AK-15 |
| Color: | Customers' Requirement | Max.swing Over Bed: | 440mm |
| Spindle Speed: | 50-4500rpm | Spindle Bore: | 62mm |
| After-sales Service Provided: | 1 Year | Condition: | New |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Retail, Construction Works , Energy & Mining | Showroom Location: | Egypt, Brazil, Russia, Australia |
| Core Components: | Bearing, Motor, Pump, Gear, Engine, Gearbox | Max. Spindle Speed (r.p.m): | 4500 R.p.m |
| Spindle Bore(mm): | 62 | Marketing Type: | Hot Product 2021 |
| Port: | China Port | ||
Product Description
Products Description

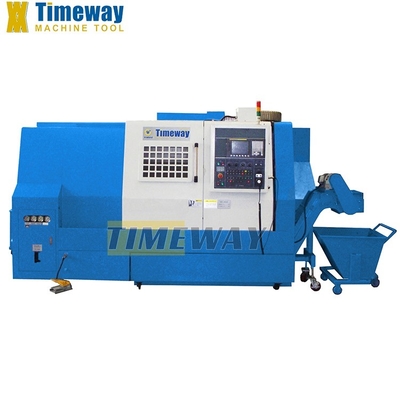

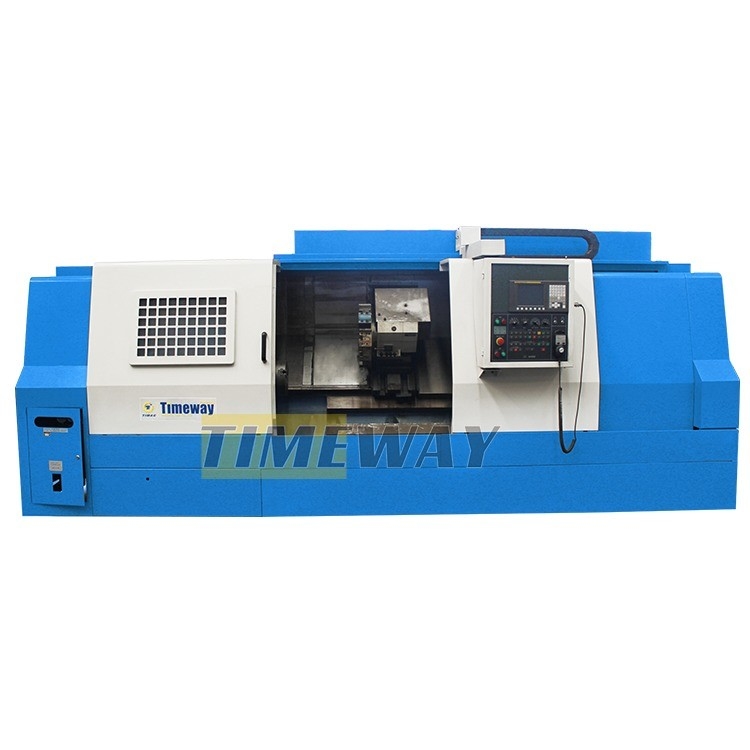

Slant bed CNC lathe
Feature:
Technical Parameter
Specifications | Unit | AK-15 | AK-25 |
Swing over bed | mm | 440 | 520 |
Max. dia. cutting | mm | 300 | 420 |
Max. length of workpiece | mm | 600 | 625/1000/1500 /2000/3000 |
Max. turning length | mm | 450 | 530/905/1405 /1905/2905 |
X-axis travel | mm | 180 | 230 |
Z-axis travel | mm | 480 | 590/965/1465/1965/2965 |
Rapid travel of X | m/min | 20 | 12 |
Rapid travel of Z | m/min | 24 | 15 |
X/Z feed speed | mm/min | 1260 | 1260 |
Spindle speed | rpm | 50-4500 | 35-3500 |
Spindle power | kw | 11/9 | 18.5/15 |
Spindle nose | - | A2-6 | A2-8 |
Spindle bore (Dia.) | mm | 62 | 87 |
Size of chuck | inch | 8 | 10 |
Front bearing dia. | mm | 100 | 130 |
No. of stations | - | 8 | 12 |
Indexing time | s | 0.72 | 0.3 |
Size of turret | mm | 25x25 | 25x25 |
Dia. of bar shank | mm | 40 | 40 |
Max. travel | mm | 460 | 490/865/1365/1865/2865 |
Quill Dia. | mm | 80 | 85 |
Quill taper hole | - | MT4 | MT5 |
Quill travel | mm | 130 | 80 |
CNC System | - | FANUC | FANUC |
Main power | kw | 25 | 30 |
Weight | t | 4.5 | 5/5.5/6.5/7.5/8.5 |
Length | mm | 2270 | 3000/3380/4550/4960/6160 |
Width | mm | 1470 | 1545 |
Height | mm | 1650 | 1950 |
Accuracy/roughness | µm | IT6/Ra0.8 | IT6/Ra0.8 |
Accessories
Standard accessories: Optional accessories:
FANUC CNC system Hydraulic chuck Hydraulic turret Hydraulic tailstock Electronic handwheel Lubrication system Cooling system Work lamp Pilot lamp Full protection guard Heat exchanger Chip conveyor Leveling blocks & bolts Tools & tool-box Operation manuals | SIEMENS CNC system Hydraulic hollow chuck Air conditioner Tool setter Chip conveyor |
