Medium Duty CNC Lathe CK-800U Timeway Precision Metal Turning with 6-Station Tool Post
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timac |
| Model Number: | CK-800U |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $30,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 3000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Medium Duty |
| Width Of Bed (mm): | 0 Mm | Spindle Motor Power(kW): | 15 |
| No. Of Spindles: | Twin | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 420 Mm | Travel (Z Axis)(mm): | 3000 Mm |
| Dimension(L*W*H): | 5785*2040*1855 | Tool Post Stations: | 12, 8, 10, 6, 4 |
| Weight (KG): | 7200 | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Max.swing Over Bed: | 800mm | Max.swing Over Carriage: | 520mm |
| Width Of Bed: | 600mm | Max.length Of Workpiece: | 1500/3000mm |
| Max.turning Length: | 1500/3000mm | Max.weight Between Center: | A2-11 |
| Spindle Nose: | 104mm | Spindle Bore: | Metric |
| Range Of Spindle Speed: | 11-1250rpm | Rapid Feed For Z-axis: | 8m/min |
| Condition: | New | Spindle Bore(mm): | 104 |
| Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, R | Core Components: | Bearing, Motor, PLC, Engine |
| Max. Spindle Speed (r.p.m): | 1250 R.p.m | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Mould, Mental Process |
| Marketing Type: | Hot Product | Port: | China Port |
Product Description
Product Description

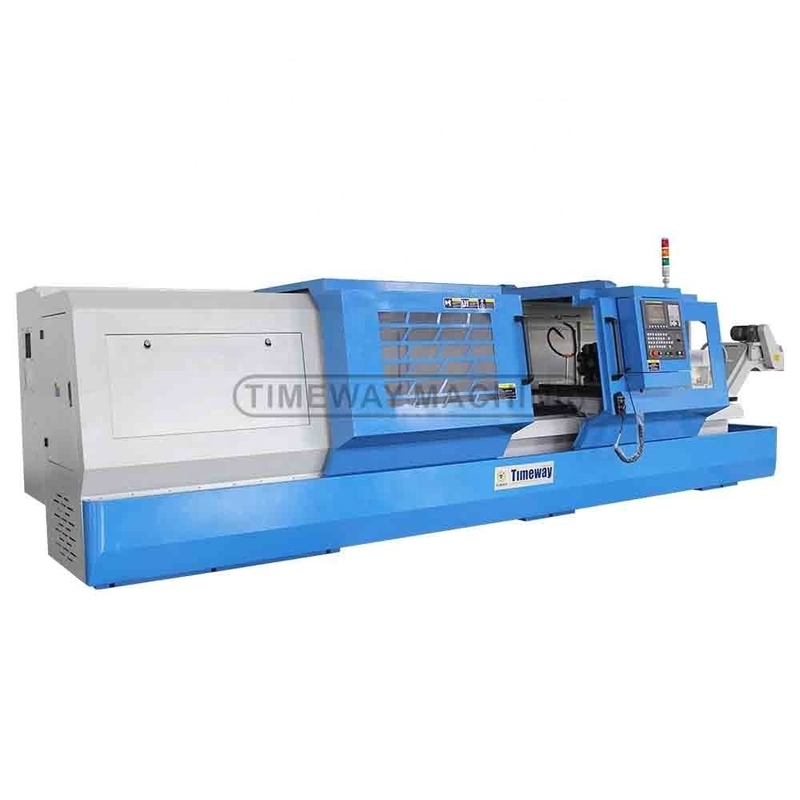

Flat bed cnc lathe
Specification
Specifications | Units | CK-800U |
Max.swing over bed | mm | Φ800 |
Max.swing over carriage | mm | Φ520 |
Width of bed | mm | 600 |
Max.length of workpiece | mm | 1500/3000 |
Max.turning length | mm | 1500/3000 |
Max.weight between center | - | A2-11 |
Spindle nose | mm | Φ104 |
Spindle bore | mm | Metric |
Range of spindle speed | rpm | 11-1250(3),automatic |
Rapid feed for Z-axis | m/min | 8 |
Rapid feed for X-axis | m/min | 4 |
Max.travel of Z-axis | mm | 1500/3000 |
Max.travel of X-axis | mm | 420 |
Tool post type | - | V4 |
Tool cross section | mm | 32x32 |
External diameter of tailstock sleeve | mm | Φ100 |
Taper of bore of tailstock sleeve | - | MT5 |
Max.traverse of tailstock sleeve | mm | 250 |
Power of main motor | kw | 15 |
Power of cooling pump | kw | 0.12 |
Machine weight | kg | 5800/7200 |
Accessories
Standard accessories:

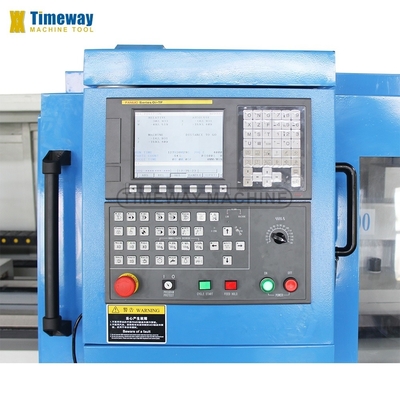

FANUC CNC system
3-jaw chuck
4-station electronic tool post
Electronic handwheel
Lubrication system
Cooling system
Work lamp
Protection guard
Axial fan
Leveling blocks & bolts
Tools & tool-box
Operation manuals
3-jaw chuck
4-station electronic tool post
Electronic handwheel
Lubrication system
Cooling system
Work lamp
Protection guard
Axial fan
Leveling blocks & bolts
Tools & tool-box
Operation manuals
Optional accessories:
GSK CNC system,SIEMENS CNC system
4-jaw chuck

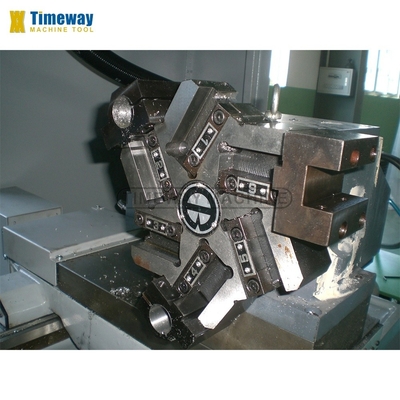

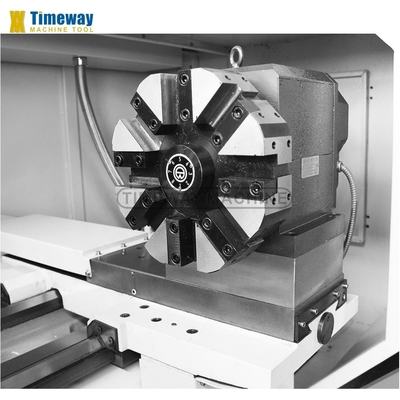

Horizontal 6-station tool post
Horizontal 8-station tool post
Pilot lamp
Air conditioner
Heat exchanger
Hydraulic chuck
Special fixture
Tool setter
Chain type chip conveyor
4-jaw chuck
Horizontal 6-station tool post
Horizontal 8-station tool post
Pilot lamp
Air conditioner
Heat exchanger
Hydraulic chuck
Special fixture
Tool setter
Chain type chip conveyor

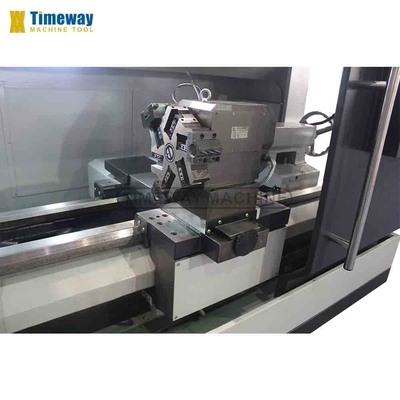

Detail Images
Our Team
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Certifications
Since our company established, we have obtained many certificates. The above picture is for your reference. We will continue to provide excellent machine tools for domestic and foreign users.
Why Choose Us
This is a picture of clients visiting our company when we hold exhibitions around the world.
This is the picture of the packaging in our factory！You can see our package is standardized andcentralized , then they will be shipped to your designated place.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
