Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
 |
Max. Length of Workpiece mm 940 AK-940B for Easy and Precise Large-Scale Production
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
| Model Number: | AK-940B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $18,000.00/sets 1-2 sets |

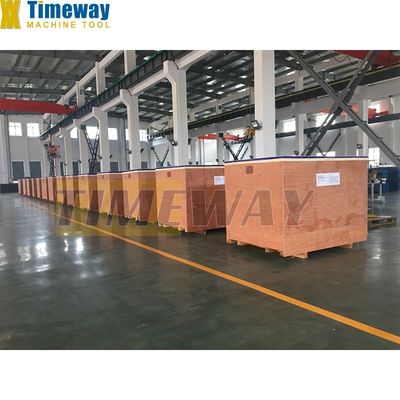

| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 940 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Heavy Duty |
| Width Of Bed (mm): | 550 Mm | Spindle Motor Power(kW): | 11 |
| No. Of Spindles: | Single | Number Of Axes: | 3 |
| Travel (X Axis)(mm): | 475 Mm | Travel (Z Axis)(mm): | 650 Mm |
| Tool Post Stations: | 12, 8, 10, 6, 4 | Weight (KG): | 5000 |
| Warranty: | 1 Year | Key Selling Points: | Easy To Operate |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | CNC |
| Machine Type: | Flat Bed CNC Lathe | Name: | Metal Cnc Lathe |
| Product Name: | CNC Lathe Mechine | Keyword: | Automatic CNC Lathe Machine |
| Function: | Machining Metal | After-sales Service Provided: | Online Support |
| Product Type: | Economical CNC Lathe | Precision: | High Precision Machine |
| Automatic Grade: | Automatic CNC Turning Machine | Condition: | New |
| Spindle Bore(mm): | 100 | Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, R |
| Core Components: | Bearing, Motor, PLC, Engine | Max. Spindle Speed (r.p.m): | 800 R.p.m |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Mould, Mental Process | Marketing Type: | Hot Product |
| Port: | China Port | ||
Product Description
Products Description

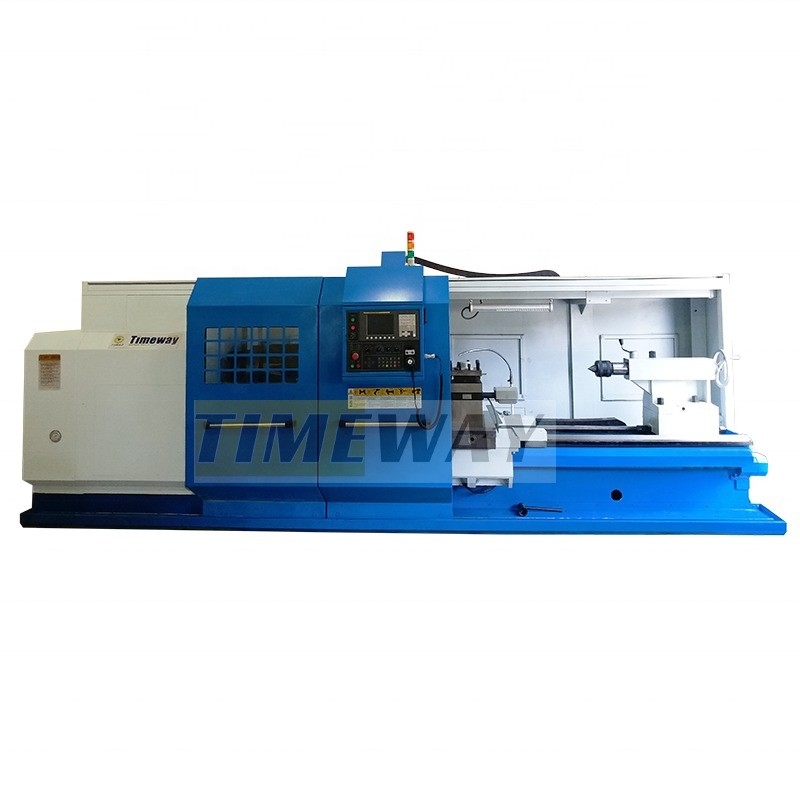

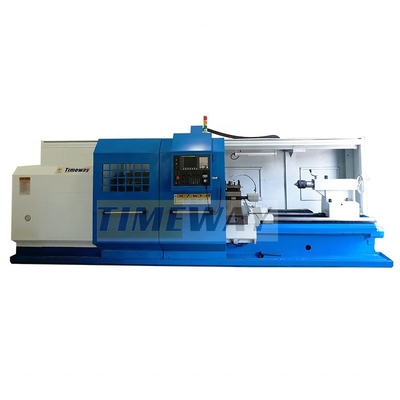

AK - 940B
CNC Heavy Duty Horizontal Lathe:
Specification | Unit | AK-940B |
Max. swing over bed | mm | 940 |
Max.. swing over cross slide | mm | 650 |
Distance between centers | mm | 750/1000/1500/2000/3000/4000/5000/6000/8000 |
Max. turning length | mm | 600/850/1350/1850/2850/3850/4850/5850/7850 |
Bed width | mm | 550 |
Loading capacity | kg | 2000 |
Spindle nose | mm | C11 |
Spindle bore | mm | 100 |
Spindle taper | - | Metric 120 |
Spindle speed (Manual steps) | rpm | 6-800 (12) |
Spindle speed (Manual 4steps stepless) | rpm | 6-800 |
Spindle speed (Hydraulic 4steps, stepless) | rpm | 6-800 |
Center height | mm | 470 |
Chuck size | mm | 325 |
X/Z-axis min. feed unit | mm | 0.001/0.001 |
X/Z-axis rapid feed speed | mm/min | 3000/6000 |
Cross travel (X) | mm | 475 |
Tool post type | - | V4 (V6/H6/H10 optional) |
Tool change time | s | 2.4 |
Turret repeat positioning accuracy | mm | 0.008 |
Tool section size | mm | 32x32 |
Tailstock quill diameter | mm | 100 |
Tailstock quill travel | mm | 250 |
Tailstock quill taper | - | MT5 |
Working accuracy | - | IT6-IT7 |
Surface roughness | µm | Ra1.6 |
Main motor power | kw | 11 |
Machine weight | kg | 3500/3700/4000/4500/5000/6100/7100/8000/10200 |
Machine length | mm | 3200/3445/3895/4390/5390/6580/7580/8580/10580 |
Machine width | mm | 1800 |
Machine height | mm | 1930 |

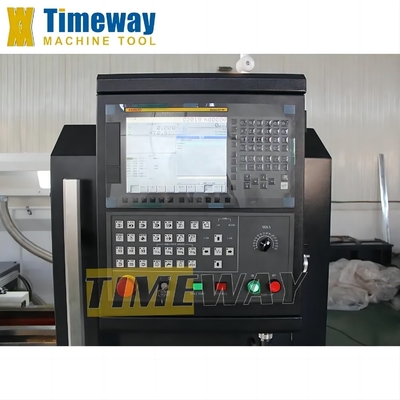

CNC system | - | FANUC/GSK/SIEMENS |
Positive Comments From Customers
Company Introduction

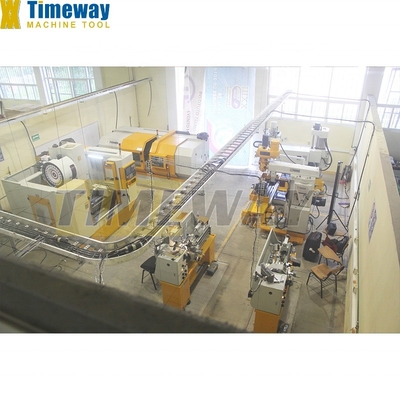

Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
