Roll Turning CNC Lathe with Siemens Control System and 500mm Max. Roll Diameter
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timac |
| Model Number: | RPK-500A/RPK-500F/RPK-500D/RPK-500Z |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $150,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 2500 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Heavy Duty |
| Width Of Bed (mm): | 0 Mm | Spindle Motor Power(kW): | 25 |
| No. Of Spindles: | Twin | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 1000 Mm | Travel (Z Axis)(mm): | 200 Mm |
| Dimension(L*W*H): | 4200X1500X1700 | Tool Post Stations: | Enquiry Us |
| Weight (KG): | 6800 | Warranty: | 1 Year |
| Key Selling Points: | Long Service Life | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Max. Roll Diameter: | 500mm | Max. Roll Length: | 100~2500mm |
| Notching Rebar Diameter Range: | 6~50mm | Notching Per Roll: | As Many As Required |
| Notching Angle: | Free Choice | Omitting Nbs: | Free Choice |
| Min. Feed Unit: | 0.001mm.0.001° | Headstock Chuck: | 400mm |
| Motor Of Swivel Engraving Head: | 1.1kw | Spindle Taper Of Headstock: | MT5 |
| Condition: | New | Spindle Bore(mm): | 100 |
| Applicable Industries: | Manufacturing Plant, Food & Beverage Factory, Construction Works | Showroom Location: | Egypt, Viet Nam, Russia |
| Marketing Type: | Hot Product 2019 | Max. Spindle Speed (r.p.m): | 2850 R.p.m |
| Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, Enquiry Us | Port: | China Port |
Product Description
Product Description

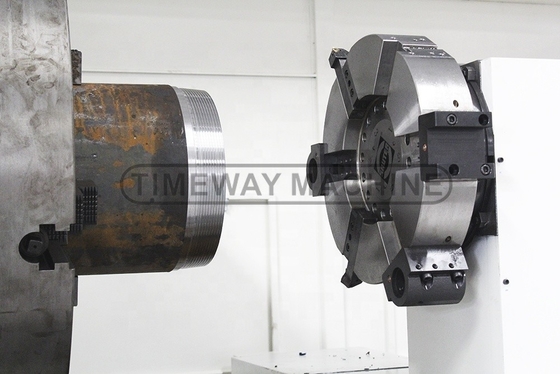

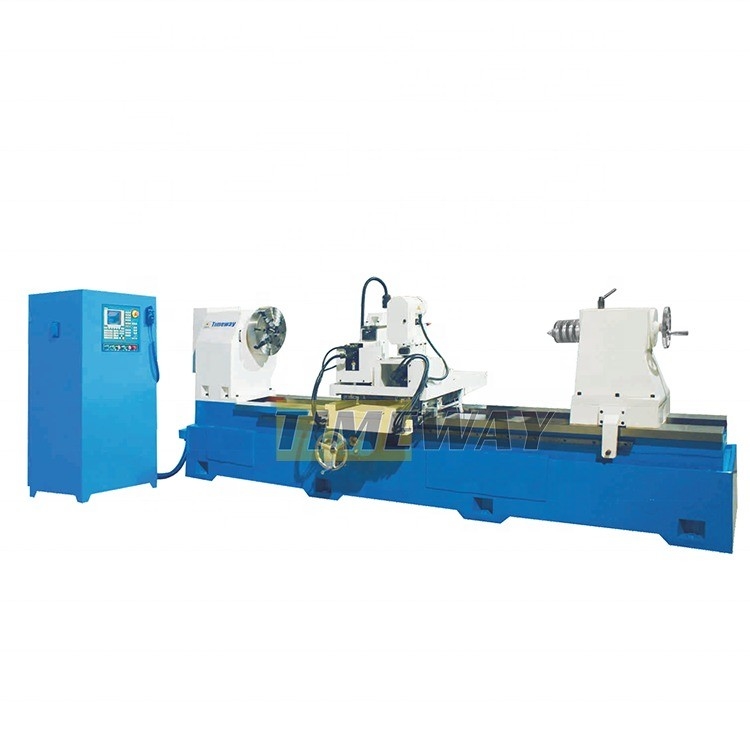

cnc roll turning lathe
Specification
SPECIFICATION | UNIT | RPK-500A | RPK-500F | RPK-500D | RPK-500Z | |||
Max. roll diameter | mm | 500 | 500 | 500 | 500 | |||
Max. roll length | mm | 100~2500 | 100~2500 | 100~2500 | 100~2500 | |||
Notching rebar diameter range | mm | 6~50 | 6~50 | 6~50 | 6~50 | |||
Notching per roll | as many as required | |||||||
Notching angle | free choice | |||||||
Omitting nbs | free choice | |||||||
Min. feed unit | 0.001mm.0.001° | |||||||
Max.spindle speed of flyer cutter notching head | rpm | 550 | 550 | 500 | ||||
Max. spindle speed of swivel engraving head | rpm | 2850 | 2850 | 2800 | ||||
Spindle taper of headstock | MT5 | MT5 | MT5 | MT5 | ||||
Headstock chuck | mm | 400,four jaw | ||||||
Motor of swivel engraving head | kw | 1.1 | 1.1 | 1.1 | 1.1 | |||
Workpiece rotate feed speed | °/min | 50~600 | 50~600 | 50~600 | 50~600 | |||
Workpiece rapid rotate feed speed | °/min | 4000 | 4000 | 4000 | 4000 | |||
Swivel speed of swivel engraving head | /min | 40~600 | 40~600 | 40~600 | ||||
Coolant pump motor | w | 120 | 120 | 120 | 120 | |||
CNC controller | SINUMERIK 808D | |||||||
X axis (Fly cutter axis) | kw | 4.4 | 4.4 | 4.4 | ||||
Y axis (Roll turning axis) | kw | 2 | 2 | 2 | 2 | |||
Z axis (Swivel axis) | kw | 2 | 1.3 | 1.3 | ||||
C axis (Cross feeding axis) | kw | 2 | 2 | 2 | 2 | |||
A axis (Longitudinal axis) | kw | 1.3 | ||||||
X axis (Fly cutter axis) | N.m | 28.4 | 28.4 | 28.4 | ||||
Y axis (Roll turning axis) | N.m | 25 | 11.5 | 11.5 | 11.5 | |||
Z axis (Swivel axis) | N.m | 25 | 8.34 | 8.34 | ||||
C axis (Cross feeding axis) | N.m | 25 | 11.5 | 11.5 | 11.5 | |||
A axis (Longitudinal axis) | N.m | 8.34 | ||||||
Overall size (LxWx H) | mm | 4200x1500x1700 | ||||||
Gross weight | kg | 5500 | 6000 | 6500 | 6800 | |||
Packing & Delivery
This is the picture of the packaging in our factory！You can see our package is standardized and centralized , then they will be shipped to your designated place.
Positive Comments From Customers
This picture is the customer's favorable feedback to us. A picture can't mean anything, but we insist on the quality of the machine, we believe that repeat customers will be more and more.
Company Introduction
Since our company established, we have obtained many certificates. The above picture is for your reference. We will continue to provide excellent machine tools for domestic and foreign users.
Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
