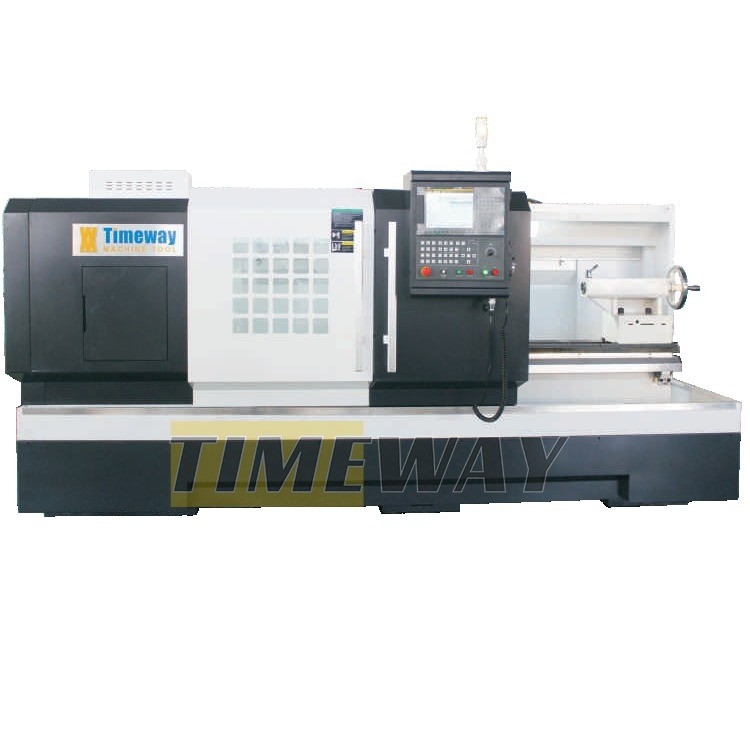

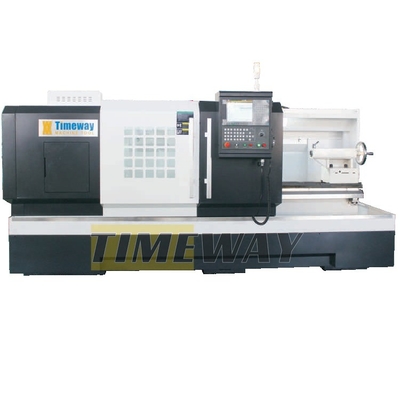

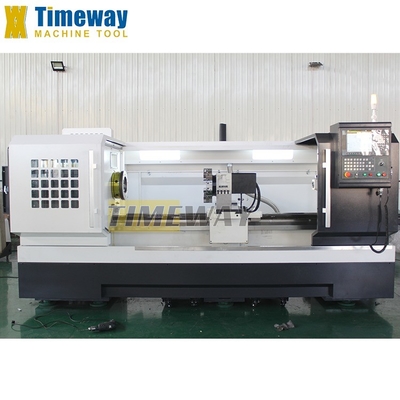

11kW Spindle Motor Power Accuracy Multifunctional Flat Bed Type CNC Lathe Machine
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | CK-600U |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $28,490.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 1500 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Medium Duty |
| Width Of Bed (mm): | 400 Mm | Spindle Motor Power(kW): | 11 |
| No. Of Spindles: | Single | Number Of Axes: | 3 |
| Travel (X Axis)(mm): | 420 Mm | Travel (Z Axis)(mm): | 1500 Mm |
| Positioning Accuracy (mm): | 0.003 | Repeatability (X/Y/Z) (mm): | Enquiry Us |
| Dimension(L*W*H): | 4307*2040*1855 | Voltage: | 220V/380V,50HZ |
| CNC Control System: | Siemens | Tool Post Stations: | 6, 4 |
| Weight (KG): | 5800 | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Machine Type: | Flat Bed CNC Lathe | Product Name: | CNC Lathe Mechine |
| Keyword: | Automatic CNC Lathe Machine | Name: | Metal Cnc Lathe Machine |
| Function: | Machining Metal | Application: | Metal Product |
| Precision: | High Precision Machine | Color: | Customer Optional |
| Product Type: | Flat Bed Cnc Lathe | Model: | CK-600U |
| Condition: | New | Toolpost Brand: | Enquiry Us |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Retail | Showroom Location: | Egypt, Brazil, Russia |
| Marketing Type: | Hot Product 2019 | Core Components: | Bearing, Motor |
| Year: | Least Day | Max. Spindle Speed (r.p.m): | 4500 R.p.m |
| Spindle Bore(mm): | 104mm | Port: | China Port |
Product Description
Product Description
Standard accessories:
GSK 980TDI, 3-jaw chuck,
4-station electronic tool post,
Electronic handwheel,
Lubrication system,

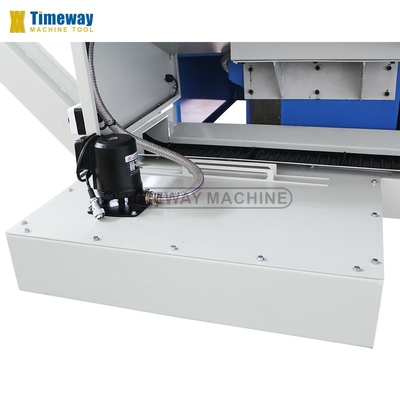

Cooling system,
Work lamp,
Protection guard,
Protection guard,
Axial fan,
Leveling blocks & bolts,
Tools & tool-box,
Operation manuals.
Optional accessories:
FANUC CNC system,
SIEMENS CNC system,
4-jaw chuck,

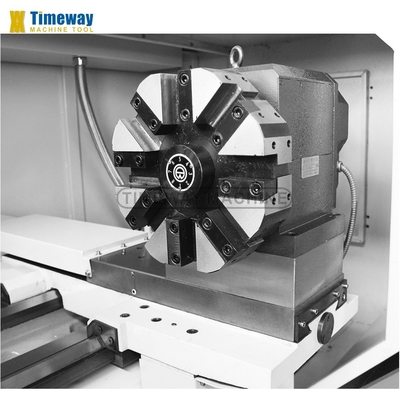

Horizontal 6-station tool post,
Horizontal 8-station tool post,
Pilot lamp,
Air conditioner,
Heat exchanger,
Hydraulic chuck,
Special fixture,
Tool setter,
Chain type chip conveyor.
Specification
Specification | Unit | CK-600U | CK-800U | CK6180E |
Max. swing over bed | mm | 630 | 800 | 800 |
Max.. swing over cross slide | mm | 350 | 520 | 480 |
Distance between centers | mm | 1500/3000 | 1500/3000 | 1620/2210/3120 |
Max. turning length | mm | 1500/3000 | 1500/3000 | 1620/2210/3120 |
Bed width | mm | 600 | 600 | 600 |
Spindle nose | mm | A2-11 | A2-11 | C11 |
Spindle bore | mm | 104 | 104 | 105 |
Spindle taper | - | Metric | Metric | Metric |
Spindle speed (steps) | rpm | 11-1250 (3), automatic | 11-1250 (3), automatic | 45-950 (3), Manual |
Center height | mm | 315 | 400 | 400 |
Chuck size | mm | 325 | 325 | 325 |
Cross travel (X) | mm | 420 | 420 | 470 |
Longitudinal travel (Z) | mm | 1500/3000 | 1500/3000 | 1620/2210/3120 |
X/Z-axis rapid feed speed | mm/min | 4/8 | 4/8 | 6/8 |
X/Z-axis min. feed unit | mm | 0.001 | 0.001 | 0.001 |
X-axis feed motor torque | NM | 10 | 10 | 15 |
Z-axis feed motor torque | NM | 15/30 | 15/30 | 18/23/30 |
Tool post type | - | V4/H6 | V4/H6 | V4 |
Tool section size | mm | 32x32 | 32x32 | 32x32 |
Tailstock quill diameter | mm | 100 | 100 | 100 |
Tailstock quill travel | mm | 250 | 250 | 250 |
Tailstock quill taper | - | MT5 | MT5 | MT5 |
Main motor power | kw | 11 | 15 | 11 |
Coolant pump power | kw | 0.12 | 0.12 | 0.12 |
Working accuracy | mm | IT6 | IT6 | IT6 |
X/Z-axis positioning accuracy | mm | 0.03/0.04 | 0.03/0.04 | 0.03/0.04 |
X/Z-axis repositioning accuracy | mm | 0.012/0.016 | 0.012/0.016 | 0.012/0.016 |
Roughness | um | Ra1.6 | Ra1.6 | Ra1.6 |
Machine dimensions (LxWxH) | mm | 4307/5785ⅹ2040ⅹ1855 | 4307/5785ⅹ2040ⅹ1855 | 4500/5100/6200ⅹ2040ⅹ1855 |
Machine weight | kg | 5800/7200 | 5800/7200 | 5400/5750/7080 |
