Type Flat Bed CNC Lathe tornos para metal cnc with 1000/1600mm Swing Over Bed in 2023
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | AK-1600B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $32,450.00/sets 1-2 sets |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 1000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Heavy Duty |
| Max. Weight Of Workpiece(kg): | 6000 | Width Of Bed (mm): | 400 Mm |
| Spindle Motor Power(kW): | 30 | No. Of Spindles: | Single |
| Number Of Axes: | 3 | Travel (X Axis)(mm): | 630 Mm |
| Travel (Z Axis)(mm): | 450 Mm | Positioning Accuracy (mm): | ±0.001 |
| Repeatability (X/Y/Z) (mm): | ±0.001 | Dimension(L*W*H): | 4800*2750*2630 |
| Voltage: | Optional | CNC Control System: | GSK |
| Tool Post Stations: | 8, 10, 6, 4 | Weight (KG): | 9600 |
| Warranty: | 1 Year | Key Selling Points: | Multifunctional |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | CNC |
| Machine Type: | Flat Bed CNC Lathe | Keyword: | Cnc Metal Lathe Machine |
| Product Type: | Cnc Horizontal Turning Lathe Machine | Precision: | High Precision Machine |
| Control System: | SIEMENS GSK FANUC (optional) | Model: | AK-1600B |
| Color: | Customer Optional | Processing Type: | Flat Lathe |
| Function: | Machining Metal | Condition: | New |
| Spindle Bore(mm): | 130 | Toolpost Brand: | Hongda |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Construction Works , Energy & Mining | Showroom Location: | Egypt, Turkey, Morocco |
| Marketing Type: | Hot Product 2019 | Core Components: | PLC, Gearbox, Motor |
| Max. Turned Length (mm): | 1000 | Year: | 2023 |
| Max. Spindle Speed (r.p.m): | 320 R.p.m | ||
Product Description
Product Description

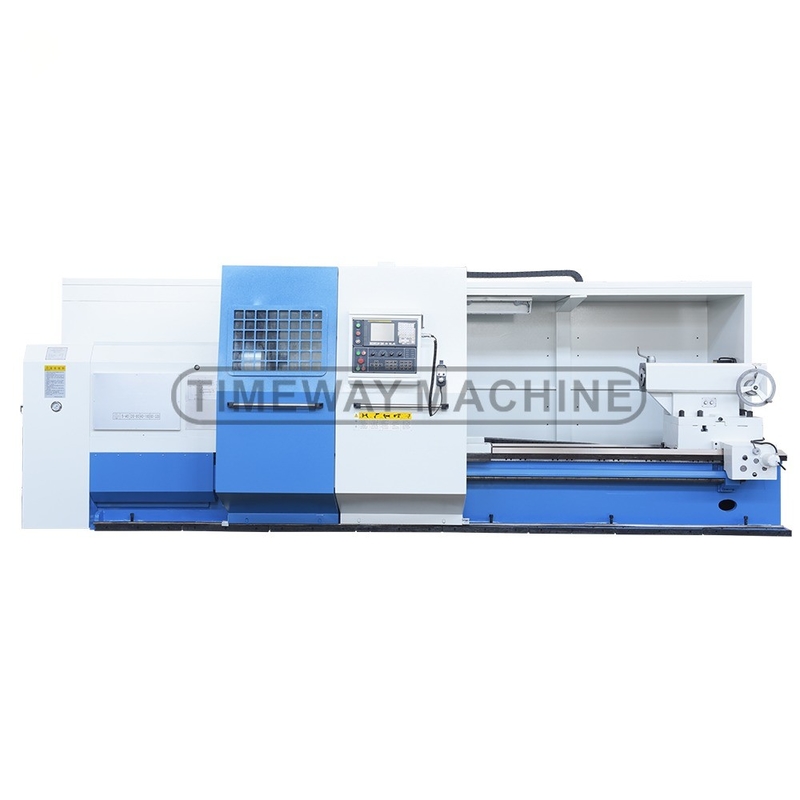

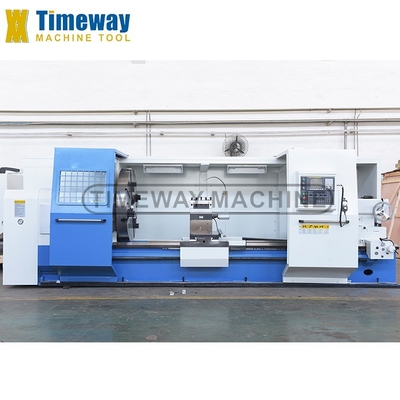

Heavy Duty CNC Horizontal Lathe
This series lathe bed is the one-piece type box-shaped structure, adopts high standard cast iron (HT300) one molding casting, after thesecond aging treatment, it has the feature of stable performance; guide way width (755mm), good rigidity, anti-vibration ability; spindle bore is 130mm, strong rigidity of headstock, adapting to heavy cutting.

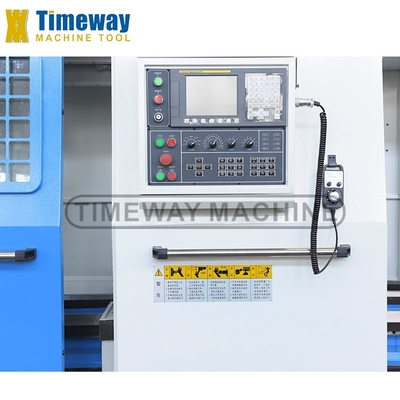

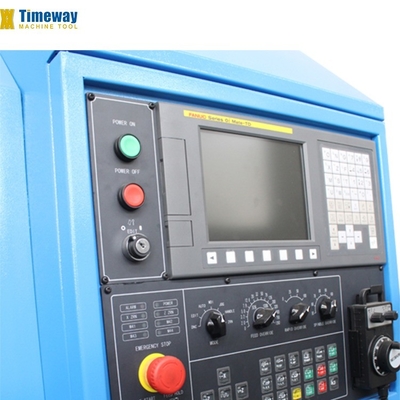

CNC system uses the most well-known international FANUC or SIEMENS control system (also available matching other systems according to users' requirements). Programs and parameters can be transferred through USB interface. X-axis and Z-axis can realize linkage, so it has straight line, arc and thread interpolation and a variety of other fixed cycle and other functions, the minimum resolution is 0.001mm.
Specification
Specification | Unit | AK-1000B | AK-1250B | AK-1400B | AK-1600B | |||
Max. swing over bed | mm | 1000 | 1250 | 1400 | 1640 | |||
Max.. swing over cross slide | mm | 630 | 880 | 1030 | 1250 | |||
Distance between centers | mm | 1000/1500/2000/3000/4000/5000/6000/8000/10000/12000/- | ||||||
Max. turning length | mm | 730/1300/1800/2800/3800/4800/5800/7800/9800/11800/- | ||||||
Bed width | mm | 755 | 755 | 755 | 755 | |||
Loading capacity | kg | 6000 (opt: 8000) | 6000 (opt: 8000) | 6000 (opt: 8000) | 6000 (opt: 8000) | |||
Spindle nose | mm | A2-15 | A2-15 | A2-15 | A2-15 | |||
Spindle bore | mm | 130 | 130 | 130 | 130 | |||
Spindle taper | - | Metric 140 | Metric 140 | Metric 140 | Metric 140 | |||
Spindle speed (Hydraulic 4steps, stepless) | rpm | 5-320 | 5-320 | 5-320 | 5-320 | |||
Center height | mm | 500 | 625 | 700 | 820 | |||
Chuck size (4-jaw) | mm | 1000 | 1000 | 1000 | 1000 | |||
X/Z-axis min. feed unit | mm | 0.001/0.001 | 0.001/0.001 | 0.001/0.001 | 0.001/0.001 | |||
X/Z-axis rapid feed speed | mm/min | 3000/5000 | 3000/5000 | 3000/5000 | 3000/5000 | |||
Cross travel (X) | mm | 570 | 570 | 690 | 630 | |||
Tool post type | - | V4/V6/V8 | V4/V6/V8 | V4/V6/V8 | V4/V6/V8 | |||
Tool change time | s | 2.6 | 2.6 | 2.6 | 2.6 | |||
Turret repeat positioning accuracy | mm | 0.01 | 0.01 | 0.01 | 0.01 | |||
Tool section size | mm | 40x40 | 40x40 | 40x40 | 40x40 | |||
Tailstock quill diameter | mm | 160 | 160 | 160 | 160 | |||
Tailstock quill travel | mm | 300 | 300 | 300 | 300 | |||
Tailstock quill taper | - | MT6 | MT6 | MT6 | MT6 | |||
CNC system | - | FANUC/GSK/SIEMENS | FANUC/GSK/SIEMENS | FANUC/GSK/SIEMENS | FANUC/GSK/SIEMENS | |||
Working accuracy | - | IT6-IT7 | IT6-IT7 | IT6-IT7 | IT6-IT7 | |||
Surface roughness | µm | Ra1.6 | Ra1.6 | Ra1.6 | Ra1.6 | |||
Main motor power | kw | 30 | 30 | 30 | 30 | |||
Machine weight | kg | 9800/10200/10600/11800/13000/14800/16600/20600/24600/28600/- | ||||||
Machine length | mm | 4300/4800/5300/6300/7300/8300/9300/11300/13300/15300/- | ||||||
Machine width | mm | 2530 | 2530 | 2780 | 2780 | |||
Machine height | mm | 2150 | 2150 | 2600 | 2600 | |||
