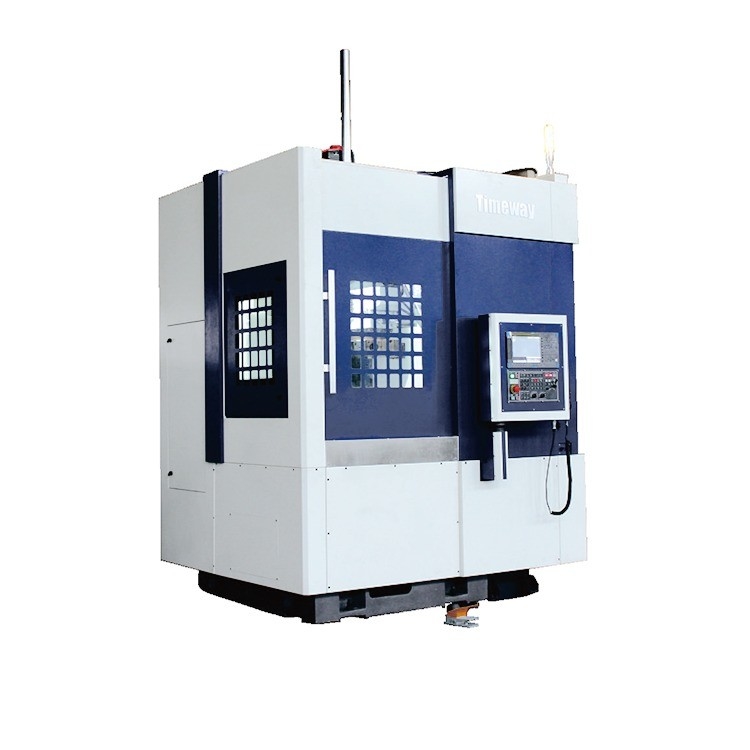

Light Duty Machining Capacity CNC Vertical Lathe Machine High Speed Round Table Design
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | VLK2000E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $7,865.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | VERTICAL | Max. Length Of Workpiece (mm): | 1250 |
|---|---|---|---|
| Machining Capacity: | Light Duty | Width Of Bed (mm): | 200 Mm |
| Spindle Motor Power(kW): | 15 | No. Of Spindles: | Single |
| Number Of Axes: | 8 | Travel (X Axis)(mm): | 500 Mm |
| Travel (Z Axis)(mm): | 500 Mm | Dimension(L*W*H): | 295*166*255 |
| Tool Post Stations: | 8 | Weight (KG): | 18500 |
| Warranty: | 1 Year | Key Selling Points: | Automatic |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Machine Type: | Vertical Lathe |
| Product Name: | CNC Lathe Mechine | Name: | Metal Cnc Lathe |
| Keyword: | Cnc Metal Lathe Machine | Function: | Machining Metal |
| Product Type: | CncTurning Lathe Machine | Precision: | High Precision Machine |
| Application: | Metal Product | Control System: | SIEMENS GSK FANUC (optional) |
| Key Word: | Machine Lathe | Condition: | New |
| Spindle Bore(mm): | 190 | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant |
| Showroom Location: | None | Marketing Type: | Hot Product 2019 |
| Core Components: | Motor, Pump | Year: | 2023 |
| Max. Spindle Speed (r.p.m): | 125 R.p.m | Port: | China Port |
Product Description
Product Description
Specification
Specifications | Unit | VLK800E | VLK1250E | VLK1600E | VLK2000E |
Capacity | |||||
Max. swing diameter | mm | 950 | 1250 | 1600 | 2000 |
Max. cutting diameter | mm | 800 | 1250 | 1600 | 2000 |
Max. height of workpiece | mm | 800 | 1000 | 1000 | 1250 |
Max. weight of workpiece | kg | 2000 | 5000 | 8000 | 12000 |
Worktable | |||||
Main motor power | kw | 22 | 22 | 30 | 37 |
Worktable diameter | mm | 800 | 1010 | 1400 | 1800 |
Max. torque of worktable | KN.m | 10 | 17.5 | 25 | 32 |
Worktable speed range (stepless) | rpm | 2-320 | 1.25-200 | 1-160 | 4-125 |
Tool | |||||
Number of tool station | pcs. | 4 | 4 | 4 | 4 |
Tool shank section of external turning tool | mm | 32x40 | 32x40 | 32x40 | 32x40 |
Drive type | - | Electric | Electric | Electric | Electric |
X/Z-axis | |||||
X-axis ball screw size (dia. x screw pitch) | mm | 50x10 | 50x10 | 50x10 | 50x10 |
Z-axis ball screw size (dia. x screw pitch) | mm | 50x10 | 50x10 | 50x10 | 50x10 |
X-axis travel | mm | -20~550 | -20~800 | -20~1030 | -20~1150 |
Z-axis travel | mm | 650 | 650 | 800 | 800 |
Feed range(X/Z) | mm | 0.1-500 | 0.1-500 | 0.1-500 | 0.1-500 |
Rapid feed speed | mm/min | 2000 | 2000 | 2000 | 2000 |
Others | |||||

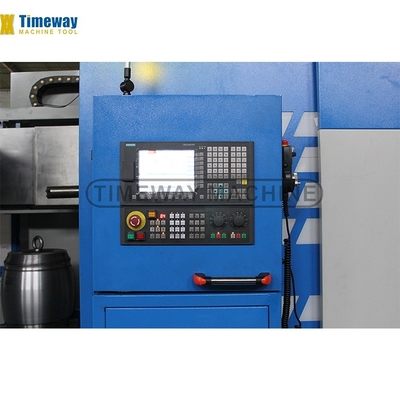

CNC system | - | SIEMENS | SIEMENS | SIEMENS | SIEMENS |
Servo motor torque(X/Z) | N.m | 10 | 10 | 10 | 10 |
Power capacity | Kva | 30 | 37 | 45 | 52 |
Machine net weight | kg | 8500 | 11000 | 14500 | 18500 |
Machine dimension (LxWxH) | cm | 430x238x429 | 478x257x440 | 563x301x466 | 580x368x494 |
