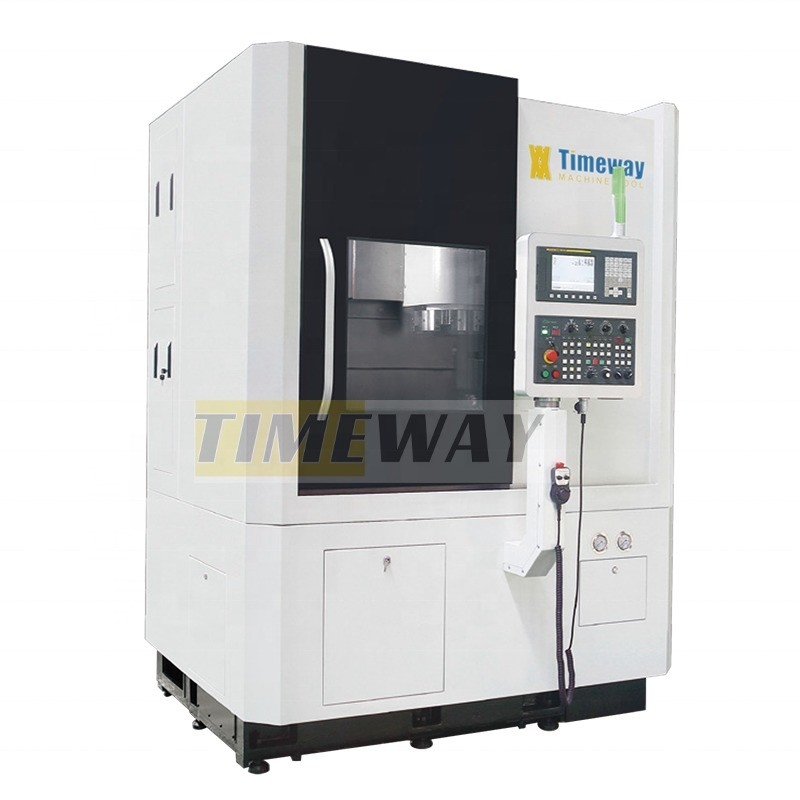

Precision Manufacturing and Materials Ensure of VTC 500 CNC Lathe with 600 mm Travel
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
| Model Number: | VTC500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $51,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | VERTICAL | Max. Length Of Workpiece (mm): | 500 |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Width Of Bed (mm): | 400 Mm |
| Spindle Motor Power(kW): | 22 | No. Of Spindles: | Single |
| Number Of Axes: | 3 | Travel (X Axis)(mm): | 400 Mm |
| Travel (Z Axis)(mm): | 600 Mm | Tool Post Stations: | 12, 8, 10, 6, 4 |
| Weight (KG): | 5000 | Warranty: | 1 Year, One Year |
| Key Selling Points: | Automatic | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| CNC Or Not: | CNC | Machine Type: | Flat Bed CNC Lathe |
| Product Name: | CNC Lathe Mechine | Name: | Metal Cnc Lathe |
| Keyword: | Automatic CNC Lathe Machine | Function: | Machining Metal |
| Product Type: | Economical CNC Lathe | Precision: | High Precision Machine |
| Automatic Grade: | Automatic CNC Turning Machine | Condition: | New |
| Spindle Bore(mm): | 80 | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant |
| Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Nigeria | Core Components: | Motor, Pump |
| Max. Spindle Speed (r.p.m): | 1000 R.p.m | Marketing Type: | Hot Product |
| Port: | China Port | ||
Product Description
Products Description
VTC500 VTC630
VTC CNC Lathe:
Specifications | Unit | VTC500 | VTC630 |
Max. turning diameter | mm | 500 | 630 |
Max. swing diameter | mm | 630 | 700 |
Chuck size | mm | 400 | 400-600 |
Spindle speed | rpm | 50-2000 | 10-1000 |
Tool post cross travel (X) | mm | 400 | 630 |
Tool post vertical travel (Z) | mm | 600 | 600 |
X/Z-axis feed speed | mm/min | 0.1-1000 | 0.1-1000 |
X/Z-axis rapid feed speed | m/min | 16/12 | 10/15 |
Tool post type | - | H8 | Gang-type/V4 |
Tool section size | mm | 32x32 | 32x32 |
X/Z-axis positioning accuracy | mm | 0.006 | 0.01 |
X/Z-axis repositioning accuracy | mm | 0.008 | 0.008 |
Main motor power | kw | 18.5/22 | 15/18.5 |
X-axis feed motor power | kw | 2 | 2.3 |
Z-axis feed motor power | kw | 3 | 2.3 (brake) |
X/Z-axis feed motor torque | NM | 10 | 15 |
Machine weight | kg | 5000 | 5500 |
Positive Comments From Customers
Company Introduction

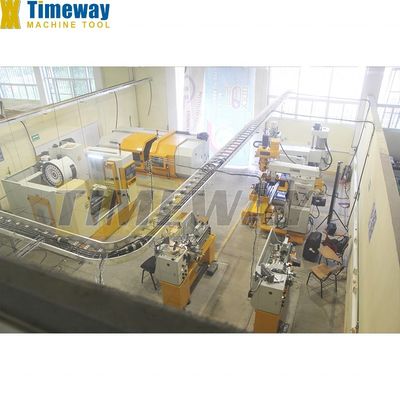

Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
