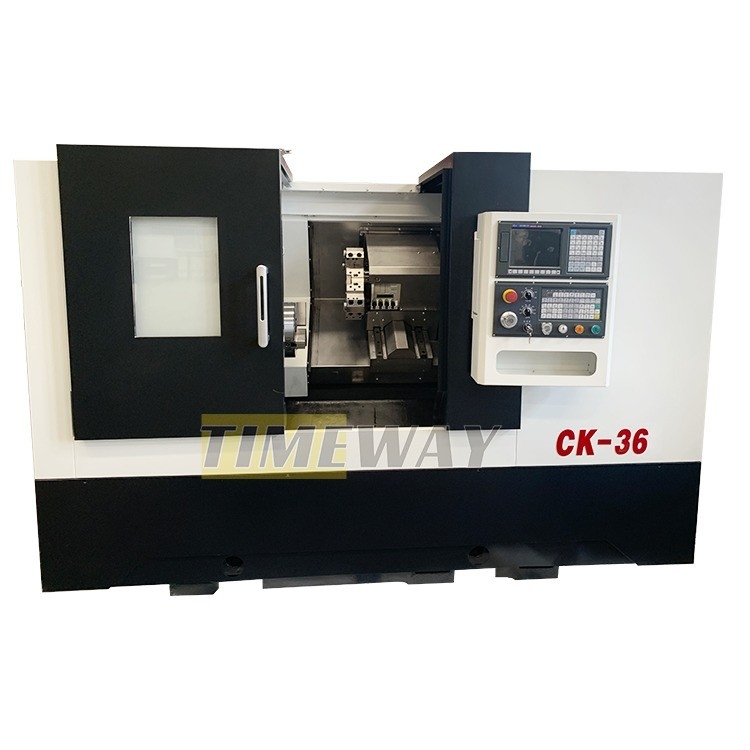

Multifunctional Slant Bed Type CNC Lathe Machine with Max. Spindle Speed of 3000 r.p.m
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | CK-36 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $19,580.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 500 |
|---|---|---|---|
| Structure: | Slant Bed Lathe | Machining Capacity: | Light Duty |
| Width Of Bed (mm): | 390 Mm | Spindle Motor Power(kW): | 11 |
| No. Of Spindles: | Single | Number Of Axes: | 3 |
| Travel (X Axis)(mm): | 230 Mm | Travel (Z Axis)(mm): | 600 Mm |
| Positioning Accuracy (mm): | ±0.001 | Repeatability (X/Y/Z) (mm): | ±0.002 |
| Dimension(L*W*H): | 2900*1800*1750 | Voltage: | 220V |
| CNC Control System: | FANUC | Tool Post Stations: | 8 |
| Weight (KG): | 3200 | Warranty: | 1 Year |
| Key Selling Points: | Automatic | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| CNC Or Not: | CNC Lathe Machine | Product Name: | Cnc Slant Lathe Machine |
| Keyword: | Cnc Metal Lathe Machine | Function: | Machining Metal |
| Product Type: | Economical CNC Lathe | Name: | Metal Cnc Lathe |
| Precision: | High Precision Machine | Control System: | SIEMENS GSK FANUC (optional) |
| Application: | Metal Turning Milling Drilling | Key Word: | Slant Bed Lathe CNC Machine |
| Condition: | New | Toolpost Brand: | Hongda |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant | Showroom Location: | None |
| Marketing Type: | Hot Product 2019 | Core Components: | Motor, Pump |
| Year: | 2023 | Max. Spindle Speed (r.p.m): | 3000 R.p.m |
| Spindle Bore(mm): | 62 | Port: | China Port |
Product Description
Products Description
Slant bed CNC lathe
Technical Parameter
SPECIFICATION | UNIT | CK-32 | CK-36 | CK-45 | ||
Max. swing over bed | mm | 420 | 550 | 500 | ||
Max. swing over cross slide | mm | 220 | 220 | 220 | ||
Standard turning diameter | mm | 210 | 210 | 210 | ||
Max.turning diameter | mm | 320 | 360 | 360 | ||
Max.turning length | mm | 350 | 500 | 750 | ||
Spindle speed | rpm | 3500 | 3000 | 2500 | ||
Spindle nose | A2-5 | A2-6 | A2-6 | |||
Spindle bore | mm | 56 | 62 | 66 | ||
Hydraulic chuck size | mm | 160 | 200 | 200 | ||
Cross travel (X) | mm | 210 | 230 | 220 | ||
Longitudinal travel (Z) | mm | 450 | 600 | 850 | ||
X/Z-axis rapid feed speed | m/min | 20/12 | 24/24 | 20/20 | ||
Hydraulic cool post type | 80-8T | 80-8T | 80-8T | |||
Tool section size | mm | 25×25/32 | 25x25/32 | 25x25/32 | ||
Tailstock quill diameter | mm | 52 | 110 | 110 | ||
Tailstock quill travel | mm | 60 | 100 | 100 | ||
Tailstock quill taper | MT4 | MT5 | MT4 | |||
Bed structure | 45° Integral bec | |||||
Guideway type | Linear/Sliding | |||||
Main motor power | kw | 7.5 | 11 | 7.5 | ||
Power supply | kva | 30 | 25 | 30 | ||
Machine dimensions (LxWxH) | mm | 2600x1800x1600 | 2900x1800x1750 | 2900x1800x1600 | ||
Machine weight | kg | 2700 | 3200 | 3200 | ||
Standard accessories: Optional accessories:
FANUC Hydraulic chuck Hydraulic turret Hydraulic tailstock Electronic handwheel Lubrication system Cooling system Work lamp Pilot lamp Full protection guard Heat exchanger Chip conveyor Leveling blocks & bolts Tools & tool-box Operation manuals | SIEMENS CNC system Hydraulic hollow chuck Air conditioner Tool setter Chip conveyor |

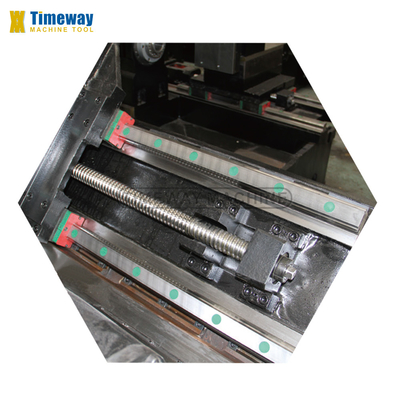

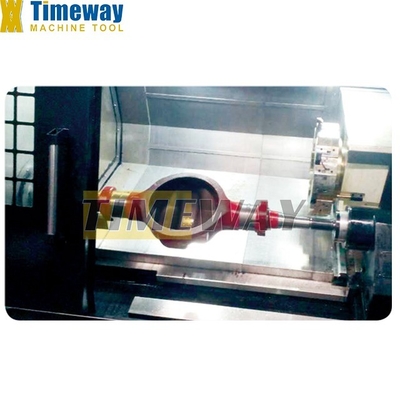

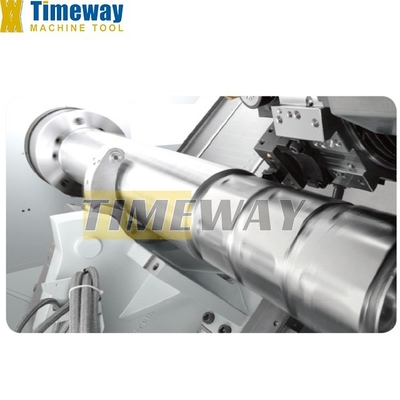

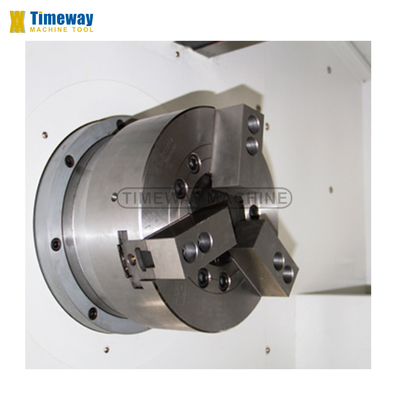

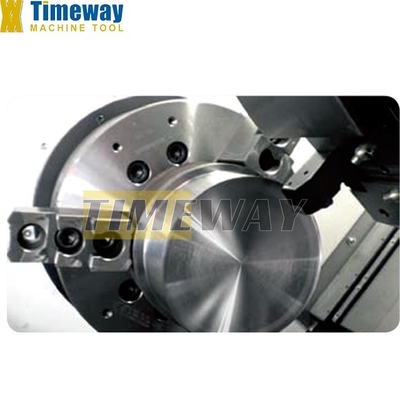

Detail Images
